Accessories
Our original accessories provide you with high-quality items to optimise the performance of your Huber temperature control unit. You will find the right item in our extensive range: From adapters & distributors to bath vessels and regulators to thermofluids.
The model and category selection below will help you quickly find the product you need.
Holder for immersion coolers
TC45/-E, TC100/-E
for mounting on bath
Control panel extension cable for Pilot ONE for using the controller as remote control (without RS232), length 3m
(Using #16160 as remote control does not allow communication via RS232. If required, please use #56196.)
Hose for cooling water PZ-90-1-G1/2
HDPE with Braiding
Temperature range: -20°C...90°C
Length: 100 cm
Connection: G1/2
Max. pressure at 20°C: 10 bar
Internal diameter: 15 mm
Hose for cooling water PZ-90-1,5-G1/2
HDPE with Braiding
Temperature range: -20°C...90°C
Length: 150 cm
Connection: G1/2
Max. pressure at 20°C: 10 bar
Internal diameter: 15 mm
Hose for cooling water PZ-90-2-G1/2
HDPE with Braiding
Temperature range: -20°C...90°C
Length: 200 cm
Connection: G1/2
Max. pressure at 20°C: 10 bar
Internal diameter: 15 mm
Hose for cooling water PZ-90-1-G3/4
HDPE with Braiding
Temperature range: -20°C...90°C
Length: 100 cm
Connection: G3/4
Max. pressure at 20°C: 10 bar
Internal diameter: 20 mm
Hose for cooling water PZ-90-1,5-G3/4
HDPE with Braiding
Temperature range: -20°C...90°C
Length: 150 cm
Connection: G3/4
Max. Pressure at 20°C: 10 bar
Internal diameter: 20 mm
Hose for cooling water PZ-90-2-G3/4
HDPE with Braiding
Temperature range: -20°C...90°C
Length: 200 cm
Connection: G3/4
Max. pressure at 20°C: 10 bar
Internal diameter: 20 mm
Hose for cooling water PZ-90-1-G1
HDPE with Braiding
Temperature range: -20°C...90°C
Length: 100 cm
Connection: G1
Max. pressure at 20°C: 10 bar
Internal diameter: 25 mm
Hose for cooling water PZ-90-1,5-G1
HDPE with Braiding
Temperature range: -20°C...90°C
Length: 150 cm
Connection: G1
Max. pressure at 20°C: 10 bar
Internal diameter: 25 mm
Hose for cooling water PZ-90-2-G1
HDPE with Braiding
Temperature range: -20°C...90°C
Length: 200 cm
Connection: G1
Max. pressure at 20°C: 10 bar
Internal diameter: 25 mm
Polycarbonate bath 130A
Bath opening (WxD): 480x180 mm
Bath depth: 312 mm
Bath volume: 30 l
Dimensions (WxDxH): 500x200x322 mm
Insulated sleeving internal-Ø 22mm
13mm thick
Hose for cooling water PZ-90-1-G1 1/4"
HDPE with Braiding
Temperature range: -20°C...90°C
Length: 100 cm
Connection: G1 1/4
Max. pressure at 20°C: 6 bar
Internal diameter: 32 mm
Hose for cooling water PZ-90-1,5-G1 1/4"
HDPE with Braiding
Temperature range: -20°C...90°C
Length: 150 cm
Connection: G1 1/4
Max. pressure at 20°C: 6 bar
Internal diameter: 32 mm
Hose for cooling water PZ-100-2-G1 1/4"
HDPE with Braiding
Temperature range: -20°C...90°C
Length: 200 cm
Connection: G1 1/4
Max. pressure at 20°C: 6 bar
Internal diameter: 32 mm
Insulated sleeving internal-Ø 28mm
13mm thick
Bath cover one piece 212B, 215B, K12, K15 - Bath cover front 220B, 225B, K20, K25
Bath cover one piece 220B, 225B, K20, K25
Pump adaptor cpl.
for KISS E, CC-E and with baths 106A to 118A
incl. hose connectors NW12
Pump adaptor cpl.
for KISS E, CC-E and baths 208B to 225B and K12 to K25
incl. hose connectors NW12
Hose connections 3/4" female to 1/2"
Polycarbonate bath 112A
Bath opening (WxD): 303x342 mm
Bath depth: 150 mm
Bath volume: 12 l
Dimensions (WxDxH): 333x358x166 mm
Polycarbonate bath 118A
Bath opening (WxD): 303x502 mm
Bath depth: 150 mm
Bath volume: 18 l
Dimensions (WxDxH): 333x518x166 mm
Polycarbonate bath 106A
Bath opening (WxD): 130x290 mm
Bath depth: 150 mm
Bath volume: 6 l
Dimensions (WxDxH): 142x305x161 mm
Polycarbonate bath 108A
Bath opening (WxD): 130x390 mm
Bath depth: 150 mm
Bath volume: 8 l
Dimensions (WxDxH): 142x405x161 mm
Polycarbonate bath 110A
Bath opening (WxD): 130x490 mm
Bath depth: 150 mm
Bath volume: 10 l
Dimensions (WxDxH): 142x505x161 mm
Cooling coil cpl. for KISS E and CC-E with baths 104A to 118A
Cooling coil cpl.
for KISS E, CC-E with baths 208B to 225B
Com.G@te internal
Petite Fleur, Grande Fleur, Chili, Unichillers with Pilot ONE, Ministats, CC-300BX to CC-906w
The Com.G@te has connections complying with the NAMUR standard. The following interfaces are integrated: RS232 (bi-directional), RS485 (bi-directional), ECS external control signal, Volt free contact (programmable), AIF Analogue-Interface 0/4-20 mA or 0-10 V (bi-directional).
For easy filling of the temperature control unit with heat transfer fluid directly from the canister.
With drain valve, 23 mm, ventilated.
Displacement insert CC-308B
Dimensions: 124 x 98 x 141 mm (L x W x H)
Hose, pressureless, FKM NW12
Temperature range: -20°C...180°C
Length: variable
Max. pressure at 20°C: low pressure
Internal diameter: 12 mm
Material: FKM
Temperature sensor PT100, M38x1.5, for fluid outlet or return
M30x1,5 female thread to M38x1,5 male thread
Ball valve, M24x1,5
Temperature range: -10°C ... +180°C (max. 6 bar bei +180°C)
M24x1,5 female thread to M24x1,5 male thread
Manually adjustable bypass M24x1,5
for Unistats (bench top)
Temperature range: -10°C ... 150°C, insulated.
The bypass is easily bendable.
M24x1,5 male thread to M30x1,5 female thread
Hose MT-350-1-M24x1,5
Metal
min. temp.: -100°C; max. temp.: 350°C
length: 100 cm; connection: M24x1,5
nominal width: 12 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps.
Hose MT-350-1,5-M24x1,5
Metal
min. temp.: -100°C; max. temp.: 350°C
length: 150 cm; connection: M24x1,5
nominal width: 12 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps.
Hose MT-350-2-M24x1,5
Metal
min. temp.: -100°C; max. temp.: 350°C
length: 200 cm; connection: M24x1,5
nominal width: 12 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps.
Hose MT-350-3-M24x1,5
Metal
min. temp.: -100°C; max. temp.: 350°C
length: 300 cm; connection: M24x1,5
nominal width: 12 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps.
M30x1,5 female thread to R1/2 male thread
Hose K-260-1-M24x1,5
industrial plastic material hose with Braiding
Temperature range: -60°C...260°C
Length: 100 cm
Connection: M24x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 12 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps.
Hose K-260-1,5-M24x1,5
industrial plastic material hose with Braiding
Temperature range: -60°C...260°C
Length: 150 cm
Connection: M24x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 12 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps.
Hose K-260-2-M24x1,5
industrial plastic material hose with Braiding
Temperature range: -60°C...260°C
Length: 200 cm
Connection: M24x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 12 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps.
Hose K-260-3-M24x1,5
industrial plastic material hose with Braiding
Temperature range: -60°C...260°C
Length: 300 cm
Connection: M24x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 12 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps.

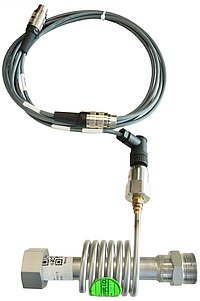

External pressure sensor M30x1,5
for VPC bypass
(Connection on VPC)
External pressure sensor M38x1,5
for VPC bypass
(Connection on VPC)

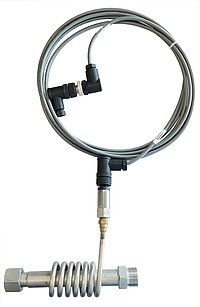

External pressure sensor M24x1,5
for VPC bypass
(Connection on VPC)
Manually adjustable bypass M24x1,5
for Unistats (tower housing)
Temperature range: -20°C ... 150°C, insulated.
The bypass is easily bendable.
Manually adjustable bypass M38x1,5
for Unistats
Temperature range: -20°C ... 150°C, insulated.
The bypass is easily bendable.
Calibration insert CC-308B
Also required: #9608
Manually adjustable bypass G1 1/4
for Unichiller
Temperatur range: -20°C ... 150°C, insulated.
The bypass is easily bendable.
Hose, pressureless, S-180-NW6
Silicon
min. temp.: -40°C; max. temp.: 180°C
nominal width: 6 mm
Silicon hoses are not suitable for heat transfer fluids which contain Silicon.
Please check the safety data sheet of the planned heat transfer fluid before using it.
Control cable ECS
standby - open end (standard : 3 meter)

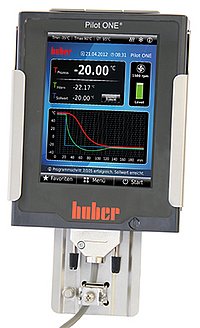

Wall bracket for controller Pilot ONE and CC-Pilot
E-grade "Exclusive"
Upgrade package with the following additional features
(compared to E-grade "Basic"):
- Temperature control mode (Internal/Process)
- Process data logging direct to USB stick
- Display resolution 0,01°C
- Programmer with 3 programs (max. 15 steps)
- Ramp function (linear)
- TAC (True Adaptive Control)
- Saving/loading via USB
(package: 2)
E-grade "Professional"
Upgrade package with the following additional features
(compared to E-grade "Basic"):
- Temperature control mode (Internal/Process)
- Process data logging direct to USB stick
- Display resolution 0,01°C
- TAC (True Adaptive Control)
- Saving/loading via USB
- Programmer with 10 programs (max. 100 steps)
- Calendar start
- Ramp function (linear and non-Linear)
- User menus can be customised (Administrator Level)
- 2nd set point
(package: 3)
PS level controller
- for external open baths
- only suitable for units with pressure- and sucction pump
The installation manual can be downloaded from our website www.huber-online.com.
Holder ubbelohde viscosimeter for Visco 3
Trolley for Ministat 125/w, Minichiller 280/w, Minichiller 300/w
Hose MT-200-1-M16x1
Metal
Temperature range: -50...200°C
Length: 100 cm
Connection: M16x1
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps
Hose MT-200-1,5-M16x1
Metal
Temperature range: -50°C...200°C
Length: 150 cm
Connection: M16x1
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps
Hose MT-200-2-M16x1
Metal
Temperature range: -50°C...200°C
Length: 200 cm
Connection: M16x1
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps
Hose MT-200-3-M16x1
Metal
Temperature range: -50°C...200°C
Length: 300 cm
Connection: M16x1
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps
Hose K-260-1-M30x1,5
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 100 cm
Connection: M30x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 20 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps
Hose K-260-1,5-M30x1,5
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 150 cm
Connection: M30x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 20 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps
Hose K-260-2-M30x1,5
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 200 cm
Connection: M30x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 20 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps
Hose K-260-3-M30x1,5
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 300 cm
Connection: M30x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 20 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps
Hose K-260-1-M38x1,5
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 100 cm
Connection: M38x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 25 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps
Hose K-260-1,5-M38x1,5
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 150 cm
Connection: M38x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 25 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps
Hose K-260-2-M38x1,5
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 200 cm
Connection: M38x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 25 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps
Hose K-260-3-M38x1,5
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 300 cm
Connection: M38x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 25 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps
Manually adjustable bypass G1 1/4 with connection for manometer, for Unichiller
Temperature range: -20°C ... 150°C, insulated.
For this bypass one of the following pressure gauges must be ordered separately:
Manometer 0-1 bar #64190
Manometer 0-2.5 bar #64189
Manometer 0-4 bar #54398
Manometer 0-10 bar #54399
The bypass is easily bendable..
External calibration bath Unical 700
operating temperature range: -100...300 °C
temperature stability at -10°C: 0,002 K
pump connection: M30X1,5
dimension (WxDXH): 300x300x566 mm
width with overflow vessel: 440 mm
bath opening (Ø x H): 118 x 385 mm
bath volume: 7 liter
connections: M30x1,5
following bath covers are available:
- PTFE, -100...200°C, #6365
- Stainless steel, -100...300°C, #6367
- PE plastic, #6366
Heat transfer fluid M10.120.08
Temperature range for:
- open/closed systems: -10°C...120°C
Material: synthetic oil
Colour: colourless, clear
Viscosity at 25°C: 8 mm²/s
Can: 5 l
Not suitable for use with Unichillerss
Heat transfer fluid M10.120.08
Temperature range for:
- open/closed systems: -10°C...120°C
Material: synthetic oil
Colour: colourless, clear
Viscosity at 25°C: 8 mm²/s
Can: 10 l
Not suitable for use with Unichillers
Stepless controlled VPC bypass M30x1,5 (not mounted on unit) for Unistats
temperature range: -90°C ... 200°C
VPC Bypass G 1 1/4
incl. t-piece
for Unichiller with connection G 1 1/4
max. differential pressure 6 bar.
The bypass is not fitted.
Installation to unit is only possible with HUBER hose for cooling water G1 1/4.
temperature range: -90°C ... 200°C
VPC Bypass G 3/4
incl. t-piece
for Unichiller with connection G 3/4
max. differential pressure 6 bar.
The bypass is not fitted.
Installation to unit is only possible with HUBER hose for cooling water G3/4.
temperature range: -90°C ... 200°C
Algae protection 0,1 ltr
- Delivery only within Germany -
Bath cover isolated, for stainless steel bath tank 5.5 liters (#6052)
Bath cover isolated, for stainless steel bath tank 11 liters (#6053)
Bath cover isolated, for stainless steel bath tank 22 liters (#6054)
M16x1 female thread to M16x1 male thread
Cable compatible control: CC RS232 / PC
RS232 (3m)
Sensor open in protective pipe Ø 8 mm
170 mm (standard cable length 1,5 m)
Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffi "-L" to the order number).
Available options (at additional cost):
- inlet and outlet connections into the bath (direct temperature control)
- inlet and outlet connections into the double-wall (indirect temperature control)
Trolley for CC-415/wl, CC-505/wl, CC-508/w, CC-805
Hose MT-350-3-M16x1
Metal
Temperature range: -100°C...350°C
Length: 300 cm
Connection: M16x1
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps
Heat transfer fluid M90.055/170.02
Temperature range for:
- open/closed systems: -90°C...55°C
- Unistats (only closed): -90°C...170°C
Material: silicon oil
Colour: colourless, clear
Viscosity at 25°C: 2 mm²/s
Can: 5 l
Heat transfer fluid M90.055/170.02
Temperature range for:
- open/closed systems: -90°C...55°C
- Unistats (only closed): -90°C...170°C
Material: silicon oil
Colour: colourless, clear
Viscosity at 25°C: 2 mm²/s
Can: 10 l
Trolley Unistat 705, 705w, 410w
additional height: 7,05 cm
Heat transfer fluid M80.100/250.03
Temperature range for:
- open/closed systems: -80°C...100°C
- Unistats (only closed): -80°C...250°C
Material: silicon oil
Colour: colourless, clear
Viscosity at 25°C: 7 mm²/s
Can: 5 l
Heat transfer fluid M80.100/250.03
Temperature range for:
- open/closed systems: -80°C...100°C
- Unistats (only closed): -80°C...250°C
Material: silicon oil
Colour: colourless, clear
Viscosity at 25°C: 7 mm²/s
Can: 10 l
Extension cable with plug & connection,
(Lemosa)/length 3m standard
Displacement insert CC-410, CC-410wl
Dimensions: 275 x 275 x 189 mm (L x W x H)
Calibration insert CC-410, CC-410wl
Also required: #9609
Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffi "-L" to the order number).
Available options (at additional cost):
- inlet and outlet connections into the bath (direct temperature control)
- inlet and outlet connections into the double-wall (indirect temperature control)
Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffi "-L" to the order number).
Available options (at additional cost):
- inlet and outlet connections into the bath (direct temperature control)
- inlet and outlet connections into the double-wall (indirect temperature control)
Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffi "-L" to the order number).
Available options (at additional cost):
- inlet and outlet connections into the bath (direct temperature control)
- inlet and outlet connections into the double-wall (indirect temperature control)
Drain hose, pressureless, T-180-NW8
PTFE
Temperature range: -60°C...180°C
Nominal width: 8 mm
Drain hose, pressureless, T-180-NW12
PTFE
Temperature range: -60°C...180°C
Nominal width: 12 mm
Temperature sensor PT100, M16x1, for fluid outlet or return
Temperature sensor PT100, M16x1, for fluid outlet or return, double
Temperature sensor PT100, G1/2", for fluid outlet or return, double
Bath cover PTFE Unical 700, CAL 1-4, Unical 1
Bath cover PE Unical 700, CAL 1-4, Unical 1
Insulated sleeving internal-Ø 42mm,
thick 22mm
Insulated sleeving internal-Ø 48mm,
thick 22mm
Insulated sleeving internal-Ø 57mm,
thick 23mm
Hose MT-350-1,5-M30x1,5
Metal
min. temp.: -100°C; max. temp.: 350°C
length: 150 cm; connection: M30x1,5
nominal width: 20 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps.
Insulated sleeving / f. tube NW12
internal-Ø 17 mm 12mm thick, price per meter
Adjustable base for 220B, 225B, K20, K25, 118A
Adjustable base for 212B, 215B, K12, K15
Bath cover one piece 212B, 215B, K12, K15
suitable for use with adjustable base #40763
Bath cover back 118A, 220B, 225B, K20, K25
suitable for use with adjustable base #40681
Bath cover one piece 112A
suitable for use with adjustable base #40764
Stainless Steel Bath (insulated) 215B
Width bath opening WxD: 290x320 mm
Bath depth: 200 mm
Bath volume: 15 l
Overall dimensions WxDxH: 350x375x256 mm
All Stainless Steel Baths are designed to operate up to a maximum temperature of +200°C.
Stainless Steel Bath (insulated) 225B
Width bath opening WxD: 290x500 mm
Bath depth: 200 mm
Bath volume: 25 l
Overall dimensions WxDxH: 350x555x256 mm
All Stainless Steel Baths are designed to operate up to a maximum temperature of +200°C.
Bath cover back 118A, 220B, 225B, K20, K25
Drain valve
for polycarbonate baths 112A, 118A, 130A
connection screw M12x1.5
Test tube rack type A made of polycarbonate for 106A to 110A, Immersion depth 50 mm, Bore holes 12 x Ø22
Test tube rack type B made of polycarbonate for 106A to 110A, Immersion depth
55 mm, Bore holes 20 x Ø17
Test tube rack type C made of polycarbonate for 106A to 110A, Immersion depth 95 mm, Bore holes 20 x Ø17
Test tube rack type D made of polycarbonate for 106A to 110A, Immersion depth 45 mm (Hemolyses), Bore holes 30 x Ø13
Test tube rack type E made of polycarbonate for 106A to 110A, Immersion depth 50 mm, Bore holes 6 x Ø30
Test tube rack type F made of polycarbonate for 106A to 110A,
Immersion depth 25 mm (Eppendorf),
Bore holes 36 x Ø11
A breather controller is available as an accessory for our Unistats. This allows to realise an inert gas overlay of the thermal fluid in the expansion vessel. Advantages of the breather controller are a longer life-time of the heat transfer fluid as a result of the reduced oxidation as well as an extended temperature range. The breather control limits the pressure and consists of the atmospheric sealing kit comprising of the following parts on a mounting plate:
- Atmosperic sealing kit
- Pressure regulator 20-200mbar
- Safety valve 200 mbar opening
- Bubble counter
- Connection hose
- Max. pressure 1 bar
- Connection: G1/2
Unit not suitable for outdoor installation - can not be installed in a closed room (room must be adequately ventilated).
Calibration bend M30x1,5 with sensor pocket for sensor Ø 6 mm / length 165 mm
Female thread on short side
External pressure sensor M16x1
for VPC variable speed pump
(Com.G@te required)
External pressure sensor M24x1,5
for VPC variable speed pump
(Com.G@te required)
External pressure sensor M30x1,5
for VPC variable speed pump
(Com.G@te required)
Temperature sensor PT100, M24x1,5, for fluid outlet or return
Stepless controlled VPC bypass M24x1,5 (not mounted on unit) for Unistats
temperature range: -90°C ... 200°C
Stepless controlled VPC bypass M38x1,5 (not mounted on unit) for Unistats
temperature range: -90°C ... 200°C
Temperature sensor PT100, G1 1/4", for fluid outlet or return
Test tube rack type 1 made of stainless steel
for 112A, 118A, 212B to 225B and K12 to K25
Immersion depth 100 mm
Bore holes 36 x Ø18
Test tube rack type 2 made of stainless steel
for 112A, 118A, 212B to 225B and K12 to K25
Immersion depth 70 mm
Bore holes 45 x Ø13
Test tube rack type 3 made of stainless steel
for 112A, 118A, 212B to 225B and K12 to K25
Immersion depth 100 mm
Bore holes 46 x Ø18
Test tube rack type 4 made of stainless steel
for 112A, 118A, 212B to 225B and K12 to K25
Immersoin depth 70 mm
Bore holes 58 x Ø13
Displacement insert CC-205B
Dimensions: 100 x 85 x 133 mm (L x W x H)
Displacement insert CC-315B
Dimensions: 260 x 135 x 185 mm (L x W x H)
Displacement insert CC-510w, CC-515w, CC-520, CC-520w, CC-525w, CC-820, CC-820w
Dimensions: 265 x 145 x 185 mm (L x W x H)
Displacement insert CC-510, CC-515, CC-905, CC-905w, CC-906w
Dimensions: 245 x 240 x 189 mm (L x W x H)
Stainless steel tank 5,5 ltr/210x282x205mm
standart dimensions
drain point on short side
Stainless steel tank 11 ltr / 250x420x205mm
standart dimensions
drain point on short side
Stainless steel tank 22 ltr / 370x520x205mm
standart dimensions
drain point on short side
Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffi "-L" to the order number).
Available options (at additional cost):
- inlet and outlet connections into the bath (direct temperature control)
- inlet and outlet connections into the double-wall (indirect temperature control)
Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffi "-L" to the order number).
Available options (at additional cost):
- inlet and outlet connections into the bath (direct temperature control)
- inlet and outlet connections into the double-wall (indirect temperature control)
Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffi "-L" to the order number).
Available options (at additional cost):
- inlet and outlet connections into the bath (direct temperature control)
- inlet and outlet connections into the double-wall (indirect temperature control)
Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffi "-L" to the order number).
Available options (at additional cost):
- inlet and outlet connections into the bath (direct temperature control)
- inlet and outlet connections into the double-wall (indirect temperature control)
Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffi "-L" to the order number).
Available options (at additional cost):
- inlet and outlet connections into the bath (direct temperature control)
- inlet and outlet connections into the double-wall (indirect temperature control)
Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffi "-L" to the order number).
Available options (at additional cost):
- inlet and outlet connections into the bath (direct temperature control)
- inlet and outlet connections into the double-wall (indirect temperature control)
Sensor: closed, external
D: 8 mm, 400mm
cable: 1.5 m
Hose, pressureless, PVC-60-NW12
PVC
Temperature range: -20°C...60°C
Nominal width: 12 mm
Hose, pressureless, PVC-60-NW8 PVC
Temperature range: -20°C...60°C
Nominal width: 8 mm
hose, pressureless, PVC NW3,2
Temperature range: -20°C...60°C
Length: variable
Max. pressure at 20°C: low pressure
Internal diameter: 3,2 mm
Material: PVC
Hose, pressureless, NBR NW12
Temperature range: -25°C...110°C
Length: variable
Max. pressure at 20°C: low pressure
Internal diameter: 12 mm
Material: NBR
Hose, pressureless, NBR NW8
Temperature range: -25°C...110°C
Length: variable
Max. pressure at 20°C: low pressure
Internal diameter: 8 mm
Material: NBR
Hose, pressureless, S-180-NW12
Silicon
min. temp.: -40°C; max. temp.: 180°C
nominal width: 12 mm
Silicon hoses are not suitable for heat transfer fluids which contain Silicon.
Please check the safety data sheet of the planned heat transfer fluid before using it.
Hose, pressureless, S-180-NW8
Silicon
min. temp.: -40°C; max. temp.: 180°C
nominal width: 8 mm
Silicon hoses are not suitable for heat transfer fluids which contain Silicon.
Please check the safety data sheet of the planned heat transfer fluid before using it.
hose, pressureless, FKM NW8
Temperature range: -20°C...180°C
Length: variable
Max. pressure at 20°C: low pressure
Internal diameter: 8 mm
Material: FKM
Hose MT-350-1-M16x1
Metal
Temperature range: -100°C...350°C
Length: 100 cm
Connection: M16x1
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps
Hose MT-350-1,5-M16x1
Metal
Temperature range: -100°C...350°C
Length: 150 cm
Connection: M16x1
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps
Ball valve M16x1
Temperature range: -20°C ... +90°C
(max. 6 bar at +90°C)
Sensor : closed Ø 6 mm, 200 mm
with hand grip (standart cable length 1,5 m)
Calibration insert CC-315B
Also required: #9608
Hose MT-350-2-M16x1
Metal
Temperature range: -100°C...350°C
Length: 200 cm
Connection: M16x1
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicon hose, ends covered with silicon caps
Sensor: closed, external
D: 6 mm, 180mm
cable: 1.5 m
RS232 control cable
from: Huber-Unit / Com.G@te, 9 pin Sub-D plug (male)
to: PC / Notebook, 9 pin Sub-D socket (female)
Length 3m
Calibration insert CC-510, CC-515, CC-905, CC-905w, CC-906w
Also required: #9609
Float switch in sight glass Unistat
for extended safety, with cable and connector plug
for level socket on Com.G@te #6915
Heat transfer fluid P20.190.40
Temperature range for:
- open/closed systems: 20°C...190°C
Material: mineral oil
Colour: light yellow
Viscosity at 25°C: 40 mm²/s
Can: 5 l
Heat transfer fluid P20.190.40
Temperature range for:
- open/closed systems: 20°C...190°C
Material: mineral oil
Colour: light yellow
Viscosity at 25°C: 40 mm²/s
Can: 20 l
Heat transfer fluid P20.225/275.50
Temperature range for:
- open/closed systems: 20°C...225°C
- Unistats (only closed): 20°C...275°C
Material: silicon oil
Colour: colourless, clear
Viscosity at 25°C: 50 mm²/s
Can: 5 l
Heat transfer fluid P20.225/275.50
Temperature range for:
- open/closed systems: 20°C...225°C
- Unistats (only closed): 20°C...275°C
Material: silicon oil
Colour: colourless, clear
Viscosity at 25°C: 50 mm²/s
Can: 10 l
Heat transfer fluid M20.195/235.20
Temperature range for:
- open/closed systems: -20°C...195°C
- Unistats (only closed): -20°C...235°C
Material: silicon oil
Colour: colourless, clear
Viscosity at 25°C: 20 mm²/s
Can: 5 l
Heat transfer fluid M20.195/235.20
Temperature range for:
- open/closed systems: -20°C...195°C
- Unistats (only closed): -20°C...235°C
Material: silicon oil
Colour: colourless, clear
Viscosity at 25°C: 20 mm²/s
Can: 10 l
Heat transfer fluid M40.165/220.10
Temperature range for:
- open/closed systems: -40°C...165°C
- Unistats (only closed): -40°C...220°C
Material: silicon oil
Colour: colourless, clear
Viscosity at 25°C: 10 mm²/s
Can: 5 l
Heat transfer fluid M40.165/220.10
Temperature range for:
- open/closed systems: -40°C...165°C
- Unistats (only closed): -40°C...220°C
Material: silicon oil
Colour: colourless, clear
Viscosity at 25°C: 10 mm²/s
Can: 10 l
Heat transfer fluid M60.115/200.05
Temperature range for:
- open/closed systems: -60°C...115°C
- Unistats (only closed): -60°C...200°C
Material: silicon oil
Colour: colourless, clear
Viscosity at 25°C: 5 mm²/s
Can: 5 l
Heat transfer fluid M60.115/200.05
Temperature range for:
- open/closed systems: -60°C...115°C
- Unistats (only closed): -60°C...200°C
Material: silicon oil
Colour: colourless, clear
Viscosity at 25°C: 5 mm²/s
Can: 10 l
Heat transfer fluid M80.055.03
Temperature range for:
- open/closed systems: -80°C...55°C
Material: silicon oil
Colour: colourless, clear
Viscosity at 25°C: 3 mm²/s
Can: 5 l
Heat transfer fluid M80.055.03
Temperature range for:
- open/closed systems: -80°C...55°C
Material: silicon oil
Colour: colourless, clear
Viscosity at 25°C: 3 mm²/s
Can: 10 l
Temperature range depends on mixing ratio
Material: Monoethylenglycol, concentrate
Mixing ratio: 50% MEG / 50% water
Colour: light yellow, clear
Viscosity at 25°C: approx. 2 mm²/s
Can: 10 l
Temperature range depends on mixing ratio
Material: Monoethylenglycol, concentrate
Mixing ratio: 50% MEG / 50% water
Colour: light yellow, clear
Viscosity at 25°C: approx. 2 mm²/s
Can: 50 l
Bypass M16x1 for Unistat, bench top
Temperature range: -20°C ... 140°C
