配件
订货号: 10005
Calibration bend M24x1,5 with sensor pocket for sensor Ø 6 mm / length 160 mm
更多
Calibration bend M24x1,5 with sensor pocket for sensor Ø 6 mm / length 160 mm
订货号: 10020
Also required: Hose #9609
更多
Also required: Hose #9609
订货号: 10067
Thickness: 19 mm
Internal diameter: 19 mm
Sold per meter
更多
Thickness: 19 mm
Internal diameter: 19 mm
Sold per meter
订货号: 10068
Thickness: 19 mm
Internal diameter: 28 mm
Sold per meter
更多
Thickness: 19 mm
Internal diameter: 28 mm
Sold per meter
订货号: 10069
Thickness: 19 mm
Internal diameter: 35 mm
Sold per meter
更多
Thickness: 19 mm
Internal diameter: 35 mm
Sold per meter
订货号: 10070
Thickness: 19 mm
Internal diameter: 42 mm
Sold per meter
更多
Thickness: 19 mm
Internal diameter: 42 mm
Sold per meter
订货号: 10072

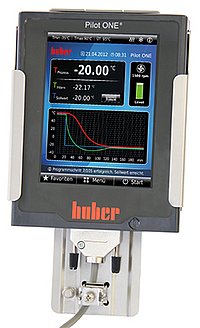

Mounting bracket for mounting the Pilot ONE wall bracket at the side of the device
更多
Mounting bracket for mounting the Pilot ONE wall bracket at the side of the device
订货号: 10142
Temperature sensor Pt100, G3/4", for fluid outlet or return
更多
Temperature sensor Pt100, G3/4", for fluid outlet or return
订货号: 10153
Manually adjustable bypass M30x1,5 for Unistats
Extended temperature range: -60°C ... 200°C, non-insulated
The bypass is easily bendable.
更多
Manually adjustable bypass M30x1,5 for Unistats
Extended temperature range: -60°C ... 200°C, non-insulated
The bypass is easily bendable.
订货号: 10154
Manually adjustable bypass M16x1 for Unistats, benchtop models
Extended temperature range: -60°C ... 200°C, non-insulated
The bypass is easily bendable.
更多
Manually adjustable bypass M16x1 for Unistats, benchtop models
Extended temperature range: -60°C ... 200°C, non-insulated
The bypass is easily bendable.
订货号: 10155
Manually adjustable bypass M24x1,5 for Unistats
Extended temperature range: -60°C ... 200°C, non-insulated
The bypass is easily bendable.
更多
Manually adjustable bypass M24x1,5 for Unistats
Extended temperature range: -60°C ... 200°C, non-insulated
The bypass is easily bendable.
订货号: 10156
Manually adjustable bypass M38x1,5 for Unistats
Extended Temperature range: -60°C ... 200°C, non-insulated
The bypass is easily bendable.
更多
Manually adjustable bypass M38x1,5 for Unistats
Extended Temperature range: -60°C ... 200°C, non-insulated
The bypass is easily bendable.
订货号: 10157
Manually adjustable bypass G3/4 for Unichiller
Extended temperature range: -60°C ... 200°C, non-insulated
The bypass is easily bendable.
更多
Manually adjustable bypass G3/4 for Unichiller
Extended temperature range: -60°C ... 200°C, non-insulated
The bypass is easily bendable.
订货号: 10158
Manually adjustable bypass G1 1/4 for Unichiller
Extended temperature range: -60°C ... 200°C, non-insulated
The bypass is easily bendable.
更多
Manually adjustable bypass G1 1/4 for Unichiller
Extended temperature range: -60°C ... 200°C, non-insulated
The bypass is easily bendable.
订货号: 10243
CAN Switch for remote operation or external installation:
- distribution switch to connect multiple accessories simultaneously such as the ComG@te, External VPC-Bypass, etc.
- for the remote operation of Huber units
更多
CAN Switch for remote operation or external installation:
- distribution switch to connect multiple accessories simultaneously such as the ComG@te, External VPC-Bypass, etc.
- for the remote operation of Huber units
订货号: 10269
Manually adjustable bypass M30x1,5 with connection for manometer, for Unistats
Extended temperature range: -60°C ... 200°C, non-insulated
For this bypass one of the following pressure gauges must be ordered separately:
Manometer 0-1 bar #64191
Manometer 0-2,5 bar #64192
Manometer 0-4 bar #63933
Manometer 0-10 bar #64193
The bypass is easily bendable.
更多
Manually adjustable bypass M30x1,5 with connection for manometer, for Unistats
Extended temperature range: -60°C ... 200°C, non-insulated
For this bypass one of the following pressure gauges must be ordered separately:
Manometer 0-1 bar #64191
Manometer 0-2,5 bar #64192
Manometer 0-4 bar #63933
Manometer 0-10 bar #64193
The bypass is easily bendable.
订货号: 10295
Manually adjustable bypass M24x1,5 with connection for manometer for Unistats
Extended temperature range: -60°C ... 200°C, non-insulated
For this bypass one of the following pressure gauges must be ordered separately:
Manometer 0-1 bar #64191
Manometer 0-2,5 bar #64192
Manometer 0-4 bar #63933
Manometer 0-10 bar #64193
The bypass is easily bendable.
更多
Manually adjustable bypass M24x1,5 with connection for manometer for Unistats
Extended temperature range: -60°C ... 200°C, non-insulated
For this bypass one of the following pressure gauges must be ordered separately:
Manometer 0-1 bar #64191
Manometer 0-2,5 bar #64192
Manometer 0-4 bar #63933
Manometer 0-10 bar #64193
The bypass is easily bendable.
订货号: 10312
Cooling water control valve for use on circulators with Pilot ONE controller. The control valve is connected to a cooliing coil, this can be controlled by the Pilot ONE.
Permissible temperature range: -20°C...+80°C
Max. pressure: 6 bar
Permitted medium: water/ water-MEG mixture
Protection class: IP20
Connection cooling circuit: hose connection 6mm / 8mm
Connection length: 1.8 m
Connection electrical: 15 pin Sub-D port (Pilot ONE)
1.) Heating bath circulators CC-202C, CC-205B, CC-304B, CC-308B and CC315B (cooling coil fitted as standard)
2.) Heating bath circulators CC-104A to CC-118A in combination with optional cooling coil #30554
3.) Wärme-Badthermostate CC-208B to CC-225B in combination with optional cooling coil #30564
4.) Huber devices with cooling coils NW6 or NW8
Please note that this is not suitable for use with KISS circulators!
更多
Cooling water control valve for use on circulators with Pilot ONE controller. The control valve is connected to a cooliing coil, this can be controlled by the Pilot ONE.
Permissible temperature range: -20°C...+80°C
Max. pressure: 6 bar
Permitted medium: water/ water-MEG mixture
Protection class: IP20
Connection cooling circuit: hose connection 6mm / 8mm
Connection length: 1.8 m
Connection electrical: 15 pin Sub-D port (Pilot ONE)
1.) Heating bath circulators CC-202C, CC-205B, CC-304B, CC-308B and CC315B (cooling coil fitted as standard)
2.) Heating bath circulators CC-104A to CC-118A in combination with optional cooling coil #30554
3.) Wärme-Badthermostate CC-208B to CC-225B in combination with optional cooling coil #30564
4.) Huber devices with cooling coils NW6 or NW8
Please note that this is not suitable for use with KISS circulators!
订货号: 10394
Remote control EEX Panel 15.0"
with stainless steel housing for wall mounting for Huber temperature control units with Pilot ONE
Explosion protection zones 1 and 21:
ATEX marking
- Gases/vapours: II 2G Ex db eb q [ib] IIC T4 Gb
- Dust: II 2D Ex tb IIIC T120 °C Db
IECEx marking
- Gases/vapours: Ex db eb q [ib] IIC T4 Gb
- Dust: Ex tb IIIC T120 °C Db
- Power Supply: AC 100-230V
- Protection class: IP54
- Weight: 55 kg
- Storage: 128 GB SSD hard disk space, 8 GB RAM memory
- Operating system: Windows 10 IoT LTSB 64-bit
- Software package: Remote software incl. licence key, SpyControl #66108 (optional)
- Ambient temperature range: 0 °C to 50 °C
- Ethernet cable, shielded, 25 m, CAT6
- Stainless steel housing with built-in POLARIS Panel PC 15" for wall mounting
- Housing material: stainless steel 1.4404
- Protection class: IP54
- Dimensions (W x D x H): 650 x 150 x 550 mm
更多
Remote control EEX Panel 15.0"
with stainless steel housing for wall mounting for Huber temperature control units with Pilot ONE
Explosion protection zones 1 and 21:
ATEX marking
- Gases/vapours: II 2G Ex db eb q [ib] IIC T4 Gb
- Dust: II 2D Ex tb IIIC T120 °C Db
IECEx marking
- Gases/vapours: Ex db eb q [ib] IIC T4 Gb
- Dust: Ex tb IIIC T120 °C Db
- Power Supply: AC 100-230V
- Protection class: IP54
- Weight: 55 kg
- Storage: 128 GB SSD hard disk space, 8 GB RAM memory
- Operating system: Windows 10 IoT LTSB 64-bit
- Software package: Remote software incl. licence key, SpyControl #66108 (optional)
- Ambient temperature range: 0 °C to 50 °C
- Ethernet cable, shielded, 25 m, CAT6
- Stainless steel housing with built-in POLARIS Panel PC 15" for wall mounting
- Housing material: stainless steel 1.4404
- Protection class: IP54
- Dimensions (W x D x H): 650 x 150 x 550 mm
订货号: 10406
Location: hose side
Temperature range: -90°C...230°C
Disconnect temperature: 20°C
Connection: M30x1,5
Material: 1.4404; HTF contact, 1.4571
Max. pressure at 20°C: 25 bar
Internal diameter: 20 mm
Temperature control units are usually connected to the application (e.g. reactor) using insulated temperature control hoses. If the applications on the temperature control unit need to be changed frequently, we recommend our quick-release couplings. The quick couplings meet the special requirements of temperature control technology and reliably prevent temperature control fluid from escaping. The quick couplings cause only low pressure losses and thus ensure good performance of the overall system.
If pressure-sensitive appliances are to be used for temperature control, we strongly recommend using the optionally available adapter #10417 to connect an operator-side pressure relief device in the application-side return line. This protects your glass apparatus from the risk of damage due to bursting.
Download: <a href="https://www.huber-online.com/fileadmin/user_upload/huber-online.com/download_center/Betriebsanleitungen/EAL_Schnellverschluss_Set_EN.pdf">Installation Guide</a>
Note: When using ethanol as heat transfer fluid: min. working temperature limit -60°C
更多
Location: hose side
Temperature range: -90°C...230°C
Disconnect temperature: 20°C
Connection: M30x1,5
Material: 1.4404; HTF contact, 1.4571
Max. pressure at 20°C: 25 bar
Internal diameter: 20 mm
Temperature control units are usually connected to the application (e.g. reactor) using insulated temperature control hoses. If the applications on the temperature control unit need to be changed frequently, we recommend our quick-release couplings. The quick couplings meet the special requirements of temperature control technology and reliably prevent temperature control fluid from escaping. The quick couplings cause only low pressure losses and thus ensure good performance of the overall system.
If pressure-sensitive appliances are to be used for temperature control, we strongly recommend using the optionally available adapter #10417 to connect an operator-side pressure relief device in the application-side return line. This protects your glass apparatus from the risk of damage due to bursting.
Download: <a href="https://www.huber-online.com/fileadmin/user_upload/huber-online.com/download_center/Betriebsanleitungen/EAL_Schnellverschluss_Set_EN.pdf">Installation Guide</a>
Note: When using ethanol as heat transfer fluid: min. working temperature limit -60°C
订货号: 10407
Location: temperature control unit, application
Temperature range: -90°C...230°C
Disconnect temperature: 20°C
Connection: M30x1,5
Material: 1.4404; HTF contact 1.4571
Max. pressure at 20°C: 25 bar
Internal diameter: 20 mm
Temperature control units are usually connected to the application (e.g. reactor) using insulated temperature control hoses. If the applications on the temperature control unit need to be changed frequently, we recommend our quick-release couplings. The quick couplings meet the special requirements of temperature control technology and reliably prevent temperature control fluid from escaping. The quick couplings cause only low pressure losses and thus ensure good performance of the overall system.
If pressure-sensitive appliances are to be used for temperature control, we strongly recommend using the optionally available adapter #10417 to connect an operator-side pressure relief device in the application-side return line. This protects your glass apparatus from the risk of damage due to bursting.
Note: When using ethanol as heat transfer fluid: min. working temperature limit -60°C
更多
Location: temperature control unit, application
Temperature range: -90°C...230°C
Disconnect temperature: 20°C
Connection: M30x1,5
Material: 1.4404; HTF contact 1.4571
Max. pressure at 20°C: 25 bar
Internal diameter: 20 mm
Temperature control units are usually connected to the application (e.g. reactor) using insulated temperature control hoses. If the applications on the temperature control unit need to be changed frequently, we recommend our quick-release couplings. The quick couplings meet the special requirements of temperature control technology and reliably prevent temperature control fluid from escaping. The quick couplings cause only low pressure losses and thus ensure good performance of the overall system.
If pressure-sensitive appliances are to be used for temperature control, we strongly recommend using the optionally available adapter #10417 to connect an operator-side pressure relief device in the application-side return line. This protects your glass apparatus from the risk of damage due to bursting.
Note: When using ethanol as heat transfer fluid: min. working temperature limit -60°C
订货号: 10417
M30x1,5 female to M30x1,5 male adapter for connection of a pressure relief device with a Rp 1/4 connection, thermally decoupled (as optional accessory for quick disconnect adapters #10406, #10407)
This adapter enables the connection of a pressure relief device in the return line of the application. Its use is strongly recommended for the temperature control of pressure-sensitive apparatus (e.g. glass reactor) in conjunction with our quick-release fittings (#10406, #10407). By connecting a pressure relief device on the operator side using the adapter, you protect your glass apparatus from the risk of damage due to bursting.
The adapter is equipped with M30x1.5 connection threads on both sides. The connection for an operator-side safety device is thermally decoupled and designed with an Rp thread.
更多
M30x1,5 female to M30x1,5 male adapter for connection of a pressure relief device with a Rp 1/4 connection, thermally decoupled (as optional accessory for quick disconnect adapters #10406, #10407)
This adapter enables the connection of a pressure relief device in the return line of the application. Its use is strongly recommended for the temperature control of pressure-sensitive apparatus (e.g. glass reactor) in conjunction with our quick-release fittings (#10406, #10407). By connecting a pressure relief device on the operator side using the adapter, you protect your glass apparatus from the risk of damage due to bursting.
The adapter is equipped with M30x1.5 connection threads on both sides. The connection for an operator-side safety device is thermally decoupled and designed with an Rp thread.
订货号: 10464
Flow rate measuring device to build into the temperature control fluid circuit for measurement and control of Heat Transfer Fluids flow rate. The flow rate can be displayed directly on the Pilot ONE and also be transmitted via the digital interfaces (USB, RS232, LAN and optional RS485, Profibus). It is also possible to control the flow, therefore a temperature control unit with an integrated VPC-Bypass or an external VPC-Bypass as an accessory is required.
The flow rate measurement allows essential functions such as finding the Kinetics/Dynamics of reaction synthesis and crystallisation, heat flow investigation and scale-up in process technology. Further information available on request.
Flow rate measuring device MID, only suitable for conductive heat transfer fluids:
- Temperature range: -40...130°C
- Flow rate: 1...300 l/min
- Measurement accuracy: 3,7...0,7 %
更多
Flow rate measuring device to build into the temperature control fluid circuit for measurement and control of Heat Transfer Fluids flow rate. The flow rate can be displayed directly on the Pilot ONE and also be transmitted via the digital interfaces (USB, RS232, LAN and optional RS485, Profibus). It is also possible to control the flow, therefore a temperature control unit with an integrated VPC-Bypass or an external VPC-Bypass as an accessory is required.
The flow rate measurement allows essential functions such as finding the Kinetics/Dynamics of reaction synthesis and crystallisation, heat flow investigation and scale-up in process technology. Further information available on request.
Flow rate measuring device MID, only suitable for conductive heat transfer fluids:
- Temperature range: -40...130°C
- Flow rate: 1...300 l/min
- Measurement accuracy: 3,7...0,7 %
订货号: 10465
Flow rate measuring device to build into the temperature control fluid circuit for measurement and control of Heat Transfer Fluids flow rate. The flow rate can be displayed directly on the Pilot ONE and also be transmitted via the digital interfaces (USB, RS232, LAN and optional RS485, Profibus). It is also possible to control the flow rate, therefore a temperature control unit with an integrated VPC-Bypass or an external VPC-Bypass as an accessory is required.
The flow rate measurement allows essential functions such as finding the Kinetics/Dynamics of reaction synthesis and crystallisation, heat flow investigation and scale-up in process technology. Further information available on request.
Flow rate measuring device MID, only suitable for conductive heat transfer fluids:
- Temperature range: -40...130°C
- Flow rate: 0,2...100 l/min
- Measurement accuracy: 8...0,6 %
更多
Flow rate measuring device to build into the temperature control fluid circuit for measurement and control of Heat Transfer Fluids flow rate. The flow rate can be displayed directly on the Pilot ONE and also be transmitted via the digital interfaces (USB, RS232, LAN and optional RS485, Profibus). It is also possible to control the flow rate, therefore a temperature control unit with an integrated VPC-Bypass or an external VPC-Bypass as an accessory is required.
The flow rate measurement allows essential functions such as finding the Kinetics/Dynamics of reaction synthesis and crystallisation, heat flow investigation and scale-up in process technology. Further information available on request.
Flow rate measuring device MID, only suitable for conductive heat transfer fluids:
- Temperature range: -40...130°C
- Flow rate: 0,2...100 l/min
- Measurement accuracy: 8...0,6 %
订货号: 10481
The international guarantee from Huber offers worldwide guarantee coverage for distributors, OEM partners etc.
Your advantages:
- Comprehensive care free package
- Professional repair work
- Fast execution of guarantee repairs
- Predictable guarantee costs
- Minimising downtime
- Simple handling of guarantee cases
- No further costs for repairs during guarantee
更多
The international guarantee from Huber offers worldwide guarantee coverage for distributors, OEM partners etc.
Your advantages:
- Comprehensive care free package
- Professional repair work
- Fast execution of guarantee repairs
- Predictable guarantee costs
- Minimising downtime
- Simple handling of guarantee cases
- No further costs for repairs during guarantee
订货号: 10495
The E-grade Explore for Unistats is a development tool for chemical processes which gives access to the following values:
- Performance: Heating or cooling capacity of the system
- Temperature values: Setpoint, internal, process, return
- Temperature differences: ?T internal-return, ?T process-return, ?T process-internal
- Circulation pump: Pressure / speed (depending on model)
更多
The E-grade Explore for Unistats is a development tool for chemical processes which gives access to the following values:
- Performance: Heating or cooling capacity of the system
- Temperature values: Setpoint, internal, process, return
- Temperature differences: ?T internal-return, ?T process-return, ?T process-internal
- Circulation pump: Pressure / speed (depending on model)
订货号: 10503
The Profibus Gateway DP-V1 enables the connection of Huber temperature control machines to Profibus systems, offering comprehensive facilities for data communication within SPS and process control systems.
The Profibus Gateway DP-V1 has a configurable range of functions, the PLC must therefore support acyclic configuration.
For units with Pilot ONE controller
Power Supply: 100-240V 1~/2~ 50/60Hz
Accessories (included): Mounting Bracket, Connection cable, Power cable
Requirement: Controller (SPS) must be capable for DPV1
Download: <a href="https://www.huber-online.com/fileadmin/user_upload/huber-online.com/Downloads/Software/HubrDPV1.zip">Device configuration file</a>
更多
The Profibus Gateway DP-V1 enables the connection of Huber temperature control machines to Profibus systems, offering comprehensive facilities for data communication within SPS and process control systems.
The Profibus Gateway DP-V1 has a configurable range of functions, the PLC must therefore support acyclic configuration.
For units with Pilot ONE controller
Power Supply: 100-240V 1~/2~ 50/60Hz
Accessories (included): Mounting Bracket, Connection cable, Power cable
Requirement: Controller (SPS) must be capable for DPV1
Download: <a href="https://www.huber-online.com/fileadmin/user_upload/huber-online.com/Downloads/Software/HubrDPV1.zip">Device configuration file</a>
订货号: 10519
Connection socket (Lemosa) for connecting a Pt100 measuring sensor, suitable for Huber units with OLÉ controller (only for measuring, no external temperature control).
Only available factory-fitted (or retrofitting by a Huber service partner).
更多
Connection socket (Lemosa) for connecting a Pt100 measuring sensor, suitable for Huber units with OLÉ controller (only for measuring, no external temperature control).
Only available factory-fitted (or retrofitting by a Huber service partner).
订货号: 10529
Location: temperature control unit, application
Temperature range: -75°C...230°C
Disconnect temperature: 20°C
Connection: M24x1,5
Material: 1.4307 or better
Max. pressure at 20°C: 25 bar
Internal diameter: 12 mm
Temperature control units are usually connected to the application (e.g. reactor) using insulated temperature control hoses. If the applications on the temperature control unit need to be changed frequently, we recommend our quick-release couplings. The quick couplings meet the special requirements of temperature control technology and reliably prevent temperature control fluid from escaping. The quick couplings cause only low pressure losses and thus ensure good performance of the overall system.
If pressure-sensitive equipment is to be used for temperature control, we recommend the use of a pressure relief device on the operator side in the return line on the application side. This protects your glass apparatus from the risk of damage due to bursting.
Note: When using ethanol as heat transfer fluid: min. working temperature limit -60°C.
更多
Location: temperature control unit, application
Temperature range: -75°C...230°C
Disconnect temperature: 20°C
Connection: M24x1,5
Material: 1.4307 or better
Max. pressure at 20°C: 25 bar
Internal diameter: 12 mm
Temperature control units are usually connected to the application (e.g. reactor) using insulated temperature control hoses. If the applications on the temperature control unit need to be changed frequently, we recommend our quick-release couplings. The quick couplings meet the special requirements of temperature control technology and reliably prevent temperature control fluid from escaping. The quick couplings cause only low pressure losses and thus ensure good performance of the overall system.
If pressure-sensitive equipment is to be used for temperature control, we recommend the use of a pressure relief device on the operator side in the return line on the application side. This protects your glass apparatus from the risk of damage due to bursting.
Note: When using ethanol as heat transfer fluid: min. working temperature limit -60°C.
订货号: 10530
Location: hose side
Temperature range: -75°C...230°C
Disconnect temperature: 20°C
Connection: M24x1,5
Material: 1.4307 or better
Max. pressure at 20°C: 25 bar
Internal diameter: 12 mm
Temperature control units are usually connected to the application (e.g. reactor) using insulated temperature control hoses. If the applications on the temperature control unit need to be changed frequently, our quick-release couplings are recommended. The quick-release couplings fulfil the special requirements of temperature control technology and reliably prevent temperature control fluid from escaping. The quick-release couplings cause only low pressure losses and thus ensure good performance of the overall system.
If pressure-sensitive equipment is to be used for temperature control, we recommend the use of a pressure relief device on the operator side in the return line on the application side. This protects your glass apparatus from the risk of damage due to bursting.
Note: When using ethanol as heat transfer fluid: min. working temperature limit -60°C
更多
Location: hose side
Temperature range: -75°C...230°C
Disconnect temperature: 20°C
Connection: M24x1,5
Material: 1.4307 or better
Max. pressure at 20°C: 25 bar
Internal diameter: 12 mm
Temperature control units are usually connected to the application (e.g. reactor) using insulated temperature control hoses. If the applications on the temperature control unit need to be changed frequently, our quick-release couplings are recommended. The quick-release couplings fulfil the special requirements of temperature control technology and reliably prevent temperature control fluid from escaping. The quick-release couplings cause only low pressure losses and thus ensure good performance of the overall system.
If pressure-sensitive equipment is to be used for temperature control, we recommend the use of a pressure relief device on the operator side in the return line on the application side. This protects your glass apparatus from the risk of damage due to bursting.
Note: When using ethanol as heat transfer fluid: min. working temperature limit -60°C
订货号: 10561
The OPC UA (OPC Unified Architecture) communication protocol semantically describes data and thus allows a data exchange between automation systems without the need to program a driver. Huber temperature control units with Pilot ONE can already communicate via the modern OPC UA protocol by using the E-grade OPC UA.
更多
The OPC UA (OPC Unified Architecture) communication protocol semantically describes data and thus allows a data exchange between automation systems without the need to program a driver. Huber temperature control units with Pilot ONE can already communicate via the modern OPC UA protocol by using the E-grade OPC UA.
订货号: 10647
Flow rate measuring device to build into the temperature control fluid circuit for measurement and control of Heat Transfer Fluids flow rate. The flow rate can be displayed directly on the Pilot ONE and also be transmitted via the digital interfaces (USB, RS232, LAN and optional RS485, Profibus). It is also possible to control the flow rate, therefore a temperature control unit with an integrated VPC-Bypass or an external VPC-Bypass as an accessory is required.
The flow rate measurement allows essential functions such as finding the Kinetics/Dynamics of reaction synthesis and crystallisation, heat flow investigation and scale-up in process technology. Further information available on request.
Flow rate measuring device Turbine, suitable for all Huber heat transfer fluids:
- Temperature range: -100...350°C
- Flow rate: 6...60 l/min
- Measurement accuracy: 2 %
更多
Flow rate measuring device to build into the temperature control fluid circuit for measurement and control of Heat Transfer Fluids flow rate. The flow rate can be displayed directly on the Pilot ONE and also be transmitted via the digital interfaces (USB, RS232, LAN and optional RS485, Profibus). It is also possible to control the flow rate, therefore a temperature control unit with an integrated VPC-Bypass or an external VPC-Bypass as an accessory is required.
The flow rate measurement allows essential functions such as finding the Kinetics/Dynamics of reaction synthesis and crystallisation, heat flow investigation and scale-up in process technology. Further information available on request.
Flow rate measuring device Turbine, suitable for all Huber heat transfer fluids:
- Temperature range: -100...350°C
- Flow rate: 6...60 l/min
- Measurement accuracy: 2 %
订货号: 10648
Flow rate measuring device to build into the temperature control fluid circuit for measurement and control of Heat Transfer Fluids flow rate. The flow rate can be displayed directly on the Pilot ONE and also be transmitted via the digital interfaces (USB, RS232, LAN and optional RS485, Profibus). It is also possible to control the flow rate, therefore a temperature control unit with an integrated VPC-Bypass or an external VPC-Bypass as an accessory is required.
The flow rate measurement allows essential functions such as finding the Kinetics/Dynamics of reaction synthesis and crystallisation, heat flow investigation and scale-up in process technology. Further information available on request.
Flow rate measuring device Turbine, suitable for all Huber heat transfer fluids:
- Temperature range: -100...350°C
- Flow rate: 15...150 l/min
- Measurement accuracy: 2 %
更多
Flow rate measuring device to build into the temperature control fluid circuit for measurement and control of Heat Transfer Fluids flow rate. The flow rate can be displayed directly on the Pilot ONE and also be transmitted via the digital interfaces (USB, RS232, LAN and optional RS485, Profibus). It is also possible to control the flow rate, therefore a temperature control unit with an integrated VPC-Bypass or an external VPC-Bypass as an accessory is required.
The flow rate measurement allows essential functions such as finding the Kinetics/Dynamics of reaction synthesis and crystallisation, heat flow investigation and scale-up in process technology. Further information available on request.
Flow rate measuring device Turbine, suitable for all Huber heat transfer fluids:
- Temperature range: -100...350°C
- Flow rate: 15...150 l/min
- Measurement accuracy: 2 %
订货号: 10656
Temperature range depends on mixing ratio
Material: Monoethylenglycol, concentrate
Mixing ratio: 50% MEG / 50% water
Colour: light yellow, clear
Viscosity at 25°C: approx. 2 mm²/s
Can: 5 liters
更多
Temperature range depends on mixing ratio
Material: Monoethylenglycol, concentrate
Mixing ratio: 50% MEG / 50% water
Colour: light yellow, clear
Viscosity at 25°C: approx. 2 mm²/s
Can: 5 liters
订货号: 10688
Connection socket (Lemosa) for connecting a Pt100 measuring sensor, suitable for Huber units with KISS controller (only for measuring, no external temperature control).
Only available factory-fitted (or retrofitting by a Huber service partner).
更多
Connection socket (Lemosa) for connecting a Pt100 measuring sensor, suitable for Huber units with KISS controller (only for measuring, no external temperature control).
Only available factory-fitted (or retrofitting by a Huber service partner).
订货号: 10689
Only available factory-fitted (or retrofitting by a Huber Service partner)
更多
Only available factory-fitted (or retrofitting by a Huber Service partner)
订货号: 10786
Temperature range: -45°C...220°C
Connection: M16x1 male
location: hose side
Max. pressure at 20°C: 25 bar
Internal diameter: 12 mm
Temperature control units are usually connected to the application (e.g. reactor) using insulated temperature control hoses. If the applications on the temperature control unit need to be changed frequently, we recommend our quick-release couplings. The quick couplings meet the special requirements of temperature control technology and reliably prevent temperature control fluid from escaping. The quick couplings cause only low pressure losses and thus ensure good performance of the overall system.
If pressure-sensitive equipment is to be used for temperature control, we recommend the use of a pressure relief device on the operator side in the return line on the application side. This protects your glass apparatus from the risk of damage due to bursting.
Note: When using ethanol as heat transfer fluid: min. working temperature limit -60°C
更多
Temperature range: -45°C...220°C
Connection: M16x1 male
location: hose side
Max. pressure at 20°C: 25 bar
Internal diameter: 12 mm
Temperature control units are usually connected to the application (e.g. reactor) using insulated temperature control hoses. If the applications on the temperature control unit need to be changed frequently, we recommend our quick-release couplings. The quick couplings meet the special requirements of temperature control technology and reliably prevent temperature control fluid from escaping. The quick couplings cause only low pressure losses and thus ensure good performance of the overall system.
If pressure-sensitive equipment is to be used for temperature control, we recommend the use of a pressure relief device on the operator side in the return line on the application side. This protects your glass apparatus from the risk of damage due to bursting.
Note: When using ethanol as heat transfer fluid: min. working temperature limit -60°C
订货号: 10787
Temperature range: -45°C...220°C
Connection: M16x1 male
Location: Temperature control unit, application
Max. pressure at 20°C: 25 bar
Internal diameter: 12 mm
Temperature control units are usually connected to the application (e.g. reactor) using insulated temperature control hoses. If the applications on the temperature control unit need to be changed frequently, we recommend our quick-release couplings. The quick couplings meet the special requirements of temperature control technology and reliably prevent temperature control fluid from escaping. The quick couplings cause only low pressure losses and thus ensure good performance of the overall system.
If pressure-sensitive equipment is to be used for temperature control, we recommend the use of a pressure relief device on the operator side in the return line on the application side. This protects your glass apparatus from the risk of damage due to bursting.
Note: When using ethanol as heat transfer fluid: min. working temperature limit -60°C
更多
Temperature range: -45°C...220°C
Connection: M16x1 male
Location: Temperature control unit, application
Max. pressure at 20°C: 25 bar
Internal diameter: 12 mm
Temperature control units are usually connected to the application (e.g. reactor) using insulated temperature control hoses. If the applications on the temperature control unit need to be changed frequently, we recommend our quick-release couplings. The quick couplings meet the special requirements of temperature control technology and reliably prevent temperature control fluid from escaping. The quick couplings cause only low pressure losses and thus ensure good performance of the overall system.
If pressure-sensitive equipment is to be used for temperature control, we recommend the use of a pressure relief device on the operator side in the return line on the application side. This protects your glass apparatus from the risk of damage due to bursting.
Note: When using ethanol as heat transfer fluid: min. working temperature limit -60°C
订货号: 10788
Location: hose side
Temperature range: -45°C...220°C
Disconnect temperature: 20°C
Connection: M24x1,5
Material: 1.4307 or better
Max. pressure at 20°C: 25 bar
Internal diameter: 12 mm
Temperature control units are usually connected to the application (e.g. reactor) using insulated temperature control hoses. If the applications on the temperature control unit need to be changed frequently, we recommend our quick-release couplings. The quick couplings meet the special requirements of temperature control technology and reliably prevent temperature control fluid from escaping. The quick couplings cause only low pressure losses and thus ensure good performance of the overall system.
If pressure-sensitive equipment is to be used for temperature control, we recommend the use of a pressure relief device on the operator side in the return line on the application side. This protects your glass apparatus from the risk of damage due to bursting.
Note: When using ethanol as heat transfer fluid: min. working temperature limit -60°C
更多
Location: hose side
Temperature range: -45°C...220°C
Disconnect temperature: 20°C
Connection: M24x1,5
Material: 1.4307 or better
Max. pressure at 20°C: 25 bar
Internal diameter: 12 mm
Temperature control units are usually connected to the application (e.g. reactor) using insulated temperature control hoses. If the applications on the temperature control unit need to be changed frequently, we recommend our quick-release couplings. The quick couplings meet the special requirements of temperature control technology and reliably prevent temperature control fluid from escaping. The quick couplings cause only low pressure losses and thus ensure good performance of the overall system.
If pressure-sensitive equipment is to be used for temperature control, we recommend the use of a pressure relief device on the operator side in the return line on the application side. This protects your glass apparatus from the risk of damage due to bursting.
Note: When using ethanol as heat transfer fluid: min. working temperature limit -60°C
订货号: 10789
Location: temperature control unit, application
Temperature range: -45°C...220°C
Disconnect temperature: 20°C
Connection: M24x1,5
Material: 1.4307 or better
Max. pressure at 20°C: 25 bar
Internal diameter: 12 mm
Temperature control units are usually connected to the application (e.g. reactor) using insulated temperature control hoses. If the applications on the temperature control unit need to be changed frequently, we recommend our quick-release couplings. The quick couplings meet the special requirements of temperature control technology and reliably prevent temperature control fluid from escaping. The quick couplings cause only low pressure losses and thus ensure good performance of the overall system.
If pressure-sensitive equipment is to be used for temperature control, we recommend the use of a pressure relief device on the operator side in the return line on the application side. This protects your glass apparatus from the risk of damage due to bursting.
Note: When using ethanol as heat transfer fluid: min. working temperature limit -60°C
更多
Location: temperature control unit, application
Temperature range: -45°C...220°C
Disconnect temperature: 20°C
Connection: M24x1,5
Material: 1.4307 or better
Max. pressure at 20°C: 25 bar
Internal diameter: 12 mm
Temperature control units are usually connected to the application (e.g. reactor) using insulated temperature control hoses. If the applications on the temperature control unit need to be changed frequently, we recommend our quick-release couplings. The quick couplings meet the special requirements of temperature control technology and reliably prevent temperature control fluid from escaping. The quick couplings cause only low pressure losses and thus ensure good performance of the overall system.
If pressure-sensitive equipment is to be used for temperature control, we recommend the use of a pressure relief device on the operator side in the return line on the application side. This protects your glass apparatus from the risk of damage due to bursting.
Note: When using ethanol as heat transfer fluid: min. working temperature limit -60°C
订货号: 10790
Temperature range: -75°C...230°C
Connection: M16x1 male
Location: hose side
Max. pressure at 20°C: 25 bar
Internal diameter: 12 mm
Temperature control units are usually connected to the application (e.g. reactor) using insulated temperature control hoses. If the applications on the temperature control unit need to be changed frequently, we recommend our quick-release couplings. The quick couplings meet the special requirements of temperature control technology and reliably prevent temperature control fluid from escaping. The quick couplings cause only low pressure losses and thus ensure good performance of the overall system.
If pressure-sensitive equipment is to be used for temperature control, we recommend the use of a pressure relief device on the operator side in the return line on the application side. This protects your glass apparatus from the risk of damage due to bursting.
Note: When using ethanol as heat transfer fluid: min. working temperature limit -60°C
更多
Temperature range: -75°C...230°C
Connection: M16x1 male
Location: hose side
Max. pressure at 20°C: 25 bar
Internal diameter: 12 mm
Temperature control units are usually connected to the application (e.g. reactor) using insulated temperature control hoses. If the applications on the temperature control unit need to be changed frequently, we recommend our quick-release couplings. The quick couplings meet the special requirements of temperature control technology and reliably prevent temperature control fluid from escaping. The quick couplings cause only low pressure losses and thus ensure good performance of the overall system.
If pressure-sensitive equipment is to be used for temperature control, we recommend the use of a pressure relief device on the operator side in the return line on the application side. This protects your glass apparatus from the risk of damage due to bursting.
Note: When using ethanol as heat transfer fluid: min. working temperature limit -60°C
订货号: 10791
Temperature range: -75°C...230°C
Connection: M16x1 male
Location: Temperature control unit, application
Max. pressure at 20°C: 25 bar
Internal diameter: 12 mm
Temperature control units are usually connected to the application (e.g. reactor) using insulated temperature control hoses. If the applications on the temperature control unit need to be changed frequently, we recommend our quick-release couplings. The quick couplings meet the special requirements of temperature control technology and reliably prevent temperature control fluid from escaping. The quick couplings cause only low pressure losses and thus ensure good performance of the overall system.
If pressure-sensitive equipment is to be used for temperature control, we recommend the use of a pressure relief device on the operator side in the return line on the application side. This protects your glass apparatus from the risk of damage due to bursting.
Note: When using ethanol as heat transfer fluid: min. working temperature limit -60°C
更多
Temperature range: -75°C...230°C
Connection: M16x1 male
Location: Temperature control unit, application
Max. pressure at 20°C: 25 bar
Internal diameter: 12 mm
Temperature control units are usually connected to the application (e.g. reactor) using insulated temperature control hoses. If the applications on the temperature control unit need to be changed frequently, we recommend our quick-release couplings. The quick couplings meet the special requirements of temperature control technology and reliably prevent temperature control fluid from escaping. The quick couplings cause only low pressure losses and thus ensure good performance of the overall system.
If pressure-sensitive equipment is to be used for temperature control, we recommend the use of a pressure relief device on the operator side in the return line on the application side. This protects your glass apparatus from the risk of damage due to bursting.
Note: When using ethanol as heat transfer fluid: min. working temperature limit -60°C
订货号: 10795
Manually adjustable bypass M16x1 with connection for manometer, for Unistats
Temperature range: -60°C ... 200°C, insulated
For this bypass one of the following pressure gauges must be ordered separately:
Manometer 0-1 bar #64190
Manometer 0-2,5 bar #64189
Manometer 0-4 bar #54398
Manometer 0-10 bar #54399
The bypass is easily bendable.
更多
Manually adjustable bypass M16x1 with connection for manometer, for Unistats
Temperature range: -60°C ... 200°C, insulated
For this bypass one of the following pressure gauges must be ordered separately:
Manometer 0-1 bar #64190
Manometer 0-2,5 bar #64189
Manometer 0-4 bar #54398
Manometer 0-10 bar #54399
The bypass is easily bendable.
订货号: 10809
Material: Metal
Temperature range: -40°C...140°C
Length: 100 cm
Connection: G3/4
Nominal width: 19 mm
Insulation: Special insulation with silicone cover, ends secured and covered with silicone caps
更多
Material: Metal
Temperature range: -40°C...140°C
Length: 100 cm
Connection: G3/4
Nominal width: 19 mm
Insulation: Special insulation with silicone cover, ends secured and covered with silicone caps
订货号: 10810
Material: Metal
Temperature range: -40°C...140°C
Length: 150 cm
Connection: G3/4
Nominal width: 19 mm
Insulation: Special insulation with silicone cover, ends secured and covered with silicone caps
更多
Material: Metal
Temperature range: -40°C...140°C
Length: 150 cm
Connection: G3/4
Nominal width: 19 mm
Insulation: Special insulation with silicone cover, ends secured and covered with silicone caps
订货号: 10811
Material: Metal
Temperature range: -40°C...140°C
Length: 200 cm
Connection: G3/4
Nominal width: 19 mm
Insulation: Special insulation with silicone cover, ends secured and covered with silicone caps
更多
Material: Metal
Temperature range: -40°C...140°C
Length: 200 cm
Connection: G3/4
Nominal width: 19 mm
Insulation: Special insulation with silicone cover, ends secured and covered with silicone caps
订货号: 10812
Material: Metal
Temperature range: -40°C...140°C
Length: 300 cm
Connection: G3/4
Nominal width: 19 mm
Insulation: Special insulation with silicone cover, ends secured and covered with silicone caps
更多
Material: Metal
Temperature range: -40°C...140°C
Length: 300 cm
Connection: G3/4
Nominal width: 19 mm
Insulation: Special insulation with silicone cover, ends secured and covered with silicone caps
订货号: 10813
Material: Metal
Temperature range: -40°C...140°C
Length: 100 cm
Connection: G1
Nominal width: 25 mm
Insulation: Special insulation with silicone cover, ends secured and covered with silicone caps
更多
Material: Metal
Temperature range: -40°C...140°C
Length: 100 cm
Connection: G1
Nominal width: 25 mm
Insulation: Special insulation with silicone cover, ends secured and covered with silicone caps
订货号: 10814
Material: Metal
Temperature range: -40°C...140°C
Length: 150 cm
Connection: G1
Nominal width: 25 mm
Insulation: Special insulation with silicone cover, ends secured and covered with silicone caps
更多
Material: Metal
Temperature range: -40°C...140°C
Length: 150 cm
Connection: G1
Nominal width: 25 mm
Insulation: Special insulation with silicone cover, ends secured and covered with silicone caps
订货号: 10815
Material: Metal
Temperature range: -40°C...140°C
Length: 200 cm
Connection: G1
Nominal width: 25 mm
Insulation: Special insulation with silicone cover, ends secured and covered with silicone caps
更多
Material: Metal
Temperature range: -40°C...140°C
Length: 200 cm
Connection: G1
Nominal width: 25 mm
Insulation: Special insulation with silicone cover, ends secured and covered with silicone caps
订货号: 10816
Material: Metal
Temperature range: -40°C...140°C
Length: 300 cm
Connection: G1
Nominal width: 25 mm
Insulation: Special insulation with silicone cover, ends secured and covered with silicone caps
更多
Material: Metal
Temperature range: -40°C...140°C
Length: 300 cm
Connection: G1
Nominal width: 25 mm
Insulation: Special insulation with silicone cover, ends secured and covered with silicone caps
订货号: 10817
Material: Metal
Temperature range: -40°C...140°C
Length: 100 cm
Connection: G1 1/4
Nominal width: 32 mm
Insulation: Special insulation with silicone cover, ends secured and covered with silicone caps
更多
Material: Metal
Temperature range: -40°C...140°C
Length: 100 cm
Connection: G1 1/4
Nominal width: 32 mm
Insulation: Special insulation with silicone cover, ends secured and covered with silicone caps
订货号: 10818
Material: Metal
Temperature range: -40°C...140°C
Length: 150 cm
Connection: G1 1/4
Nominal width: 32 mm
Insulation: Special insulation with silicone cover, ends secured and covered with silicone caps
更多
Material: Metal
Temperature range: -40°C...140°C
Length: 150 cm
Connection: G1 1/4
Nominal width: 32 mm
Insulation: Special insulation with silicone cover, ends secured and covered with silicone caps
订货号: 10819
Material: Metal
Temperature range: -40°C...140°C
Length: 200 cm
Connection: G1 1/4
Nominal width: 32 mm
Insulation: Special insulation with silicone cover, ends secured and covered with silicone caps
更多
Material: Metal
Temperature range: -40°C...140°C
Length: 200 cm
Connection: G1 1/4
Nominal width: 32 mm
Insulation: Special insulation with silicone cover, ends secured and covered with silicone caps
订货号: 10820
Material: Metal
Temperature range: -40°C...140°C
Length: 300 cm
Connection: G1 1/4
Nominal width: 32 mm
Insulation: Special insulation with silicone cover, ends secured and covered with silicone caps
更多
Material: Metal
Temperature range: -40°C...140°C
Length: 300 cm
Connection: G1 1/4
Nominal width: 32 mm
Insulation: Special insulation with silicone cover, ends secured and covered with silicone caps
订货号: 1085.0001.00
Designed to compensate for pressure loss in external systems the Unipump is made of stainless steel. The Unipump is connected in series with the pump of the Unistat, Unichiller or Compatible Control circulator and can be controlled via the voltfree contact of the Com.G@te (Option).
Temperature range: -120 ... 300 °C
Pressure pump max.: 55 l/min / 1,0 bar
Pump connection: M24x1,5
Power supply: 208-240V 1~ 50/60Hz
更多
Designed to compensate for pressure loss in external systems the Unipump is made of stainless steel. The Unipump is connected in series with the pump of the Unistat, Unichiller or Compatible Control circulator and can be controlled via the voltfree contact of the Com.G@te (Option).
Temperature range: -120 ... 300 °C
Pressure pump max.: 55 l/min / 1,0 bar
Pump connection: M24x1,5
Power supply: 208-240V 1~ 50/60Hz
订货号: 1086.0001.00
Closed magnetic-coupled circulation pump made of stainless steel. Designed to compensate for pressure loss in external systems the Unipump is made of stainless steel. The Unipump is connected in series with the pump of the Unistat, Unichiller or Compatible Control circulator and can be controlled via the voltfree contact of the Com.G@te (Option).
Temperature range: -120 ... 350 °C
Pressure pump max. 110 l/min / 2 bar
Pump connection: M38x1,5 male
Power supply: 380V- 480V 3~ 50/60Hz
Dimensions (W x D x H): 275 x 420 x 295 mm
更多
Closed magnetic-coupled circulation pump made of stainless steel. Designed to compensate for pressure loss in external systems the Unipump is made of stainless steel. The Unipump is connected in series with the pump of the Unistat, Unichiller or Compatible Control circulator and can be controlled via the voltfree contact of the Com.G@te (Option).
Temperature range: -120 ... 350 °C
Pressure pump max. 110 l/min / 2 bar
Pump connection: M38x1,5 male
Power supply: 380V- 480V 3~ 50/60Hz
Dimensions (W x D x H): 275 x 420 x 295 mm
订货号: 10867
Material: Metal
Temperature range: -90°C...200°C
Length: 100 cm
Connection: Flange EN1092-1 Typ 11
Nominal width: 40 mm
Insulation: Foam insulation, shrinked tubing as end caps
更多
Material: Metal
Temperature range: -90°C...200°C
Length: 100 cm
Connection: Flange EN1092-1 Typ 11
Nominal width: 40 mm
Insulation: Foam insulation, shrinked tubing as end caps
订货号: 10868
Material: Metal
Temperature range: -90°C...200°C
Length: 150 cm
Connection: Flange EN1092-1 Typ 11
Nominal width: 40 mm
Insulation: Foam insulation, shrinked tubing as end caps
更多
Material: Metal
Temperature range: -90°C...200°C
Length: 150 cm
Connection: Flange EN1092-1 Typ 11
Nominal width: 40 mm
Insulation: Foam insulation, shrinked tubing as end caps
订货号: 10869
Material: Metal
Temperature range: -90°C...200°C
Length: 200 cm
Connection: Flange EN1092-1 Typ 11
Nominal width: 40 mm
Insulation: Foam insulation, shrinked tubing as end caps
更多
Material: Metal
Temperature range: -90°C...200°C
Length: 200 cm
Connection: Flange EN1092-1 Typ 11
Nominal width: 40 mm
Insulation: Foam insulation, shrinked tubing as end caps
订货号: 1087.0001.00
Closed magnetic-coupled circulation pump made of stainless steel. Designed to compensate for pressure loss in external systems the Unipump is made of stainless steel. The Unipump is connected in series with the pump of the Unistat, Unichiller or Compatible Control circulator and can be controlled via the voltfree contact of the Com.G@te (Option).
Temperature range: -120 ... 350 °C
Pressure pump max. 120 l/min / 4 bar
Pump connection: M38x1,5 male
Power supply: 380V-480V 3~ 50/60Hz
Dimensions: 275x420x295 mm
更多
Closed magnetic-coupled circulation pump made of stainless steel. Designed to compensate for pressure loss in external systems the Unipump is made of stainless steel. The Unipump is connected in series with the pump of the Unistat, Unichiller or Compatible Control circulator and can be controlled via the voltfree contact of the Com.G@te (Option).
Temperature range: -120 ... 350 °C
Pressure pump max. 120 l/min / 4 bar
Pump connection: M38x1,5 male
Power supply: 380V-480V 3~ 50/60Hz
Dimensions: 275x420x295 mm
订货号: 10870
Material: Metal
Temperature range: -90°C...200°C
Length: 300 cm
Connection: Flange EN1092-1 Typ 11
Nominal width: 40 mm
Insulation: Foam insulation, shrinked tubing as end caps
更多
Material: Metal
Temperature range: -90°C...200°C
Length: 300 cm
Connection: Flange EN1092-1 Typ 11
Nominal width: 40 mm
Insulation: Foam insulation, shrinked tubing as end caps
订货号: 10871
Material: Metal
Temperature range: -90°C...200°C
Length: 100 cm
Connection: Flange EN1092-1 Typ 11
Nominal width: 50 mm
Insulation: Foam insulation, shrinked tubing as end caps
更多
Material: Metal
Temperature range: -90°C...200°C
Length: 100 cm
Connection: Flange EN1092-1 Typ 11
Nominal width: 50 mm
Insulation: Foam insulation, shrinked tubing as end caps
订货号: 10872
Material: Metal
Temperature range: -90°C...200°C
Length: 150 cm
Connection: Flange EN1092-1 Typ 11
Nominal width: 50 mm
Insulation: Foam insulation, shrinked tubing as end caps
更多
Material: Metal
Temperature range: -90°C...200°C
Length: 150 cm
Connection: Flange EN1092-1 Typ 11
Nominal width: 50 mm
Insulation: Foam insulation, shrinked tubing as end caps
订货号: 10873
Material: Metal
Temperature range: -90°C...200°C
Length: 200 cm
Connection: Flange EN1092-1 Typ 11
Nominal width: 50 mm
Insulation: Foam insulation, shrinked tubing as end caps
更多
Material: Metal
Temperature range: -90°C...200°C
Length: 200 cm
Connection: Flange EN1092-1 Typ 11
Nominal width: 50 mm
Insulation: Foam insulation, shrinked tubing as end caps
订货号: 10874
Material: Metal
Temperature range: -90°C...200°C
Length: 300 cm
Connection: Flange EN1092-1 Typ 11
Nominal width: 50 mm
Insulation: Foam insulation, shrinked tubing as end caps
更多
Material: Metal
Temperature range: -90°C...200°C
Length: 300 cm
Connection: Flange EN1092-1 Typ 11
Nominal width: 50 mm
Insulation: Foam insulation, shrinked tubing as end caps
订货号: 14562
Holder for immersion coolers TC45/-E,TC50/-E, TC100/-E
for mounting on bath
更多
Holder for immersion coolers TC45/-E,TC50/-E, TC100/-E
for mounting on bath
订货号: 16160
Connection cable for Pilot ONE for using the controller as remote control (without RS232)
Length: 3m
Using #16160 as remote control does not allow communication via RS232. If required, please use #56196.
更多
Connection cable for Pilot ONE for using the controller as remote control (without RS232)
Length: 3m
Using #16160 as remote control does not allow communication via RS232. If required, please use #56196.
订货号: 16851
Material: HDPE with braiding
Temperature range: -20°C...90°C
Length: 100 cm
Connection: G1/2
Max. pressure at 20°C: 10 bar
Internal diameter: 15 mm
更多
Material: HDPE with braiding
Temperature range: -20°C...90°C
Length: 100 cm
Connection: G1/2
Max. pressure at 20°C: 10 bar
Internal diameter: 15 mm
订货号: 16852
Material: HDPE with braiding
Temperature range: -20°C...90°C
Length: 150 cm
Connection: G1/2
Max. pressure at 20°C: 10 bar
Internal diameter: 15 mm
更多
Material: HDPE with braiding
Temperature range: -20°C...90°C
Length: 150 cm
Connection: G1/2
Max. pressure at 20°C: 10 bar
Internal diameter: 15 mm
订货号: 16853
Material: HDPE with braiding
Temperature range: -20°C...90°C
Length: 200 cm
Connection: G1/2
Max. pressure at 20°C: 10 bar
Internal diameter: 15 mm
更多
Material: HDPE with braiding
Temperature range: -20°C...90°C
Length: 200 cm
Connection: G1/2
Max. pressure at 20°C: 10 bar
Internal diameter: 15 mm
订货号: 16854
Material: HDPE with braiding
Temperature range: -20°C...90°C
Length: 100 cm
Connection: G3/4
Max. pressure at 20°C: 10 bar
Internal diameter: 20 mm
更多
Material: HDPE with braiding
Temperature range: -20°C...90°C
Length: 100 cm
Connection: G3/4
Max. pressure at 20°C: 10 bar
Internal diameter: 20 mm
订货号: 16855
Material: HDPE with braiding
Temperature range: -20°C...90°C
Length: 150 cm
Connection: G3/4
Max. Pressure at 20°C: 10 bar
Internal diameter: 20 mm
更多
Material: HDPE with braiding
Temperature range: -20°C...90°C
Length: 150 cm
Connection: G3/4
Max. Pressure at 20°C: 10 bar
Internal diameter: 20 mm
订货号: 16856
Material: HDPE with braiding
Temperature range: -20°C...90°C
Length: 200 cm
Connection: G3/4
Max. pressure at 20°C: 10 bar
Internal diameter: 20 mm
更多
Material: HDPE with braiding
Temperature range: -20°C...90°C
Length: 200 cm
Connection: G3/4
Max. pressure at 20°C: 10 bar
Internal diameter: 20 mm
订货号: 16857
Material: HDPE with braiding
Temperature range: -20°C...90°C
Length: 100 cm
Connection: G1
Max. pressure at 20°C: 10 bar
Internal diameter: 25 mm
更多
Material: HDPE with braiding
Temperature range: -20°C...90°C
Length: 100 cm
Connection: G1
Max. pressure at 20°C: 10 bar
Internal diameter: 25 mm
订货号: 16858
Material: HDPE with braiding
Temperature range: -20°C...90°C
Length: 150 cm
Connection: G1
Max. pressure at 20°C: 10 bar
Internal diameter: 25 mm
更多
Material: HDPE with braiding
Temperature range: -20°C...90°C
Length: 150 cm
Connection: G1
Max. pressure at 20°C: 10 bar
Internal diameter: 25 mm
订货号: 16859
Material: HDPE with Braiding
Temperature range: -20°C...90°C
Length: 200 cm
Connection: G1
Max. pressure at 20°C: 10 bar
Internal diameter: 25 mm
更多
Material: HDPE with Braiding
Temperature range: -20°C...90°C
Length: 200 cm
Connection: G1
Max. pressure at 20°C: 10 bar
Internal diameter: 25 mm
订货号: 17098
Bath opening (W x D): 480 x 180 mm
Bath depth: 312 mm
Bath volume: 30 liters
Dimensions (W x D x H): 500 x 200 x 322 mm
更多
Bath opening (W x D): 480 x 180 mm
Bath depth: 312 mm
Bath volume: 30 liters
Dimensions (W x D x H): 500 x 200 x 322 mm
订货号: 1782
Thickness: 13 mm
Internal diameter: 22 mm
Sold per meter
更多
Thickness: 13 mm
Internal diameter: 22 mm
Sold per meter
订货号: 18021
Material: HDPE with braiding
Temperature range: -20°C...90°C
Length: 100 cm
Connection: G1 1/4
Max. pressure at 20°C: 6 bar
Internal diameter: 32 mm
更多
Material: HDPE with braiding
Temperature range: -20°C...90°C
Length: 100 cm
Connection: G1 1/4
Max. pressure at 20°C: 6 bar
Internal diameter: 32 mm
订货号: 18022
Material: HDPE with braiding
Temperature range: -20°C...90°C
Length: 150 cm
Connection: G1 1/4
Max. pressure at 20°C: 6 bar
Internal diameter: 32 mm
更多
Material: HDPE with braiding
Temperature range: -20°C...90°C
Length: 150 cm
Connection: G1 1/4
Max. pressure at 20°C: 6 bar
Internal diameter: 32 mm
订货号: 18023
Material: HDPE with braiding
Temperature range: -20°C...90°C
Length: 200 cm
Connection: G1 1/4
Max. pressure at 20°C: 6 bar
Internal diameter: 32 mm
更多
Material: HDPE with braiding
Temperature range: -20°C...90°C
Length: 200 cm
Connection: G1 1/4
Max. pressure at 20°C: 6 bar
Internal diameter: 32 mm
订货号: 1889
Thickness: 13 mm
Internal diameter: 28 mm
Sold per meter
更多
Thickness: 13 mm
Internal diameter: 28 mm
Sold per meter
订货号: 19606
Pump adapter cpl.
for KISS E, CC-E and with baths 106A to 118A
incl. hose connectors NW12
更多
Pump adapter cpl.
for KISS E, CC-E and with baths 106A to 118A
incl. hose connectors NW12
订货号: 19607
Pump adapter cpl.
for KISS E, CC-E and baths 208B to 225B and K12 to K25
incl. hose connectors NW12
更多
Pump adapter cpl.
for KISS E, CC-E and baths 208B to 225B and K12 to K25
incl. hose connectors NW12
订货号: 2009.0032.00
The refrigerated baths K6 to K25 use natural refrigerants.In combination with an immersion circulator these refrigerated bath systems offers active cooling, in continuous operation over the complete working range.
Power Supply: 220-240V 1~/2~ 50/60Hz
更多
The refrigerated baths K6 to K25 use natural refrigerants.In combination with an immersion circulator these refrigerated bath systems offers active cooling, in continuous operation over the complete working range.
Power Supply: 220-240V 1~/2~ 50/60Hz
订货号: 2009.0033.00
The refrigerated baths K6 to K25 use natural refrigerants.In combination with an immersion circulator these refrigerated bath systems offers active cooling, in continuous operation over the complete working range.
Power Supply: 110-120V 1~ 50/60Hz
更多
The refrigerated baths K6 to K25 use natural refrigerants.In combination with an immersion circulator these refrigerated bath systems offers active cooling, in continuous operation over the complete working range.
Power Supply: 110-120V 1~ 50/60Hz
订货号: 2010.0026.00
The refrigerated baths K6 to K25 use natural refrigerants.In combination with an immersion circulator these refrigerated bath systems offers active cooling, in continuous operation over the complete working range.
Power Supply: 220-240V 1~/2~ 50/60Hz
更多
The refrigerated baths K6 to K25 use natural refrigerants.In combination with an immersion circulator these refrigerated bath systems offers active cooling, in continuous operation over the complete working range.
Power Supply: 220-240V 1~/2~ 50/60Hz
订货号: 2010.0027.00
The refrigerated baths K6 to K25 use natural refrigerants.In combination with an immersion circulator these refrigerated bath systems offers active cooling, in continuous operation over the complete working range.
Power Supply: 110-120V 1~ 50/60 Hz
更多
The refrigerated baths K6 to K25 use natural refrigerants.In combination with an immersion circulator these refrigerated bath systems offers active cooling, in continuous operation over the complete working range.
Power Supply: 110-120V 1~ 50/60 Hz
订货号: 2011.0021.00
The refrigerated baths K6 to K25 use natural refrigerants.In combination with an immersion circulator these refrigerated bath systems offers active cooling, in continuous operation over the complete working range.
Power Supply: 110-120V 1~ 50/60 Hz
更多
The refrigerated baths K6 to K25 use natural refrigerants.In combination with an immersion circulator these refrigerated bath systems offers active cooling, in continuous operation over the complete working range.
Power Supply: 110-120V 1~ 50/60 Hz
订货号: 2011.0022.00
The refrigerated baths K6 to K25 use natural refrigerants.In combination with an immersion circulator these refrigerated bath systems offers active cooling, in continuous operation over the complete working range.
Power Supply: 230V 1~ 50/60 Hz
更多
The refrigerated baths K6 to K25 use natural refrigerants.In combination with an immersion circulator these refrigerated bath systems offers active cooling, in continuous operation over the complete working range.
Power Supply: 230V 1~ 50/60 Hz
订货号: 2012.0026.00
The refrigerated baths K6 to K25 use natural refrigerants.In combination with an immersion circulator these refrigerated bath systems offers active cooling, in continuous operation over the complete working range.
Power Supply: 220-240V 1~/2~ 50/60Hz
更多
The refrigerated baths K6 to K25 use natural refrigerants.In combination with an immersion circulator these refrigerated bath systems offers active cooling, in continuous operation over the complete working range.
Power Supply: 220-240V 1~/2~ 50/60Hz
订货号: 2012.0027.00
The refrigerated baths K6 to K25 use natural refrigerants.In combination with an immersion circulator these refrigerated bath systems offers active cooling, in continuous operation over the complete working range.
Power Supply: 110-120V 1~ 50/60 Hz
更多
The refrigerated baths K6 to K25 use natural refrigerants.In combination with an immersion circulator these refrigerated bath systems offers active cooling, in continuous operation over the complete working range.
Power Supply: 110-120V 1~ 50/60 Hz
订货号: 30523
Bath opening (W x D): 303 x 342 mm
Bath depth: 150 mm
Bath volume: 12 liters
Dimensions (W x D x H): 333 x 358 x 166 mm
更多
Bath opening (W x D): 303 x 342 mm
Bath depth: 150 mm
Bath volume: 12 liters
Dimensions (W x D x H): 333 x 358 x 166 mm
订货号: 30526
Bath opening (W x D): 303 x 502 mm
Bath depth: 150 mm
Bath volume: 18 liters
Dimensions (W x D x H): 333 x 518 x 166 mm
更多
Bath opening (W x D): 303 x 502 mm
Bath depth: 150 mm
Bath volume: 18 liters
Dimensions (W x D x H): 333 x 518 x 166 mm
订货号: 30527
Bath opening (W x D): 130 x 290 mm
Bath depth: 150 mm
Bath volume: 6 liters
Dimensions (W x D x H): 142 x 305 x 161 mm
更多
Bath opening (W x D): 130 x 290 mm
Bath depth: 150 mm
Bath volume: 6 liters
Dimensions (W x D x H): 142 x 305 x 161 mm
订货号: 30528
Bath opening (W x D): 130 x 390 mm
Bath depth: 150 mm
Bath volume: 8 liters
Dimensions (W x D x H): 142 x 405 x 161 mm
更多
Bath opening (W x D): 130 x 390 mm
Bath depth: 150 mm
Bath volume: 8 liters
Dimensions (W x D x H): 142 x 405 x 161 mm
订货号: 30529
Bath opening (W x D): 130 x 490 mm
Bath depth: 150 mm
Bath volume: 10 liters
Dimensions (W x D x H): 142 x 505 x 161 mm
更多
Bath opening (W x D): 130 x 490 mm
Bath depth: 150 mm
Bath volume: 10 liters
Dimensions (W x D x H): 142 x 505 x 161 mm
订货号: 31735
Drain tap suitable for canisters with heat transfer fluids.
For easy filling of the temperature control unit with heat transfer fluid directly from the canister.
With drain valve, 23 mm, ventilated
更多
Drain tap suitable for canisters with heat transfer fluids.
For easy filling of the temperature control unit with heat transfer fluid directly from the canister.
With drain valve, 23 mm, ventilated
订货号: 337657
Temperature range: -80 to 300°C (max. 6 bar at 300°C)
Including universal mounting device for fixation at site.
To connect the multiway header to the temperature control unit, a hose in corresponding length is required.
For direct mounting on the temperature control unit, the 90° ellbow adapter #10159 is included.
更多
Temperature range: -80 to 300°C (max. 6 bar at 300°C)
Including universal mounting device for fixation at site.
To connect the multiway header to the temperature control unit, a hose in corresponding length is required.
For direct mounting on the temperature control unit, the 90° ellbow adapter #10159 is included.
订货号: 341870
Temperature range: -80 to 300°C (max. 6 bar at 300°C)
Including universal mounting device for fixation at site.
To connect the multiway header to the temperature control unit, a hose in corresponding length is required.
For direct mounting on the temperature control unit, the 90° ellbow adapter #10159 is included.
更多
Temperature range: -80 to 300°C (max. 6 bar at 300°C)
Including universal mounting device for fixation at site.
To connect the multiway header to the temperature control unit, a hose in corresponding length is required.
For direct mounting on the temperature control unit, the 90° ellbow adapter #10159 is included.
订货号: 341871
Temperature range: -80 to 300°C (max. 6 bar at 300°C)
Including universal mounting device for fixation at site.
To connect the multiway header to the temperature control unit, a hose in corresponding length is required.
更多
Temperature range: -80 to 300°C (max. 6 bar at 300°C)
Including universal mounting device for fixation at site.
To connect the multiway header to the temperature control unit, a hose in corresponding length is required.
订货号: 341892
Temperature range: -80 to 300°C (max. 6 bar at 300°C)
Including universal mounting device for fixation at site.
To connect the multiway header to the temperature control unit, a hose in corresponding length is required.
更多
Temperature range: -80 to 300°C (max. 6 bar at 300°C)
Including universal mounting device for fixation at site.
To connect the multiway header to the temperature control unit, a hose in corresponding length is required.
订货号: 342090
Temperature range: -80 to 300°C (max 6 bar at 300°C)
Including universal mounting device for fixation at site.
To connect the multiway header to the temperature control unit, a hose in corresponding length is required.
For direct mounting on the temperature control unit, the 90° ellbow adapter #10703 is included.
更多
Temperature range: -80 to 300°C (max 6 bar at 300°C)
Including universal mounting device for fixation at site.
To connect the multiway header to the temperature control unit, a hose in corresponding length is required.
For direct mounting on the temperature control unit, the 90° ellbow adapter #10703 is included.
订货号: 342639
Temperature range: -80 to 300°C (max. 6 bar at 300°C)
Including universal mounting device for fixation at site.
To connect the multiway header to the temperature control unit, a hose in corresponding length is required.
For direct mounting on the temperature control unit, the 90° ellbow adapter #10450 is included.
更多
Temperature range: -80 to 300°C (max. 6 bar at 300°C)
Including universal mounting device for fixation at site.
To connect the multiway header to the temperature control unit, a hose in corresponding length is required.
For direct mounting on the temperature control unit, the 90° ellbow adapter #10450 is included.
订货号: 342656
Temperature range: -80 to 300°C (max 6 bar at 300°C)
Including universal mounting device for fixation at site.
To connect the multiway header to the temperature control unit, a hose in corresponding length is required.
更多
Temperature range: -80 to 300°C (max 6 bar at 300°C)
Including universal mounting device for fixation at site.
To connect the multiway header to the temperature control unit, a hose in corresponding length is required.
订货号: 343210
with CPC Quickconnects, valved coupling
high grade synthetic material -40 ... +80 °C
chemically resistant and thermally robust
Pressure max.: 1,5 bar
Tube connection:
Inlet: 3/8" (approx. 10 mm)
Outlet: 1/4" (approx. 8 mm)
更多
with CPC Quickconnects, valved coupling
high grade synthetic material -40 ... +80 °C
chemically resistant and thermally robust
Pressure max.: 1,5 bar
Tube connection:
Inlet: 3/8" (approx. 10 mm)
Outlet: 1/4" (approx. 8 mm)
订货号: 34322
Temperature range: -20°C...180°C
Length: variable
Max. pressure at 20°C: low pressure
Internal diameter: 12 mm
Material: FKM
Sold per meter
更多
Temperature range: -20°C...180°C
Length: variable
Max. pressure at 20°C: low pressure
Internal diameter: 12 mm
Material: FKM
Sold per meter
订货号: 343221
Temperature range: -80 to 300°C (max. 6 bar at 300°C)
Including universal mounting device for fixation at site.
To connect the multiway header to the temperature control unit, a hose in corresponding length is required.
For direct mounting on the temperature control unit, the 90° ellbow adapter #10538 is included.
更多
Temperature range: -80 to 300°C (max. 6 bar at 300°C)
Including universal mounting device for fixation at site.
To connect the multiway header to the temperature control unit, a hose in corresponding length is required.
For direct mounting on the temperature control unit, the 90° ellbow adapter #10538 is included.
订货号: 343228
Temperature range: -80 to 300°C (max. 6 bar at 300°C)
Including universal mounting device for fixation at site.
To connect the multiway header to the temperature control unit, a hose in corresponding length is required.
更多
Temperature range: -80 to 300°C (max. 6 bar at 300°C)
Including universal mounting device for fixation at site.
To connect the multiway header to the temperature control unit, a hose in corresponding length is required.
订货号: 343230
Temperature range: -80 to 300°C (max. 6 bar at 300°C)
Including universal mounting device for fixation at site.
To connect the multiway header to the temperature control unit, a hose in corresponding length is required.
For direct mounting on the temperature control unit, the 90° ellbow adapter #10450 is included.
更多
Temperature range: -80 to 300°C (max. 6 bar at 300°C)
Including universal mounting device for fixation at site.
To connect the multiway header to the temperature control unit, a hose in corresponding length is required.
For direct mounting on the temperature control unit, the 90° ellbow adapter #10450 is included.
订货号: 343234
Temperature range: -80 to 300°C (max. 6 bar at 300°C)
Including universal mounting device for fixation at site.
To connect the multiway header to the temperature control unit, a hose in corresponding length is required.
For direct mounting on the temperature control unit, the 90° ellbow adapter #10703 is included.
更多
Temperature range: -80 to 300°C (max. 6 bar at 300°C)
Including universal mounting device for fixation at site.
To connect the multiway header to the temperature control unit, a hose in corresponding length is required.
For direct mounting on the temperature control unit, the 90° ellbow adapter #10703 is included.
订货号: 343235
Temperature range: -80 to 300°C (max. 6 bar at 300°C)
Including universal mounting device for fixation at site.
To connect the multiway header to the temperature control unit, a hose in corresponding length is required.
更多
Temperature range: -80 to 300°C (max. 6 bar at 300°C)
Including universal mounting device for fixation at site.
To connect the multiway header to the temperature control unit, a hose in corresponding length is required.
订货号: 343294
Temperature range: -20 ... +140°C (max. 6 bar at +140°C)
Including universal mounting device for fixation at site.
To connect the multiway header to the temperature control unit, a hose in corresponding length is required.
For direct mounting on the temperature control unit, the 90° ellbow adapter #10159 is included.
更多
Temperature range: -20 ... +140°C (max. 6 bar at +140°C)
Including universal mounting device for fixation at site.
To connect the multiway header to the temperature control unit, a hose in corresponding length is required.
For direct mounting on the temperature control unit, the 90° ellbow adapter #10159 is included.
订货号: 343295
Temperature range: -20 ... +140°C (max. 6 bar at +140°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
更多
Temperature range: -20 ... +140°C (max. 6 bar at +140°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
订货号: 343304
Temperature range: -20 ... +140°C (max. 6 bar at +140°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
更多
Temperature range: -20 ... +140°C (max. 6 bar at +140°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
订货号: 343305
Temperature range: -20 ... +140°C (max. 6 bar at +140°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
更多
Temperature range: -20 ... +140°C (max. 6 bar at +140°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
订货号: 343306
Temperature range: -10 ... +180°C (max. 60 bar at +180°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
更多
Temperature range: -10 ... +180°C (max. 60 bar at +180°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
订货号: 343310
Temperature range: -10 ... +180°C (max. 20 bar at +180°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
更多
Temperature range: -10 ... +180°C (max. 20 bar at +180°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
订货号: 343314
Temperature range: -10 ... +180°C (max. 6 bar at +180°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
更多
Temperature range: -10 ... +180°C (max. 6 bar at +180°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
订货号: 343317
Temperature range: -10 ... +180°C (max. 6 bar at +180°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
更多
Temperature range: -10 ... +180°C (max. 6 bar at +180°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
订货号: 343318
Temperature range: -10 ... +180°C (max. 6 bar at +180°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
更多
Temperature range: -10 ... +180°C (max. 6 bar at +180°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
订货号: 343321
Temperature range: -10 ... +180°C (max. 6 bar at +180°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
更多
Temperature range: -10 ... +180°C (max. 6 bar at +180°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
订货号: 343329
Temperature range: -10 ... +180°C (max. 6 bar at +180°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
更多
Temperature range: -10 ... +180°C (max. 6 bar at +180°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
订货号: 343331
Temperature range: -10 ... +180°C (max. 6 bar at +180°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
更多
Temperature range: -10 ... +180°C (max. 6 bar at +180°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
订货号: 343938
Octagon 8 port - manifold
with CPC Quickconnects, valved coupling
high grade synthetic material -40 ... +80 °C
chemically resistant and thermally robust
Max. pressure: 1,5 bar
Tube connection:
Inlet: 3/8" (approx. 10 mm)
Outlet: 1/4" (approx. 8 mm)
更多
Octagon 8 port - manifold
with CPC Quickconnects, valved coupling
high grade synthetic material -40 ... +80 °C
chemically resistant and thermally robust
Max. pressure: 1,5 bar
Tube connection:
Inlet: 3/8" (approx. 10 mm)
Outlet: 1/4" (approx. 8 mm)
订货号: 350025
Temperature range: -10 ... +180°C (max. 6 bar at +180°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
更多
Temperature range: -10 ... +180°C (max. 6 bar at +180°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
订货号: 350035
Temperature range: -10 ... +180°C (max. 6 bar at +180°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
更多
Temperature range: -10 ... +180°C (max. 6 bar at +180°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
订货号: 3968
Thickness: 13 mm
Internal diameter: 16 mm
Sold per meter
更多
Thickness: 13 mm
Internal diameter: 16 mm
Sold per meter
订货号: 41279
suitable for use with adjustable base #40763
更多
suitable for use with adjustable base #40763
订货号: 41280
suitable for use with adjustable base #40681
更多
suitable for use with adjustable base #40681
订货号: 503.0010
Electronic module with insertion slot for Pilot ONE controller for Unistats
Pilot ONE is not included in delivery.
更多
Electronic module with insertion slot for Pilot ONE controller for Unistats
Pilot ONE is not included in delivery.
订货号: 503.0011
Controller Pilot ONE for CC circulators, Unichillers, Unistats
更多
Controller Pilot ONE for CC circulators, Unichillers, Unistats
订货号: 505286
Glass accessory set for cold trap CT50 Single OLÉ
Consisting of:
#503344 - glass trap body
#503345 - 3 way vacuum stopcock adapter
#503346 - 1-liter receiver flask
#503347 - quick release clamp 100 mm
#504544 - O-Ring DN100
更多
Glass accessory set for cold trap CT50 Single OLÉ
Consisting of:
#503344 - glass trap body
#503345 - 3 way vacuum stopcock adapter
#503346 - 1-liter receiver flask
#503347 - quick release clamp 100 mm
#504544 - O-Ring DN100
订货号: 54949
USB control cable
from: controller Pilot ONE, Mini-USB
to: PC / Notebook, USB Type A
Length 3 m
for data recording, data communication and firmware updates
更多
USB control cable
from: controller Pilot ONE, Mini-USB
to: PC / Notebook, USB Type A
Length 3 m
for data recording, data communication and firmware updates
订货号: 55018
RS232 control cable
from: Huber unit, 15 pin Sub-D plug (male)
to: PC / Notebook, 9 pin Sub-D socket (female)
Length 3 m
This cable is required to use the 15 pins RS232 interface on Unistat models.
更多
RS232 control cable
from: Huber unit, 15 pin Sub-D plug (male)
to: PC / Notebook, 9 pin Sub-D socket (female)
Length 3 m
This cable is required to use the 15 pins RS232 interface on Unistat models.
订货号: 56014
Touch pen set for Pilot ONE controller for convenient pen operation even when wearing protective gloves. The set includes the touch pen and a holding device (self-adhesive) with a flexible spiral cord. This ensures that the pen is always ready to hand directly on the device and cannot get lost.
更多
Touch pen set for Pilot ONE controller for convenient pen operation even when wearing protective gloves. The set includes the touch pen and a holding device (self-adhesive) with a flexible spiral cord. This ensures that the pen is always ready to hand directly on the device and cannot get lost.
订货号: 6012
Width bath opening W x D: 290 x 320 mm
Bath depth: 200 mm
Bath volume: 15 liters
Dimensions W x D x H: 350 x 375 x 256 mm
All stainless steel baths are designed to operate up to a maximum temperature of +200°C.
更多
Width bath opening W x D: 290 x 320 mm
Bath depth: 200 mm
Bath volume: 15 liters
Dimensions W x D x H: 350 x 375 x 256 mm
All stainless steel baths are designed to operate up to a maximum temperature of +200°C.
订货号: 6013
Width bath opening W x D: 290 x 500 mm
Bath depth: 200 mm
Bath volume: 25 liters
Overall dimensions W x D x H: 350 x 555 x 256 mm
All stainless steel baths are designed to operate up to a maximum temperature of +200°C.
更多
Width bath opening W x D: 290 x 500 mm
Bath depth: 200 mm
Bath volume: 25 liters
Overall dimensions W x D x H: 350 x 555 x 256 mm
All stainless steel baths are designed to operate up to a maximum temperature of +200°C.
订货号: 6028
for polycarbonate baths 106A to 110A
Immersion depth 50 mm
Bore holes 12 x Ø22
更多
for polycarbonate baths 106A to 110A
Immersion depth 50 mm
Bore holes 12 x Ø22
订货号: 6029
for polycarbonate baths 106A to 110A
Immersion depth 55 mm
Bore holes 20 x Ø17
更多
for polycarbonate baths 106A to 110A
Immersion depth 55 mm
Bore holes 20 x Ø17
订货号: 6030
for polycarbonate baths 106A to 110A
Immersion depth 95 mm
Bore holes 20 x Ø17
更多
for polycarbonate baths 106A to 110A
Immersion depth 95 mm
Bore holes 20 x Ø17
订货号: 6031
for polycarbonate baths 106A to 110A
Immersion depth 45 mm (Hemolyses)
Bore holes 30 x Ø13
更多
for polycarbonate baths 106A to 110A
Immersion depth 45 mm (Hemolyses)
Bore holes 30 x Ø13
订货号: 6032
for polycarbonate baths 106A to 110A
Immersion depth 50 mm
Bore holes 6 x Ø30
更多
for polycarbonate baths 106A to 110A
Immersion depth 50 mm
Bore holes 6 x Ø30
订货号: 6033
for polycarbonate baths 106A to 110A
Immersion depth 25 mm (Eppendorf)
Bore holes 36 x Ø11
更多
for polycarbonate baths 106A to 110A
Immersion depth 25 mm (Eppendorf)
Bore holes 36 x Ø11
订货号: 6037
for baths 112A, 118A, 212B to 225B and K12 to K25
Immersion depth 100 mm
Bore holes 36 x Ø18
更多
for baths 112A, 118A, 212B to 225B and K12 to K25
Immersion depth 100 mm
Bore holes 36 x Ø18
订货号: 6038
for baths 112A, 118A, 212B to 225B and K12 to K25
Immersion depth 70 mm
Bore holes 45 x Ø13
更多
for baths 112A, 118A, 212B to 225B and K12 to K25
Immersion depth 70 mm
Bore holes 45 x Ø13
订货号: 6039
for baths 112A, 118A, 212B to 225B and K12 to K25
Immersion depth 100 mm
Bore holes 46 x Ø18
更多
for baths 112A, 118A, 212B to 225B and K12 to K25
Immersion depth 100 mm
Bore holes 46 x Ø18
订货号: 6040
for baths 112A, 118A, 212B to 225B and K12 to K25
Immersoin depth 70 mm
Bore holes 58 x Ø13
更多
for baths 112A, 118A, 212B to 225B and K12 to K25
Immersoin depth 70 mm
Bore holes 58 x Ø13
订货号: 6049
Dimensions (L x W x H): 265 x 145 x 185 mm
更多
Dimensions (L x W x H): 265 x 145 x 185 mm
订货号: 6050
Dimensions (L x W x H): 245 x 240 x 189 mm
更多
Dimensions (L x W x H): 245 x 240 x 189 mm
订货号: 6052
Dimensions (L x W x H): 210 x 282 x 205 mm
with drain on short side
更多
Dimensions (L x W x H): 210 x 282 x 205 mm
with drain on short side
订货号: 6053
Dimensions (L x W x H): 250 x 420 x 205 mm
with drain on short side
更多
Dimensions (L x W x H): 250 x 420 x 205 mm
with drain on short side
订货号: 6054
Dimensions (L x W x H): 370 x 520 x 205 mm
with drain on short side
更多
Dimensions (L x W x H): 370 x 520 x 205 mm
with drain on short side
订货号: 6055
Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffix "-L" to the order number).
Dimensions/bath volume according to customer specification, please specify when ordering.
Available options (at additional cost):
- inlet and outlet connections into the bath (direct temperature control)
- inlet and outlet connections into the double-wall (indirect temperature control)
更多
Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffix "-L" to the order number).
Dimensions/bath volume according to customer specification, please specify when ordering.
Available options (at additional cost):
- inlet and outlet connections into the bath (direct temperature control)
- inlet and outlet connections into the double-wall (indirect temperature control)
订货号: 6056
Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffix "-L" to the order number).
Dimensions/bath volume according to customer specification, please specify when ordering.
Available options (at additional cost):
- inlet and outlet connections into the bath (direct temperature control)
- inlet and outlet connections into the double-wall (indirect temperature control)
更多
Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffix "-L" to the order number).
Dimensions/bath volume according to customer specification, please specify when ordering.
Available options (at additional cost):
- inlet and outlet connections into the bath (direct temperature control)
- inlet and outlet connections into the double-wall (indirect temperature control)
订货号: 6057
Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffix "-L" to the order number).
Dimensions/bath volume according to customer specification, please specify when ordering.
Available options (at additional cost):
- inlet and outlet connections into the bath (direct temperature control)
- inlet and outlet connections into the double-wall (indirect temperature control)
更多
Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffix "-L" to the order number).
Dimensions/bath volume according to customer specification, please specify when ordering.
Available options (at additional cost):
- inlet and outlet connections into the bath (direct temperature control)
- inlet and outlet connections into the double-wall (indirect temperature control)
订货号: 6058
Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffix "-L" to the order number).
Dimensions/bath volume according to customer specification, please specify when ordering.
Available options (at additional cost):
- inlet and outlet connections into the bath (direct temperature control)
- inlet and outlet connections into the double-wall (indirect temperature control)
更多
Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffix "-L" to the order number).
Dimensions/bath volume according to customer specification, please specify when ordering.
Available options (at additional cost):
- inlet and outlet connections into the bath (direct temperature control)
- inlet and outlet connections into the double-wall (indirect temperature control)
订货号: 6059
Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffix "-L" to the order number).
Dimensions/bath volume according to customer specification, please specify when ordering.
Available options (at additional cost):
- inlet and outlet connections into the bath (direct temperature control)
- inlet and outlet connections into the double-wall (indirect temperature control)
更多
Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffix "-L" to the order number).
Dimensions/bath volume according to customer specification, please specify when ordering.
Available options (at additional cost):
- inlet and outlet connections into the bath (direct temperature control)
- inlet and outlet connections into the double-wall (indirect temperature control)
订货号: 6060
Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffix "-L" to the order number).
Dimensions/bath volume according to customer specification, please specify when ordering.
Available options (at additional cost):
- inlet and outlet connections into the bath (direct temperature control)
- inlet and outlet connections into the double-wall (indirect temperature control)
更多
Insulated stainless steel baths with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffix "-L" to the order number).
Dimensions/bath volume according to customer specification, please specify when ordering.
Available options (at additional cost):
- inlet and outlet connections into the bath (direct temperature control)
- inlet and outlet connections into the double-wall (indirect temperature control)
订货号: 6064
with 1,5 m cable
Sensor length: 400 mm, Ø 8 mm
更多
with 1,5 m cable
Sensor length: 400 mm, Ø 8 mm
订货号: 6070
Temperature range: -20°C...60°C
Length: variable
Internal diameter: 12 mm
Material: PVC
Sold per meter
更多
Temperature range: -20°C...60°C
Length: variable
Internal diameter: 12 mm
Material: PVC
Sold per meter
订货号: 6071
Temperature range: -20°C...60°C
Length: variable
Internal diameter: 8 mm
Material: PVC
Sold per meter
更多
Temperature range: -20°C...60°C
Length: variable
Internal diameter: 8 mm
Material: PVC
Sold per meter
订货号: 6072
Temperature range: -20°C...60°C
Length: variable
Max. pressure at 20°C: low pressure
Internal diameter: 3,2 mm
Thickness: 1,0 mm
Material: PVC
Sold per meter
更多
Temperature range: -20°C...60°C
Length: variable
Max. pressure at 20°C: low pressure
Internal diameter: 3,2 mm
Thickness: 1,0 mm
Material: PVC
Sold per meter
订货号: 6073
Temperature range: -25°C...110°C
Length: variable
Max. pressure at 20°C: low pressure
Internal diameter: 12 mm
Material: NBR
Sold per meter
更多
Temperature range: -25°C...110°C
Length: variable
Max. pressure at 20°C: low pressure
Internal diameter: 12 mm
Material: NBR
Sold per meter
订货号: 6075
Temperature range: -25°C...110°C
Length: variable
Max. pressure at 20°C: low pressure
Internal diameter: 8 mm
Material: NBR
Sold per meter
更多
Temperature range: -25°C...110°C
Length: variable
Max. pressure at 20°C: low pressure
Internal diameter: 8 mm
Material: NBR
Sold per meter
订货号: 6076
Temperature range.: -40°C...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of the planned heat transfer fluid before using it.
Sold per meter
更多
Temperature range.: -40°C...180°C
Nominal width: 12 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of the planned heat transfer fluid before using it.
Sold per meter
订货号: 6077
Temperature range: -40°C...180°C
Nominal width: 8 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of the planned heat transfer fluid before using it.
Sold per meter
更多
Temperature range: -40°C...180°C
Nominal width: 8 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of the planned heat transfer fluid before using it.
Sold per meter
订货号: 6079
Temperature range: -20°C...180°C
Length: variable
Max. pressure at 20°C: low pressure
Internal diameter: 8 mm
Material: FKM
Sold per meter
更多
Temperature range: -20°C...180°C
Length: variable
Max. pressure at 20°C: low pressure
Internal diameter: 8 mm
Material: FKM
Sold per meter
订货号: 6084
Material: Metal
Temperature range: -100°C...350°C
Length: 100 cm
Connection: M16x1
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
更多
Material: Metal
Temperature range: -100°C...350°C
Length: 100 cm
Connection: M16x1
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
订货号: 6085
Material: Metal
Temperature range: -100°C...350°C
Length: 150 cm
Connection: M16x1
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
更多
Material: Metal
Temperature range: -100°C...350°C
Length: 150 cm
Connection: M16x1
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
订货号: 6105
with 1,5 m cable
Sensor length: 200 mm, Ø 6 mm
更多
with 1,5 m cable
Sensor length: 200 mm, Ø 6 mm
订货号: 6136
Material: Metal
Temperature range: -100°C...350°C
Length: 200 cm
Connection: M16x1
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
更多
Material: Metal
Temperature range: -100°C...350°C
Length: 200 cm
Connection: M16x1
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
订货号: 6138
with 1,5 m cable
Sensor length: 180 mm, Ø 6 mm
更多
with 1,5 m cable
Sensor length: 180 mm, Ø 6 mm
订货号: 6146
RS232 control cable
from: Huber unit / Com.G@te, 9 pin Sub-D plug (male)
to: PC / Notebook, 9 pin Sub-D socket (female)
Length 3 m
更多
RS232 control cable
from: Huber unit / Com.G@te, 9 pin Sub-D plug (male)
to: PC / Notebook, 9 pin Sub-D socket (female)
Length 3 m
订货号: 6155
Temperature range for:
- open/closed systems: 20°C...190°C
Material: mineral oil
Colour: light yellow
Viscosity at 25°C: 40 mm²/s
Can: 5 liters
更多
Temperature range for:
- open/closed systems: 20°C...190°C
Material: mineral oil
Colour: light yellow
Viscosity at 25°C: 40 mm²/s
Can: 5 liters
订货号: 6156
Temperature range for:
- open/closed systems: 20°C...190°C
Material: mineral oil
Colour: light yellow
Viscosity at 25°C: 40 mm²/s
Can: 20 liters
更多
Temperature range for:
- open/closed systems: 20°C...190°C
Material: mineral oil
Colour: light yellow
Viscosity at 25°C: 40 mm²/s
Can: 20 liters
订货号: 6157
Temperature range for:
- open/closed systems: 20°C...225°C
- Unistats (only closed): 20°C...275°C
Material: silicone oil
Colour: colourless, clear
Viscosity at 25°C: 50 mm²/s
Can: 5 liters
更多
Temperature range for:
- open/closed systems: 20°C...225°C
- Unistats (only closed): 20°C...275°C
Material: silicone oil
Colour: colourless, clear
Viscosity at 25°C: 50 mm²/s
Can: 5 liters
订货号: 6158
Temperature range for:
- open/closed systems: 20°C...225°C
- Unistats (only closed): 20°C...275°C
Material: silicone oil
Colour: colourless, clear
Viscosity at 25°C: 50 mm²/s
Can: 10 liters
更多
Temperature range for:
- open/closed systems: 20°C...225°C
- Unistats (only closed): 20°C...275°C
Material: silicone oil
Colour: colourless, clear
Viscosity at 25°C: 50 mm²/s
Can: 10 liters
订货号: 6161
Temperature range for:
- open/closed systems: -20°C...195°C
- Unistats (only closed): -20°C...235°C
Material: silicone oil
Colour: colourless, clear
Viscosity at 25°C: 20 mm²/s
Can: 5 liters
更多
Temperature range for:
- open/closed systems: -20°C...195°C
- Unistats (only closed): -20°C...235°C
Material: silicone oil
Colour: colourless, clear
Viscosity at 25°C: 20 mm²/s
Can: 5 liters
订货号: 6162
Temperature range for:
- open/closed systems: -20°C...195°C
- Unistats (only closed): -20°C...235°C
Material: silicone oil
Colour: colourless, clear
Viscosity at 25°C: 20 mm²/s
Can: 10 liters
更多
Temperature range for:
- open/closed systems: -20°C...195°C
- Unistats (only closed): -20°C...235°C
Material: silicone oil
Colour: colourless, clear
Viscosity at 25°C: 20 mm²/s
Can: 10 liters
订货号: 6163
Temperature range for:
- open/closed systems: -40°C...165°C
- Unistats (only closed): -40°C...220°C
Material: silicone oil
Colour: colourless, clear
Viscosity at 25°C: 10 mm²/s
Can: 5 liters
更多
Temperature range for:
- open/closed systems: -40°C...165°C
- Unistats (only closed): -40°C...220°C
Material: silicone oil
Colour: colourless, clear
Viscosity at 25°C: 10 mm²/s
Can: 5 liters
订货号: 6164
Temperature range for:
- open/closed systems: -40°C...165°C
- Unistats (only closed): -40°C...220°C
Material: silicone oil
Colour: colourless, clear
Viscosity at 25°C: 10 mm²/s
Can: 10 liters
更多
Temperature range for:
- open/closed systems: -40°C...165°C
- Unistats (only closed): -40°C...220°C
Material: silicone oil
Colour: colourless, clear
Viscosity at 25°C: 10 mm²/s
Can: 10 liters
订货号: 6165
Temperature range for:
- open/closed systems: -60°C...115°C
- Unistats (only closed): -60°C...200°C
Material: silicone oil
Colour: colourless, clear
Viscosity at 25°C: 5 mm²/s
Can: 5 liters
更多
Temperature range for:
- open/closed systems: -60°C...115°C
- Unistats (only closed): -60°C...200°C
Material: silicone oil
Colour: colourless, clear
Viscosity at 25°C: 5 mm²/s
Can: 5 liters
订货号: 6166
Temperature range for:
- open/closed systems: -60°C...115°C
- Unistats (only closed): -60°C...200°C
Material: silicone oil
Colour: colourless, clear
Viscosity at 25°C: 5 mm²/s
Can: 10 liters
更多
Temperature range for:
- open/closed systems: -60°C...115°C
- Unistats (only closed): -60°C...200°C
Material: silicone oil
Colour: colourless, clear
Viscosity at 25°C: 5 mm²/s
Can: 10 liters
订货号: 6167
Temperature range for:
- open/closed systems: -80°C...55°C
Material: silicone oil
Colour: colourless, clear
Viscosity at 25°C: 3 mm²/s
Can: 5 liters
更多
Temperature range for:
- open/closed systems: -80°C...55°C
Material: silicone oil
Colour: colourless, clear
Viscosity at 25°C: 3 mm²/s
Can: 5 liters
订货号: 6168
Temperature range for:
- open/closed systems: -80°C...55°C
Material: silicone oil
Colour: colourless, clear
Viscosity at 25°C: 3 mm²/s
Can: 10 liters
更多
Temperature range for:
- open/closed systems: -80°C...55°C
Material: silicone oil
Colour: colourless, clear
Viscosity at 25°C: 3 mm²/s
Can: 10 liters
订货号: 6170
Temperature range depends on mixing ratio
Material: Monoethylenglycol, concentrate
Mixing ratio: 50% MEG / 50% water
Colour: light yellow, clear
Viscosity at 25°C: approx. 2 mm²/s
Can: 10 liters
更多
Temperature range depends on mixing ratio
Material: Monoethylenglycol, concentrate
Mixing ratio: 50% MEG / 50% water
Colour: light yellow, clear
Viscosity at 25°C: approx. 2 mm²/s
Can: 10 liters
订货号: 6171
Temperature range depends on mixing ratio
Material: Monoethylenglycol, concentrate
Mixing ratio: 50% MEG / 50% water
Colour: light yellow, clear
Viscosity at 25°C: approx. 2 mm²/s
Can: 50 liters
更多
Temperature range depends on mixing ratio
Material: Monoethylenglycol, concentrate
Mixing ratio: 50% MEG / 50% water
Colour: light yellow, clear
Viscosity at 25°C: approx. 2 mm²/s
Can: 50 liters
订货号: 6176
Bath cover isolated, for stainless steel bath 5,5 liters (#6052)
更多
Bath cover isolated, for stainless steel bath 5,5 liters (#6052)
订货号: 6178
Bath cover isolated, for stainless steel bath 11 liters (#6053)
更多
Bath cover isolated, for stainless steel bath 11 liters (#6053)
订货号: 6180
Bath cover isolated, for stainless steel bath 22 liters (#6054)
更多
Bath cover isolated, for stainless steel bath 22 liters (#6054)
订货号: 61998
Cover set for interfaces (USB, RS232, Pt100) in the colour RED for KISS heating and cooling circulators.
To replace the grey standard covers. Available free of charge with new orders of any KISS models. Please specify article number when ordering.
更多
Cover set for interfaces (USB, RS232, Pt100) in the colour RED for KISS heating and cooling circulators.
To replace the grey standard covers. Available free of charge with new orders of any KISS models. Please specify article number when ordering.
订货号: 61999
Cover set for interfaces (USB, RS232, Pt100) in the colour BLUE for KISS heating and cooling circulators.
To replace the grey standard covers. Available free of charge with new orders of any KISS models. Please specify article number when ordering.
更多
Cover set for interfaces (USB, RS232, Pt100) in the colour BLUE for KISS heating and cooling circulators.
To replace the grey standard covers. Available free of charge with new orders of any KISS models. Please specify article number when ordering.
订货号: 6205
Sensor open in protective pipe Ø 8 mm
(Pt100) with 1,5 m cable
Sensor length: 170 mm, Ø 8 mm
更多
Sensor open in protective pipe Ø 8 mm
(Pt100) with 1,5 m cable
Sensor length: 170 mm, Ø 8 mm
订货号: 6215
Insulated stainless steel bath with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffix "-L" to the order number).
Dimensions/bath volume: according to customer specifications, please specify when ordering.
Available options (at additional cost):
- inlet and outlet connections into the bath (direct temperature control)
- inlet and outlet connections into the double-wall (indirect temperature control)
更多
Insulated stainless steel bath with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffix "-L" to the order number).
Dimensions/bath volume: according to customer specifications, please specify when ordering.
Available options (at additional cost):
- inlet and outlet connections into the bath (direct temperature control)
- inlet and outlet connections into the double-wall (indirect temperature control)
订货号: 6255
Material: Metal
Temperature range: -100°C...350°C
Length: 300 cm
Connection: M16x1
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
更多
Material: Metal
Temperature range: -100°C...350°C
Length: 300 cm
Connection: M16x1
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
订货号: 6258
Temperature range for:
- open/closed systems: -90°C...55°C
- Unistats (only closed): -90°C...170°C
Material: silicone oil
Colour: colourless, clear
Viscosity at 25°C: 2 mm²/s
Can: 5 liters
更多
Temperature range for:
- open/closed systems: -90°C...55°C
- Unistats (only closed): -90°C...170°C
Material: silicone oil
Colour: colourless, clear
Viscosity at 25°C: 2 mm²/s
Can: 5 liters
订货号: 6259
Temperature range for:
- open/closed systems: -90°C...55°C
- Unistats (only closed): -90°C...170°C
Material: silicone oil
Colour: colourless, clear
Viscosity at 25°C: 2 mm²/s
Can: 10 liters
更多
Temperature range for:
- open/closed systems: -90°C...55°C
- Unistats (only closed): -90°C...170°C
Material: silicone oil
Colour: colourless, clear
Viscosity at 25°C: 2 mm²/s
Can: 10 liters
订货号: 6275
Temperature range for:
- open/closed systems: -80°C...100°C
- Unistats (only closed): -80°C...250°C
Material: silicone oil
Colour: colourless, clear
Viscosity at 25°C: 7 mm²/s
Can: 5 liters
更多
Temperature range for:
- open/closed systems: -80°C...100°C
- Unistats (only closed): -80°C...250°C
Material: silicone oil
Colour: colourless, clear
Viscosity at 25°C: 7 mm²/s
Can: 5 liters
订货号: 6276
Temperature range for:
- open/closed systems: -80°C...100°C
- Unistats (only closed): -80°C...250°C
Material: silicone oil
Colour: colourless, clear
Viscosity at 25°C: 7 mm²/s
Can: 10 liters
更多
Temperature range for:
- open/closed systems: -80°C...100°C
- Unistats (only closed): -80°C...250°C
Material: silicone oil
Colour: colourless, clear
Viscosity at 25°C: 7 mm²/s
Can: 10 liters
订货号: 6292
with coupling and plug (Lemosa)
Cable length: 3 m
更多
with coupling and plug (Lemosa)
Cable length: 3 m
订货号: 6319
Control cable Compatible Control CC
complete / open (3m)
更多
Control cable Compatible Control CC
complete / open (3m)
订货号: 6329
Insulated stainless steel bath with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffix "-L" to the order number).
Dimensions/bath volume: according to customer specifications, please specify when ordering.
Available options (at additional cost):
- inlet and outlet connections into the bath (direct temperature control)
- inlet and outlet connections into the double-wall (indirect temperature control)
更多
Insulated stainless steel bath with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffix "-L" to the order number).
Dimensions/bath volume: according to customer specifications, please specify when ordering.
Available options (at additional cost):
- inlet and outlet connections into the bath (direct temperature control)
- inlet and outlet connections into the double-wall (indirect temperature control)
订货号: 6330
Insulated stainless steel bath with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffix "-L" to the order number).
Dimensions/bath volume: according to customer specifications, please specify when ordering.
Available options (at additional cost):
- inlet and outlet connections into the bath (direct temperature control)
- inlet and outlet connections into the double-wall (indirect temperature control)
更多
Insulated stainless steel bath with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffix "-L" to the order number).
Dimensions/bath volume: according to customer specifications, please specify when ordering.
Available options (at additional cost):
- inlet and outlet connections into the bath (direct temperature control)
- inlet and outlet connections into the double-wall (indirect temperature control)
订货号: 6331
Insulated stainless steel bath with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffix "-L" to the order number).
Dimensions/bath volume: according to customer specifications, please specify when ordering.
Available options (at additional cost):
- inlet and outlet connections into the bath (direct temperature control)
- inlet and outlet connections into the double-wall (indirect temperature control)
更多
Insulated stainless steel bath with customised dimensions and bath volume. The drain is on the short side as standard but can be also fitted on the long side on request (please add the suffix "-L" to the order number).
Dimensions/bath volume: according to customer specifications, please specify when ordering.
Available options (at additional cost):
- inlet and outlet connections into the bath (direct temperature control)
- inlet and outlet connections into the double-wall (indirect temperature control)
订货号: 6350
Temperature range: -60°C...180°C
Nominal width: 8 mm
Material: PTFE
Sold per meter
更多
Temperature range: -60°C...180°C
Nominal width: 8 mm
Material: PTFE
Sold per meter
订货号: 6351
Temperature range: -60°C...180°C
Nominal width: 12 mm
Material: PTFE
Sold per meter
更多
Temperature range: -60°C...180°C
Nominal width: 12 mm
Material: PTFE
Sold per meter
订货号: 6365
The cover is drilled at the factory according to your specifications. Please calculate 20,00 EUR per hole (Ø4 - Ø10 mm).
Please let us know the desired number of holes and their diameter.
更多
The cover is drilled at the factory according to your specifications. Please calculate 20,00 EUR per hole (Ø4 - Ø10 mm).
Please let us know the desired number of holes and their diameter.
订货号: 6366
The cover is drilled at the factory according to your specifications. Please calculate 20,00 EUR per hole (Ø4 - Ø10 mm).
Please let us know the desired number of holes and their diameter.
更多
The cover is drilled at the factory according to your specifications. Please calculate 20,00 EUR per hole (Ø4 - Ø10 mm).
Please let us know the desired number of holes and their diameter.
订货号: 6375
Thickness: 20,5 mm
Internal diameter: 43,5 - 47,5 mm
Sold per meter
更多
Thickness: 20,5 mm
Internal diameter: 43,5 - 47,5 mm
Sold per meter
订货号: 6376
Thickness: 21 mm
Internal diameter: 49,5 - 51,5 mm
Sold per meter
更多
Thickness: 21 mm
Internal diameter: 49,5 - 51,5 mm
Sold per meter
订货号: 6377
Thickness: 21,5 mm
Internal diameter: 58 - 60 mm
Sold per meter
更多
Thickness: 21,5 mm
Internal diameter: 58 - 60 mm
Sold per meter
订货号: 6386
Material: Metal
Temperature range: -100°C...350°C
Length: 150 cm
Nominal width: 20 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps.
更多
Material: Metal
Temperature range: -100°C...350°C
Length: 150 cm
Nominal width: 20 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps.
订货号: 6417
Temperature range: -20°C ... 150°C, insulated
The bypass is easily bendable.
更多
Temperature range: -20°C ... 150°C, insulated
The bypass is easily bendable.
订货号: 6426
Material: Metal
Temperature range: -100°C...350°C
Length: 100 cm
Connection: M30x1,5
Nominal width: 20 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
更多
Material: Metal
Temperature range: -100°C...350°C
Length: 100 cm
Connection: M30x1,5
Nominal width: 20 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
订货号: 6427
Material: Metal
Temperature range: -100°C...350°C
Length: 200 cm
Connection: M30x1,5
Nominal width: 20 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
更多
Material: Metal
Temperature range: -100°C...350°C
Length: 200 cm
Connection: M30x1,5
Nominal width: 20 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
订货号: 6428
Material: Metal
Temperature range: -100°C...350°C
Length: 300 cm
Connection: M30x1,5
Nominal width: 20 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
更多
Material: Metal
Temperature range: -100°C...350°C
Length: 300 cm
Connection: M30x1,5
Nominal width: 20 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
订货号: 6479
Valid only for Unistats
Temperature range for:
- closed systems: -90°C...170°C
- closed systems (with Inertgas): -90°C...200°C
Colour: yellowish, clear
Viscosity at 25°C: 2 mm²/s
Can: 10 liters
更多
Valid only for Unistats
Temperature range for:
- closed systems: -90°C...170°C
- closed systems (with Inertgas): -90°C...200°C
Colour: yellowish, clear
Viscosity at 25°C: 2 mm²/s
Can: 10 liters
订货号: 6488
Material: Metal
Temperature range: -100°C...350°C
Length: 50 cm
Connection: M30x1,5
Nominal width: 20 mm
更多
Material: Metal
Temperature range: -100°C...350°C
Length: 50 cm
Connection: M30x1,5
Nominal width: 20 mm
订货号: 6496
Also required: Hose #9609
更多
Also required: Hose #9609
订货号: 66108
Software solution for controlling Huber units as well as for visualisation and documentation of process relevant data. The installation package contains a free version, a 30 days trial version and paid full version with license key entry.
The software SpyControl is available in the download section.
Suitable for PC and notebook with Microsoft Windows operating system.
更多
Software solution for controlling Huber units as well as for visualisation and documentation of process relevant data. The installation package contains a free version, a 30 days trial version and paid full version with license key entry.
The software SpyControl is available in the download section.
Suitable for PC and notebook with Microsoft Windows operating system.
订货号: 6655
Material: Metal
Temperature range: -100°C...350°C
Length: 100 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
更多
Material: Metal
Temperature range: -100°C...350°C
Length: 100 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
订货号: 6656
Material: Metal
Temperature range: -100°C...350°C
Length: 150 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
更多
Material: Metal
Temperature range: -100°C...350°C
Length: 150 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
订货号: 6657
Material: Metal
Temperature range: -100°C...350°C
Length: 200 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
更多
Material: Metal
Temperature range: -100°C...350°C
Length: 200 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
订货号: 6658
Material: Metal
Temperature range: -100°C...350°C
Length: 300 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
更多
Material: Metal
Temperature range: -100°C...350°C
Length: 300 cm
Connection: M38x1,5
Nominal width: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
订货号: 6672
Valid only for Unistats
Temperature range for:
- closed systems: 20°C...170°C
- closed systems (with Inertgas): 20°C...340°C
Colour: orange, clear
Viscosity at 25°C: 32 mm²/s
Can: 5 liters
更多
Valid only for Unistats
Temperature range for:
- closed systems: 20°C...170°C
- closed systems (with Inertgas): 20°C...340°C
Colour: orange, clear
Viscosity at 25°C: 32 mm²/s
Can: 5 liters
订货号: 6673
Valid only for Unistats
Temperature range for:
- closed systems: 20°C...170°C
- closed systems (with Inertgas): 20°C...340°C
Colour: orange, clear
Viscosity at 25°C: 32 mm²/s
Can: 10 liters
更多
Valid only for Unistats
Temperature range for:
- closed systems: 20°C...170°C
- closed systems (with Inertgas): 20°C...340°C
Colour: orange, clear
Viscosity at 25°C: 32 mm²/s
Can: 10 liters
订货号: 6683
Width bath opening (W x D): 235 x 290 mm
Bath depth: 150 mm
Bath volume: 8,5 liters
Overall dimensions (W x D x H): 290 x 350 x 206 mm
All stainless steel baths are designed to operate up to a maximum temperature of +200°C.
更多
Width bath opening (W x D): 235 x 290 mm
Bath depth: 150 mm
Bath volume: 8,5 liters
Overall dimensions (W x D x H): 290 x 350 x 206 mm
All stainless steel baths are designed to operate up to a maximum temperature of +200°C.
订货号: 6684
Width bath opening (W x D): 290 x 320 mm
Bath depth: 150 mm
Bath volume: 12 liters
Overall dimensions (W x D x H): 350 x 375 x 206 mm
All stainless steel baths are designed to operate up to a maximum temperature of +200°C.
更多
Width bath opening (W x D): 290 x 320 mm
Bath depth: 150 mm
Bath volume: 12 liters
Overall dimensions (W x D x H): 350 x 375 x 206 mm
All stainless steel baths are designed to operate up to a maximum temperature of +200°C.
订货号: 6685
Width bath opening (W x D): 290 x 500 mm
Bath depth: 150 mm
Bath volume: 20 liters
Overall dimensions (W x D x H): 350 x 555 x 206 mm
All stainless steel baths are designed to operate up to a maximum temperature of +200°C.
更多
Width bath opening (W x D): 290 x 500 mm
Bath depth: 150 mm
Bath volume: 20 liters
Overall dimensions (W x D x H): 350 x 555 x 206 mm
All stainless steel baths are designed to operate up to a maximum temperature of +200°C.
订货号: 6784
Material: Metal
Temperature range: -120°C...400°C
Length: 100 cm
Connection: M24x1,5
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps.
更多
Material: Metal
Temperature range: -120°C...400°C
Length: 100 cm
Connection: M24x1,5
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps.
订货号: 6785
Material: Metal
Temperature range: -120°C...400°C
Length: 150 cm
Connection: M24x1,5
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps.
更多
Material: Metal
Temperature range: -120°C...400°C
Length: 150 cm
Connection: M24x1,5
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps.
订货号: 6786
Material: Metal
Temperature range: -120°C...400°C
Length: 200 cm
Connection: M24x1,5
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
更多
Material: Metal
Temperature range: -120°C...400°C
Length: 200 cm
Connection: M24x1,5
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
订货号: 6787
Material: Metal
Temperature range: -120°C...400°C
Length: 300 cm
Connection: M24x1,5
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
更多
Material: Metal
Temperature range: -120°C...400°C
Length: 300 cm
Connection: M24x1,5
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
订货号: 6839
for all baths/thermostats
connection screw G3/8"
with sealing cap
(not suitable for polycarbonate baths 112A, 118A, 130A)
更多
for all baths/thermostats
connection screw G3/8"
with sealing cap
(not suitable for polycarbonate baths 112A, 118A, 130A)
订货号: 6933
Temperature range: -20°C ... 150°C, insulated
The bypass is easily bendable.
更多
Temperature range: -20°C ... 150°C, insulated
The bypass is easily bendable.
订货号: 6953
Temperature sensor Pt100, M38x1,5, for fluid outlet or return
更多
Temperature sensor Pt100, M38x1,5, for fluid outlet or return
订货号: 9258
Temperature range: -10°C ... 150°C, insulated
The bypass is easily bendable.
更多
Temperature range: -10°C ... 150°C, insulated
The bypass is easily bendable.
订货号: 9274
Material: Metal
Temperature range: -100°C...350°C
Length: 100 cm
Connection: M24x1,5
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
更多
Material: Metal
Temperature range: -100°C...350°C
Length: 100 cm
Connection: M24x1,5
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
订货号: 9275
Material: Metal
Temperature range: -100°C...350°C
Length: 150 cm
Connection: M24x1,5
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
更多
Material: Metal
Temperature range: -100°C...350°C
Length: 150 cm
Connection: M24x1,5
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
订货号: 9276
Material: Metal
Temperature range: -100°C...350°C
Length: 200 cm
Connection: M24x1,5
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
更多
Material: Metal
Temperature range: -100°C...350°C
Length: 200 cm
Connection: M24x1,5
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
订货号: 9277
Material: Metal
Temperature range: -100°C...350°C
Length: 300 cm
Connection: M24x1,5
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
更多
Material: Metal
Temperature range: -100°C...350°C
Length: 300 cm
Connection: M24x1,5
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
订货号: 9325
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 100 cm
Connection: M24x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 12 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
更多
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 100 cm
Connection: M24x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 12 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
订货号: 9326
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 150 cm
Connection: M24x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 12 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
更多
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 150 cm
Connection: M24x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 12 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
订货号: 9327
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 200 cm
Connection: M24x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 12 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
更多
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 200 cm
Connection: M24x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 12 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
订货号: 9328
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 300 cm
Connection: M24x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 12 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
更多
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 300 cm
Connection: M24x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 12 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
订货号: 9336
External pressure sensor M30x1,5
for VPC bypass
(Connection on VPC)
更多
External pressure sensor M30x1,5
for VPC bypass
(Connection on VPC)
订货号: 9337
External pressure sensor M38x1,5
for VPC bypass
(Connection on VPC)
更多
External pressure sensor M38x1,5
for VPC bypass
(Connection on VPC)
订货号: 9338
External pressure sensor M24x1,5
for VPC bypass
(Connection on VPC)
更多
External pressure sensor M24x1,5
for VPC bypass
(Connection on VPC)
订货号: 9339
Temperature range: -20°C ... 150°C, insulated
The bypass is easily bendable.
更多
Temperature range: -20°C ... 150°C, insulated
The bypass is easily bendable.
订货号: 9340
Temperature range: -20°C ... 150°C, insulated
The bypass is easily bendable.
更多
Temperature range: -20°C ... 150°C, insulated
The bypass is easily bendable.
订货号: 9414
Temperature range: -20°C ... 150°C, insulated
The bypass is easily bendable.
更多
Temperature range: -20°C ... 150°C, insulated
The bypass is easily bendable.
订货号: 9431
Temperature range: -40°C...180°C
Nominal width: 6 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of the planned heat transfer fluid before using it.
Sold per meter
更多
Temperature range: -40°C...180°C
Nominal width: 6 mm
Material: Silicone
Silicone hoses are not suitable for heat transfer fluids which contain Silicone.
Please check the safety data sheet of the planned heat transfer fluid before using it.
Sold per meter
订货号: 9495
Upgrade package with the following additional features
(compared to E-grade "Basic"):
- Temperature control mode (Internal/Process)
- Process data logging direct to USB stick
- Display resolution 0,01°C
- Programmer with 3 programs (max. 15 steps)
- Ramp function (linear)
- TAC (True Adaptive Control)
- Saving/loading via USB
(package: 2)
更多
Upgrade package with the following additional features
(compared to E-grade "Basic"):
- Temperature control mode (Internal/Process)
- Process data logging direct to USB stick
- Display resolution 0,01°C
- Programmer with 3 programs (max. 15 steps)
- Ramp function (linear)
- TAC (True Adaptive Control)
- Saving/loading via USB
(package: 2)
订货号: 9496
Upgrade package with the following additional features
(compared to E-grade "Basic"):
- Temperature control mode (Internal/Process)
- Process data logging direct to USB stick
- Display resolution 0,01°C
- TAC (True Adaptive Control)
- Saving/loading via USB
- Programmer with 10 programs (max. 100 steps)
- Calendar start
- Ramp function (linear and non-Linear)
- User menus can be customised (Administrator Level)
- 2nd set point
(package: 3)
更多
Upgrade package with the following additional features
(compared to E-grade "Basic"):
- Temperature control mode (Internal/Process)
- Process data logging direct to USB stick
- Display resolution 0,01°C
- TAC (True Adaptive Control)
- Saving/loading via USB
- Programmer with 10 programs (max. 100 steps)
- Calendar start
- Ramp function (linear and non-Linear)
- User menus can be customised (Administrator Level)
- 2nd set point
(package: 3)
订货号: 9580
- for external open baths
- only suitable for units with pressure and suction pump
Download: <a href="https://www.huber-online.com/fileadmin/user_upload/huber-online.com/download_center/Betriebsanleitungen/level-controller_EN.pdf">Installation Guide</a>
更多
- for external open baths
- only suitable for units with pressure and suction pump
Download: <a href="https://www.huber-online.com/fileadmin/user_upload/huber-online.com/download_center/Betriebsanleitungen/level-controller_EN.pdf">Installation Guide</a>
订货号: 9608
Material: Metal
Temperature range: -50...200°C
Length: 100 cm
Connection: M16x1
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
更多
Material: Metal
Temperature range: -50...200°C
Length: 100 cm
Connection: M16x1
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
订货号: 9609
Material: Metal
Temperature range: -50°C...200°C
Length: 150 cm
Connection: M16x1
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
更多
Material: Metal
Temperature range: -50°C...200°C
Length: 150 cm
Connection: M16x1
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
订货号: 9610
Material: Metal
Temperature range: -50°C...200°C
Length: 200 cm
Connection: M16x1
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
更多
Material: Metal
Temperature range: -50°C...200°C
Length: 200 cm
Connection: M16x1
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
订货号: 9611
Material: Metal
Temperature range: -50°C...200°C
Length: 300 cm
Connection: M16x1
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
更多
Material: Metal
Temperature range: -50°C...200°C
Length: 300 cm
Connection: M16x1
Nominal width: 12 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
订货号: 9612
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 100 cm
Connection: M30x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 20 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
更多
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 100 cm
Connection: M30x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 20 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
订货号: 9613
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 150 cm
Connection: M30x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 20 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
更多
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 150 cm
Connection: M30x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 20 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
订货号: 9614
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 200 cm
Connection: M30x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 20 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
更多
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 200 cm
Connection: M30x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 20 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
订货号: 9615
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 300 cm
Connection: M30x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 20 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
更多
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 300 cm
Connection: M30x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 20 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
订货号: 9616
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 100 cm
Connection: M38x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
更多
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 100 cm
Connection: M38x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
订货号: 9617
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 150 cm
Connection: M38x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
更多
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 150 cm
Connection: M38x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
订货号: 9618
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 200 cm
Connection: M38x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
更多
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 200 cm
Connection: M38x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
订货号: 9619
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 300 cm
Connection: M38x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
更多
Industrial plastic material hose with braiding
Temperature range: -60°C...260°C
Length: 300 cm
Connection: M38x1,5
Max. pressure at 20°C: 6 bar
Internal diameter: 25 mm
Insulation: Special insulation with additional smooth silicone hose, ends covered with silicone caps
订货号: 9622
Manually adjustable bypass G1 1/4 with connection for manometer, for Unichillers
Temperature range: -20°C ... 150°C, insulated
For this bypass one of the following pressure gauges must be ordered separately:
Manometer 0-1 bar #64190
Manometer 0-2,5 bar #64189
Manometer 0-4 bar #54398
Manometer 0-10 bar #54399
The bypass is easily bendable.
更多
Manually adjustable bypass G1 1/4 with connection for manometer, for Unichillers
Temperature range: -20°C ... 150°C, insulated
For this bypass one of the following pressure gauges must be ordered separately:
Manometer 0-1 bar #64190
Manometer 0-2,5 bar #64189
Manometer 0-4 bar #54398
Manometer 0-10 bar #54399
The bypass is easily bendable.
订货号: 9623
- Operating temperature range: -100...300 °C
- Temperature stability at -10°C: 0,002 K
- Pump connection: M30x1,5
- Dimension (W x D x H): 300 x 300 x 566 mm
- Width with overflow vessel: 440 mm
- Bath opening (Ø x H): 118 x 385 mm
- Bath volume: 7 liters
- Connections: M30x1,5
Following bath covers are optionally available:
- PTFE -100...200°C #6365
- Stainless steel -100...300°C #6367
- PE plastic #6366
更多
- Operating temperature range: -100...300 °C
- Temperature stability at -10°C: 0,002 K
- Pump connection: M30x1,5
- Dimension (W x D x H): 300 x 300 x 566 mm
- Width with overflow vessel: 440 mm
- Bath opening (Ø x H): 118 x 385 mm
- Bath volume: 7 liters
- Connections: M30x1,5
Following bath covers are optionally available:
- PTFE -100...200°C #6365
- Stainless steel -100...300°C #6367
- PE plastic #6366
订货号: 9684
Temperature range for:
- open/closed systems: -10°C...120°C
Material: synthetic oil
Colour: colourless, clear
Viscosity at 25°C: 8 mm²/s
Can: 5 liters
Not suitable for use with Unichillers
更多
Temperature range for:
- open/closed systems: -10°C...120°C
Material: synthetic oil
Colour: colourless, clear
Viscosity at 25°C: 8 mm²/s
Can: 5 liters
Not suitable for use with Unichillers
订货号: 9685
Temperature range for:
- open/closed systems: -10°C...120°C
Material: synthetic oil
Colour: colourless, clear
Viscosity at 25°C: 8 mm²/s
Can: 10 liters
Not suitable for use with Unichillers
更多
Temperature range for:
- open/closed systems: -10°C...120°C
Material: synthetic oil
Colour: colourless, clear
Viscosity at 25°C: 8 mm²/s
Can: 10 liters
Not suitable for use with Unichillers
订货号: 9726
- regulated, including T-piece
- for Unistats with M30x1,5 connection
- Protection class IP 20 (indoor installation only)
- Bypass loose (is not mounted on the unit)
- Mounted in the pipework (before application), can be mounted permanently or via hose
- max. differential pressure 6 bar
- Installation on the unit only possible in combination with Huber hose M30x1,5
- permissible temperature range: -90°C ... 200°C
更多
- regulated, including T-piece
- for Unistats with M30x1,5 connection
- Protection class IP 20 (indoor installation only)
- Bypass loose (is not mounted on the unit)
- Mounted in the pipework (before application), can be mounted permanently or via hose
- max. differential pressure 6 bar
- Installation on the unit only possible in combination with Huber hose M30x1,5
- permissible temperature range: -90°C ... 200°C
订货号: 9757
- regulated, including T-piece
- for Unistats with G 1 1/4 connection
- Protection class IP 20 (indoor installation only)
- Bypass loose (is not mounted on the unit)
- Mounted in the pipework (before application), can be mounted permanently or via hose
- max. differential pressure 6 bar
- permissible temperature range: -90°C ... 200°C
更多
- regulated, including T-piece
- for Unistats with G 1 1/4 connection
- Protection class IP 20 (indoor installation only)
- Bypass loose (is not mounted on the unit)
- Mounted in the pipework (before application), can be mounted permanently or via hose
- max. differential pressure 6 bar
- permissible temperature range: -90°C ... 200°C
订货号: 9767
- regulated, including T-piece
- for Unichillers with G 3/4 connection
- Protection class IP 20 (indoor installation only)
- Bypass loose (is not mounted on the unit)
- Mounted in the pipework (before application), can be mounted permanently or via hose
- max. differential pressure 6 bar
- permissible temperature range: -90°C ... 200°C
更多
- regulated, including T-piece
- for Unichillers with G 3/4 connection
- Protection class IP 20 (indoor installation only)
- Bypass loose (is not mounted on the unit)
- Mounted in the pipework (before application), can be mounted permanently or via hose
- max. differential pressure 6 bar
- permissible temperature range: -90°C ... 200°C
订货号: 9771
A breather controller is available as an accessory for our Unistats. This allows to realise an inert gas overlay of the thermal fluid in the expansion vessel. Advantages of the breather controller are a longer life-time of the heat transfer fluid as a result of the reduced oxidation as well as an extended temperature range. The breather control limits the pressure and consists of the atmospheric sealing kit comprising of the following parts on a mounting plate:
- Atmosperic sealing kit
- Pressure regulator 20-200 mbar
- Safety valve 200 mbar opening
- Bubble counter
- Connection hose
- Max. pressure 1 bar
- Connection G1/2
Unit not suitable for outdoor installation - can not be installed in a closed room (room must be adequately ventilated).
更多
A breather controller is available as an accessory for our Unistats. This allows to realise an inert gas overlay of the thermal fluid in the expansion vessel. Advantages of the breather controller are a longer life-time of the heat transfer fluid as a result of the reduced oxidation as well as an extended temperature range. The breather control limits the pressure and consists of the atmospheric sealing kit comprising of the following parts on a mounting plate:
- Atmosperic sealing kit
- Pressure regulator 20-200 mbar
- Safety valve 200 mbar opening
- Bubble counter
- Connection hose
- Max. pressure 1 bar
- Connection G1/2
Unit not suitable for outdoor installation - can not be installed in a closed room (room must be adequately ventilated).
订货号: 9779
Calibration bend M30x1,5 with sensor pocket for sensor Ø 6 mm / length 165 mm
Female thread on short side
更多
Calibration bend M30x1,5 with sensor pocket for sensor Ø 6 mm / length 165 mm
Female thread on short side
订货号: 9792
External pressure sensor M16x1
for VPC variable speed pump
(Com.G@te required)
更多
External pressure sensor M16x1
for VPC variable speed pump
(Com.G@te required)
订货号: 9794
External pressure sensor M24x1,5
for VPC variable speed pump
(Com.G@te required)
更多
External pressure sensor M24x1,5
for VPC variable speed pump
(Com.G@te required)
订货号: 9795
External pressure sensor M30x1,5
for VPC variable speed pump
(Com.G@te required)
更多
External pressure sensor M30x1,5
for VPC variable speed pump
(Com.G@te required)
订货号: 9819
- regulated, including T-piece
- for Unistats with M24x1,5 connection
- Protection class IP 20 (indoor installation only)
- Bypass loose (is not mounted on the unit)
- Mounted in the pipework (before application), can be mounted permanently or via hose
- max. differential pressure 6 bar
- Installation on the unit only possible in combination with Huber hose M24x1,5
- permissible temperature range: -90°C ... 200°C
更多
- regulated, including T-piece
- for Unistats with M24x1,5 connection
- Protection class IP 20 (indoor installation only)
- Bypass loose (is not mounted on the unit)
- Mounted in the pipework (before application), can be mounted permanently or via hose
- max. differential pressure 6 bar
- Installation on the unit only possible in combination with Huber hose M24x1,5
- permissible temperature range: -90°C ... 200°C
订货号: 9820
- regulated, including T-piece
- for Unistats with M38x1,5 connection
- Protection class IP 20 (indoor installation only)
- Bypass loose (is not mounted on the unit)
- Mounted in the pipework (before application), can be mounted permanently or via hose
- max. differential pressure 6 bar
- Installation on the unit only possible in combination with Huber hose M38x1,5
- permissible temperature range: -90°C ... 200°C
更多
- regulated, including T-piece
- for Unistats with M38x1,5 connection
- Protection class IP 20 (indoor installation only)
- Bypass loose (is not mounted on the unit)
- Mounted in the pipework (before application), can be mounted permanently or via hose
- max. differential pressure 6 bar
- Installation on the unit only possible in combination with Huber hose M38x1,5
- permissible temperature range: -90°C ... 200°C
订货号: 9888
Manually adjustable bypass G3/4 with connection for manometer, for Unichiller
Temperature range: -20°C ... 150°C, insulated
For this bypass one of the following pressure gauges must be ordered separately:
Manometer 0-1 bar #64190
Manometer 0-2,5 bar #64189
Manometer 0-4 bar #54398
Manometer 0-10 bar #54399
The bypass is easily bendable.
更多
Manually adjustable bypass G3/4 with connection for manometer, for Unichiller
Temperature range: -20°C ... 150°C, insulated
For this bypass one of the following pressure gauges must be ordered separately:
Manometer 0-1 bar #64190
Manometer 0-2,5 bar #64189
Manometer 0-4 bar #54398
Manometer 0-10 bar #54399
The bypass is easily bendable.
订货号: 9889
Manually adjustable bypass M16x1 with connection for manometer, for Unistats
Temperature range: -20°C ... 140°C, insulated
For this bypass one of the following pressure gauges must be ordered separately:
Manometer 0-1 bar #64190
Manometer 0-2,5 bar #64189
Manometer 0-4 bar #54398
Manometer 0-10 bar #54399
The bypass is easily bendable.
更多
Manually adjustable bypass M16x1 with connection for manometer, for Unistats
Temperature range: -20°C ... 140°C, insulated
For this bypass one of the following pressure gauges must be ordered separately:
Manometer 0-1 bar #64190
Manometer 0-2,5 bar #64189
Manometer 0-4 bar #54398
Manometer 0-10 bar #54399
The bypass is easily bendable.
订货号: 9890
Manually adjustable bypass M30x1,5 with connection for manometer, for Unistats
Temperature range: -20°C ... 150°C, insulated
For this bypass one of the following pressure gauges must be ordered separately:
Manometer 0-1 bar #64190
Manometer 0-2,5 bar #64189
Manometer 0-4 bar #54398
Manometer 0-10 bar #54399
The bypass is easily bendable.
更多
Manually adjustable bypass M30x1,5 with connection for manometer, for Unistats
Temperature range: -20°C ... 150°C, insulated
For this bypass one of the following pressure gauges must be ordered separately:
Manometer 0-1 bar #64190
Manometer 0-2,5 bar #64189
Manometer 0-4 bar #54398
Manometer 0-10 bar #54399
The bypass is easily bendable.
订货号: 9914
Calibration bend M16x1 with sensor pocket for sensor Ø 4 mm / length 75 mm
更多
Calibration bend M16x1 with sensor pocket for sensor Ø 4 mm / length 75 mm
订货号: 9925
For calibration of an internal sensor M38x1,5 for sensor Ø 6 mm / length 160 mm
更多
For calibration of an internal sensor M38x1,5 for sensor Ø 6 mm / length 160 mm
订货号: 9969
Manually adjustable bypass M24x1,5 with connection for manometer, for Unistats
Temperature range: -20°C ... 150°C, insulated
For this bypass one of the following pressure gauges must be ordered separately:
Manometer 0-1 bar #64190
Manometer 0-2,5 bar #64189
Manometer 0-4 bar #54398
Manometer 0-10 bar #54399
The bypass is easily bendable.
更多
Manually adjustable bypass M24x1,5 with connection for manometer, for Unistats
Temperature range: -20°C ... 150°C, insulated
For this bypass one of the following pressure gauges must be ordered separately:
Manometer 0-1 bar #64190
Manometer 0-2,5 bar #64189
Manometer 0-4 bar #54398
Manometer 0-10 bar #54399
The bypass is easily bendable.
订货号: 9970
Manually adjustable bypass M38x1,5 with connection for manometer, for Unistats
Temperature range: -20°C ... 150°C, insulated
For this bypass one of the following pressure gauges must be ordered separately:
Manometer 0-1 bar #64190
Manometer 0-2,5 bar #64189
Manometer 0-4 bar #54398
Manometer 0-10 bar #54399
The bypass is easily bendable.
更多
Manually adjustable bypass M38x1,5 with connection for manometer, for Unistats
Temperature range: -20°C ... 150°C, insulated
For this bypass one of the following pressure gauges must be ordered separately:
Manometer 0-1 bar #64190
Manometer 0-2,5 bar #64189
Manometer 0-4 bar #54398
Manometer 0-10 bar #54399
The bypass is easily bendable.
订货号: 10965
The Profinet Gateway enables the connection of Huber temperature control machines to Profinet systems, offering comprehensive facilities for data communication within SPS and process control systems.
For units with Pilot ONE controller
Power Supply: 100-240V
Accessories (included): Power cable
Download: <a href="https://www.huber-online.com/fileadmin/user_upload/huber-online.com/Downloads/Software/GSDML-V2.3-Deutschmann-UNIGATE-CL-PN-20141017-155000.zip">Device configuration file</a>
更多
The Profinet Gateway enables the connection of Huber temperature control machines to Profinet systems, offering comprehensive facilities for data communication within SPS and process control systems.
For units with Pilot ONE controller
Power Supply: 100-240V
Accessories (included): Power cable
Download: <a href="https://www.huber-online.com/fileadmin/user_upload/huber-online.com/Downloads/Software/GSDML-V2.3-Deutschmann-UNIGATE-CL-PN-20141017-155000.zip">Device configuration file</a>
订货号: 10966
The EtherCAT Gateway enables the connection of Huber temperature control machines to EtherCAT systems, offering comprehensive facilities for data communication within SPS and process control systems.
For units with Pilot ONE controller
Power Supply: 100-240V
Accessories (included): Power cable
Download: <a href="https://www.huber-online.com/fileadmin/user_upload/huber-online.com/Downloads/Software/CL-EC-F2-P3573R1.zip">Device configuration file</a>
更多
The EtherCAT Gateway enables the connection of Huber temperature control machines to EtherCAT systems, offering comprehensive facilities for data communication within SPS and process control systems.
For units with Pilot ONE controller
Power Supply: 100-240V
Accessories (included): Power cable
Download: <a href="https://www.huber-online.com/fileadmin/user_upload/huber-online.com/Downloads/Software/CL-EC-F2-P3573R1.zip">Device configuration file</a>
订货号: 520450
The optional E-grade Remote GUI allows remote control of the Huber temperature control units with Pilot ONE. All functions that are available locally on the Pilot ONE can be displayed and operated identically via the Pilot Remote software on any PC / laptop operating with Microsoft Windows. It is ideal for remote monitoring or remote control within a network (LAN). For example, several Huber units in different rooms can be displayed centrally on one PC. The E-grade Remote GUI can be used to control the temperature control system either locally or from a PC. This allows centralised visualisation and operation.
The Pilot Remote software can be downloaded free of charge from our website.
更多
The optional E-grade Remote GUI allows remote control of the Huber temperature control units with Pilot ONE. All functions that are available locally on the Pilot ONE can be displayed and operated identically via the Pilot Remote software on any PC / laptop operating with Microsoft Windows. It is ideal for remote monitoring or remote control within a network (LAN). For example, several Huber units in different rooms can be displayed centrally on one PC. The E-grade Remote GUI can be used to control the temperature control system either locally or from a PC. This allows centralised visualisation and operation.
The Pilot Remote software can be downloaded free of charge from our website.
订货号: 522248
The Profibus Gateway DP-V0 enables the connection of Huber temperature control machines to Profibus systems, offering comprehensive facilities for data communication within SPS and process control systems.
The Profibus Gateway DP-V0 has a defined range of functions, the available parameters are listed in the manual.
For units with Pilot ONE controller.
Power Supply: 100-240V
Accessories (included): Mounting Bracket, Connection cable, Power cable
Requirement: Controller (SPS) must be capable for DPV0
Download: <a href="https://www.huber-online.com/fileadmin/user_upload/huber-online.com/Downloads/Software/HubrDPV0.zip">Device configuration file</a>
更多
The Profibus Gateway DP-V0 enables the connection of Huber temperature control machines to Profibus systems, offering comprehensive facilities for data communication within SPS and process control systems.
The Profibus Gateway DP-V0 has a defined range of functions, the available parameters are listed in the manual.
For units with Pilot ONE controller.
Power Supply: 100-240V
Accessories (included): Mounting Bracket, Connection cable, Power cable
Requirement: Controller (SPS) must be capable for DPV0
Download: <a href="https://www.huber-online.com/fileadmin/user_upload/huber-online.com/Downloads/Software/HubrDPV0.zip">Device configuration file</a>
订货号: 10771
Float switch in sight glass Unistat
for extended safety of leakage monitoring, with cable and connector plug
for ECS socket on Unistat (Pilot ONE generation),
Com.G@te or Poko/ECS interface
更多
Float switch in sight glass Unistat
for extended safety of leakage monitoring, with cable and connector plug
for ECS socket on Unistat (Pilot ONE generation),
Com.G@te or Poko/ECS interface
订货号: 3602.0001.00
Temperature range: -45 °C....150 °C
Fluid connection: M38x1,5 male
Dimensions (W x D x H): 397 x 545 x 586 mm
Compressed air max.: 4 bar
Power supply: 90-240V 1~/2~ 50/60Hz
Protection class: IP20
Useable: Free-Standing Unistats, Unimotive and Unichillers Tower
Heat transfer fluids: water-ethylene glycol mixtures
Solenoid valves: electrically controlled
Notes:
- Please specify the used device with serial number when ordering.
- Safety device against overpressure not included in the scope of delivery.
- The connection of the fluid return line to the temperature control system must be carried out by others.
- No excess pressure is permitted in the TCU during the active return of the liquid, i.e. a pressure equalisation must have been completed prior to the return of the fluid to the expansion vessel.
更多
Temperature range: -45 °C....150 °C
Fluid connection: M38x1,5 male
Dimensions (W x D x H): 397 x 545 x 586 mm
Compressed air max.: 4 bar
Power supply: 90-240V 1~/2~ 50/60Hz
Protection class: IP20
Useable: Free-Standing Unistats, Unimotive and Unichillers Tower
Heat transfer fluids: water-ethylene glycol mixtures
Solenoid valves: electrically controlled
Notes:
- Please specify the used device with serial number when ordering.
- Safety device against overpressure not included in the scope of delivery.
- The connection of the fluid return line to the temperature control system must be carried out by others.
- No excess pressure is permitted in the TCU during the active return of the liquid, i.e. a pressure equalisation must have been completed prior to the return of the fluid to the expansion vessel.
订货号: 524692
Piping kit for FCC Flow Control Cube MID/TURB/CORE I
for mounting the Flow Control Cube on top
Note:
The height of the temperature control unit increases by approx. 620 mm
更多
Piping kit for FCC Flow Control Cube MID/TURB/CORE I
for mounting the Flow Control Cube on top
Note:
The height of the temperature control unit increases by approx. 620 mm
订货号: 524694
Mounting kit for FCC Flow Control Cube MID/TURB/CORE I
for mounting the Flow Control Cube on top
Note:
The height of the temperature control unit increases by approx. 620 mm
更多
Mounting kit for FCC Flow Control Cube MID/TURB/CORE I
for mounting the Flow Control Cube on top
Note:
The height of the temperature control unit increases by approx. 620 mm
订货号: 3601.0006.00
The Flow Control Cube is used to measure and control the flow and pressure of the thermal fluid. It can be used with Huber temperature control units with Pilot ONE technology.
The flow measurement is carried out with magnetically-inductive flow meters (MID) for electrically conductive liquids (e.g. water-glycol mixtures).
Temperature range: -40 ... 130 °C
Min. volume flow: 0,2 l/min
Max. volume flow: 80 l/min
Fluid connection: M38x1,5 male
Power supply: 90-240V 1~/2~ 50/60Hz
更多
The Flow Control Cube is used to measure and control the flow and pressure of the thermal fluid. It can be used with Huber temperature control units with Pilot ONE technology.
The flow measurement is carried out with magnetically-inductive flow meters (MID) for electrically conductive liquids (e.g. water-glycol mixtures).
Temperature range: -40 ... 130 °C
Min. volume flow: 0,2 l/min
Max. volume flow: 80 l/min
Fluid connection: M38x1,5 male
Power supply: 90-240V 1~/2~ 50/60Hz
订货号: 3601.0007.00
The Flow Control Cube is used to measure and control the flow and pressure of the thermal fluid. It can be used with Huber temperature control units with Pilot ONE technology.
The flow measurement is carried out via a turbine flow meters (TURB) and can be calibrated for various liquids (e.g. silicone oils or water-glycol mixtures).
Temperature range: -90 ... 250 °C
with calibration: -30 ... 95 °C
Calibration (factory-set): Water-Ethylene Glycol 50:50
Min. volume flow: 0,9 l/min
Max. volume flow: 95 l/min
Fluid connection: M38x1,5 male
Power supply: 90-240V 1~/2~ 50/60Hz
更多
The Flow Control Cube is used to measure and control the flow and pressure of the thermal fluid. It can be used with Huber temperature control units with Pilot ONE technology.
The flow measurement is carried out via a turbine flow meters (TURB) and can be calibrated for various liquids (e.g. silicone oils or water-glycol mixtures).
Temperature range: -90 ... 250 °C
with calibration: -30 ... 95 °C
Calibration (factory-set): Water-Ethylene Glycol 50:50
Min. volume flow: 0,9 l/min
Max. volume flow: 95 l/min
Fluid connection: M38x1,5 male
Power supply: 90-240V 1~/2~ 50/60Hz
订货号: 3601.0003.01
The Multi Flow Control Cube is used to measure and control the flow and pressure of the thermal fluid. It can be used with Huber temperature control units with Pilot ONE technology.
The flow measurement is carried out with magnetically-inductive flow meters (MID) for electrically conductive liquids (e.g. water-glycol mixtures).
In comparison to FCC, M-FCC has an independent controller, i.e. control takes place autonomously and communication with the Pilot ONE of the temperature control unit is not necessary. With M-FCC, multi-circuit control can be realised.
In most applications, a single temperature control unit is connected to an FCC for the first control loop. Additional M-FCC products are added for all further control loops.
Temperature range: -40 ... 130 °C
Min. volume flow: 0,2 l/min
Max. volume flow: 80 l/min
Fluid connection: M38x1,5 male
Power supply: 90-240V 1~/2~ 50/60Hz
更多
The Multi Flow Control Cube is used to measure and control the flow and pressure of the thermal fluid. It can be used with Huber temperature control units with Pilot ONE technology.
The flow measurement is carried out with magnetically-inductive flow meters (MID) for electrically conductive liquids (e.g. water-glycol mixtures).
In comparison to FCC, M-FCC has an independent controller, i.e. control takes place autonomously and communication with the Pilot ONE of the temperature control unit is not necessary. With M-FCC, multi-circuit control can be realised.
In most applications, a single temperature control unit is connected to an FCC for the first control loop. Additional M-FCC products are added for all further control loops.
Temperature range: -40 ... 130 °C
Min. volume flow: 0,2 l/min
Max. volume flow: 80 l/min
Fluid connection: M38x1,5 male
Power supply: 90-240V 1~/2~ 50/60Hz
订货号: 3601.0004.01
The Multi Flow Control Cube is used to measure and control the flow and pressure of the thermal fluid. It can be used with Huber temperature control units with Pilot ONE technology. The flow measurement is carried out via a turbine flow meters (TURB). The TURB flow meters can be calibrated for various liquids (e.g. silicone oils or water-glycol mixtures).
In comparison to FCC, M-FCC has an independent controller, i.e. control takes place autonomously and communication with the Pilot ONE of the temperature control unit is not necessary. With M-FCC, multi-circuit control can be realised.
In most applications, a single temperature control unit is connected to an FCC for the first control loop. Additional M-FCC products are added for all further control loops.
Temperature range: -90 ... 250 °C
Min. volume flow: 0,9 l/min
Max. volume flow: 95 l/min
Fluid connection: M38x1,5 male
Power supply: 90-240V 1~ 50/60Hz
更多
The Multi Flow Control Cube is used to measure and control the flow and pressure of the thermal fluid. It can be used with Huber temperature control units with Pilot ONE technology. The flow measurement is carried out via a turbine flow meters (TURB). The TURB flow meters can be calibrated for various liquids (e.g. silicone oils or water-glycol mixtures).
In comparison to FCC, M-FCC has an independent controller, i.e. control takes place autonomously and communication with the Pilot ONE of the temperature control unit is not necessary. With M-FCC, multi-circuit control can be realised.
In most applications, a single temperature control unit is connected to an FCC for the first control loop. Additional M-FCC products are added for all further control loops.
Temperature range: -90 ... 250 °C
Min. volume flow: 0,9 l/min
Max. volume flow: 95 l/min
Fluid connection: M38x1,5 male
Power supply: 90-240V 1~ 50/60Hz
订货号: 3601.0020.00
The Flow Control Cube is used to measure and control the flow and pressure of the thermal fluid. It can be used with Huber temperature control units with Pilot ONE technology.
The flow measurement is based on the Coriolis measuring method. An individual calibration for the liquid used is not necessary and can be used universally for different temperature control media.
Temperature range: -40 ... 150 °C
Min. volume flow: 0,2 l/min
Max. volume flow: 95 l/min
Fluid connection: M38x1,5 male
Power supply: 90-240V 1~/2~ 50/60Hz
更多
The Flow Control Cube is used to measure and control the flow and pressure of the thermal fluid. It can be used with Huber temperature control units with Pilot ONE technology.
The flow measurement is based on the Coriolis measuring method. An individual calibration for the liquid used is not necessary and can be used universally for different temperature control media.
Temperature range: -40 ... 150 °C
Min. volume flow: 0,2 l/min
Max. volume flow: 95 l/min
Fluid connection: M38x1,5 male
Power supply: 90-240V 1~/2~ 50/60Hz
订货号: 3601.0021.00
The Flow Control Cube is used to measure and control the flow and pressure of the thermal fluid. It can be used with Huber temperature control units with Pilot ONE technology.
The flow measurement is based on the Coriolis measuring method. An individual calibration for the liquid used is not necessary and can be used universally for different temperature control media.
Temperature range: -90 ... 240 °C
Min. volume flow: 0,9 l/min
Max. volume flow: 200 l/min
Fluid connection: flange DN32 PN10/40 EN1092-1
Power supply: 90-240V 1~/2~ 50/60Hz
更多
The Flow Control Cube is used to measure and control the flow and pressure of the thermal fluid. It can be used with Huber temperature control units with Pilot ONE technology.
The flow measurement is based on the Coriolis measuring method. An individual calibration for the liquid used is not necessary and can be used universally for different temperature control media.
Temperature range: -90 ... 240 °C
Min. volume flow: 0,9 l/min
Max. volume flow: 200 l/min
Fluid connection: flange DN32 PN10/40 EN1092-1
Power supply: 90-240V 1~/2~ 50/60Hz
订货号: 3601.0017.01
The Multi Flow Control Cube is used to measure and control the flow and pressure of the thermal fluid. It can be used with Huber temperature control units with Pilot ONE technology.
The flow measurement is based on the Coriolis measuring method. An individual calibration for the liquid used is not necessary and can be used universally for different temperature control media.
In comparison to FCC, M-FCC has an independent controller, i.e. control takes place autonomously and communication with the Pilot ONE of the temperature control unit is not necessary. With M-FCC, multi-circuit control can be realised.
In most applications, a single temperature control unit is connected to an FCC for the first control loop. Additional M-FCC products are added for all further control loops.
Temperature range: -40 ... 150 °C
Min. volume flow: 0,9 l/min
Max. volume flow: 95 l/min
fluid connection: M38x1,5 male
Power supply: 90-240V 1~/2~ 50/60Hz
更多
The Multi Flow Control Cube is used to measure and control the flow and pressure of the thermal fluid. It can be used with Huber temperature control units with Pilot ONE technology.
The flow measurement is based on the Coriolis measuring method. An individual calibration for the liquid used is not necessary and can be used universally for different temperature control media.
In comparison to FCC, M-FCC has an independent controller, i.e. control takes place autonomously and communication with the Pilot ONE of the temperature control unit is not necessary. With M-FCC, multi-circuit control can be realised.
In most applications, a single temperature control unit is connected to an FCC for the first control loop. Additional M-FCC products are added for all further control loops.
Temperature range: -40 ... 150 °C
Min. volume flow: 0,9 l/min
Max. volume flow: 95 l/min
fluid connection: M38x1,5 male
Power supply: 90-240V 1~/2~ 50/60Hz
订货号: 524693
Mounting kit for FCC Flow Control Cube MID/TURB/CORE I
for mounting the Flow Control Cube on top
Note:
The height of the temperature control unit increases by approx. 620 mm
更多
Mounting kit for FCC Flow Control Cube MID/TURB/CORE I
for mounting the Flow Control Cube on top
Note:
The height of the temperature control unit increases by approx. 620 mm
订货号: 521795
HDPE with braiding
Temperature range: -20°C...90°C
Length: 300 cm
Connection: G1 1/4
Max. pressure at 20°C: 6 bar
Internal diameter: 32 mm
更多
HDPE with braiding
Temperature range: -20°C...90°C
Length: 300 cm
Connection: G1 1/4
Max. pressure at 20°C: 6 bar
Internal diameter: 32 mm
订货号: 343308
Temperature range: -10 ... +180°C (max. 6 bar at +180°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
更多
Temperature range: -10 ... +180°C (max. 6 bar at +180°C)
With universal mounting bracket for wall mounting of the manifold.
A hose of suitable length is required to connect between the manifold and the temperature control unit.
订货号: 519484
The following interfaces are integrated:
- Digital input: ECS
- Digital output: POKO
- Analogue interface:
- 1 input 4-20 mA / 0-10 V (switchable)
- 3 outputs 4-20 mA / 0-10 V (switchable)
- RS232 interface
- Up to three Com.G@te can be combined per temperature control unit, depending on the version of the temperature control unit
For units with Pilot ONE.
更多
The following interfaces are integrated:
- Digital input: ECS
- Digital output: POKO
- Analogue interface:
- 1 input 4-20 mA / 0-10 V (switchable)
- 3 outputs 4-20 mA / 0-10 V (switchable)
- RS232 interface
- Up to three Com.G@te can be combined per temperature control unit, depending on the version of the temperature control unit
For units with Pilot ONE.
订货号: 509056
The following interfaces are integrated:
- Digital input: ECS
- Digital output: POKO
- Analogue interface:
- 1 input 4-20 mA / 0-10 V (switchable)
- 3 outputs 4-20 mA / 0-10 V (switchable)
- RS232 interface
- Up to three Com.G@tes can be combined per temperature control unit, depending on the version of the temperature control unit
For units with Pilot ONE.
更多
The following interfaces are integrated:
- Digital input: ECS
- Digital output: POKO
- Analogue interface:
- 1 input 4-20 mA / 0-10 V (switchable)
- 3 outputs 4-20 mA / 0-10 V (switchable)
- RS232 interface
- Up to three Com.G@tes can be combined per temperature control unit, depending on the version of the temperature control unit
For units with Pilot ONE.
订货号: 519485
The following interfaces are integrated:
- Digital input: ECS
- Digital output: POKO
- RS232 interface
- Up to three Com.G@te can be combined per temperature control unit, depending on the version of the temperature control unit
For units with Pilot ONE.
更多
The following interfaces are integrated:
- Digital input: ECS
- Digital output: POKO
- RS232 interface
- Up to three Com.G@te can be combined per temperature control unit, depending on the version of the temperature control unit
For units with Pilot ONE.
订货号: 528295
The international guarantee from Huber offers worldwide guarantee coverage for distributors, OEM partners etc.
Your advantages:
- Comprehensive care free package
- Professional repair work
- Fast execution of guarantee repairs
- Predictable guarantee costs
- Minimising downtime
- Simple handling of guarantee cases
- No further costs for repairs during guarantee
更多
The international guarantee from Huber offers worldwide guarantee coverage for distributors, OEM partners etc.
Your advantages:
- Comprehensive care free package
- Professional repair work
- Fast execution of guarantee repairs
- Predictable guarantee costs
- Minimising downtime
- Simple handling of guarantee cases
- No further costs for repairs during guarantee
订货号: 9943
Electronic E-Grade-Package for extended
data communication with the following signals:
- Return temperature
- Power estimation
- PID-Parameter selection
- Compressor Automatic
- Digital communication of jacket and process temperature
- Reading of unit serial number
- Cooling water temperature and pressure
- Detailed parameter input prior to process start
- Feed forward control
- VPC control
- Flow control
- Availability of the variables device dependent
更多
Electronic E-Grade-Package for extended
data communication with the following signals:
- Return temperature
- Power estimation
- PID-Parameter selection
- Compressor Automatic
- Digital communication of jacket and process temperature
- Reading of unit serial number
- Cooling water temperature and pressure
- Detailed parameter input prior to process start
- Feed forward control
- VPC control
- Flow control
- Availability of the variables device dependent
订货号: 518719
Consisting of:
- Atmosperic sealing kit
- Pressure regulator 20-200 mbar
- Safety valve 200 mbar opening
- Bubble counter
- Connection hose
- Max. pressure 1 bar
- Connection: G1/2
Unit not suitable for external installation.
Must not be installed in a closed room (room must be adequately ventilated).
更多
Consisting of:
- Atmosperic sealing kit
- Pressure regulator 20-200 mbar
- Safety valve 200 mbar opening
- Bubble counter
- Connection hose
- Max. pressure 1 bar
- Connection: G1/2
Unit not suitable for external installation.
Must not be installed in a closed room (room must be adequately ventilated).
