HB60
Heating circulator
Performance Characteristics

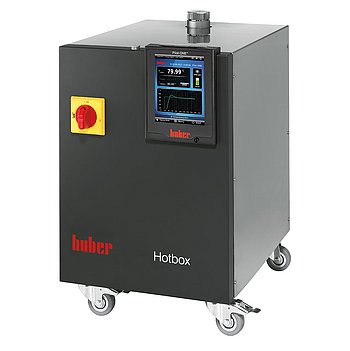

The Hotbox series provide heating circulators with the functionality of the Pilot ONE controller for thermoregulating externally open applications. With its compact form the Hotbox is ideal for installation in production systems. The Hotbox has a stainless steel pump and adjustable over temperature protection complying with DIN 12876.
Functions overview
- High efficiency
- Precise temperature control
- Powerful circulation pump
- Intelligent energy management
- Reliable continuously operation with warning functions
- Pilot ONE controller with 5.7" touchscreen
- Digital filling level indicator
- 2 x USB (Host and Device), Ethernet and RS232 interfaces
- Compact construction; suitable for installation in plant
Product impressions
Controller
The multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.
Read more
| Heating capacity | 6 kW |
| Delivery capacity pressure pump max. | 90 l/min; 2,5 bar |
| Pump connection | M30x1,5 AG male |
| Pump speed adjustable | no |
| Pump characteristics | Pressure pump, speed not variable |
| External sensor connection | Pt100 |
| Interface digital | Ethernet, USB (Host u. Device), RS232 |
| Permissible ambient temperature | 5...40 °C |
| Filling volume min. | 3,5 l |
| Power supply | 400V 3~N 50Hz |
| Current consumption max. | 10,5 A |
| Fuse | 3x16A |
Please take further technical information as well as information about the scope of delivery, accessories and peripheral devices from the PDF data sheet. In cases of doubt the details given in there apply. If nothing to the contrary is quoted then the performance data referred is at an ambient temperature of 20°C.
Please observe the notes on installation and/or the space requirements of our products.
The following voltage and frequency tolerances apply based on EN60034-1:
Voltage +/- 5% for a frequency tolerance at the same time of +/- 2%
Examples to illustrate this: Not permissible, for example. is -5% on the voltage and +2% on the frequency. Permissible, on the other hand, are tolerances of -5% on the voltage and -2% on the frequency.
We reserve the right to make technical changes and correct errors. Illustrations can deviate from the original.
