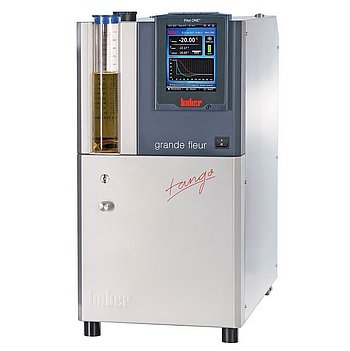

Dynamic temperature control system / circulation thermostat

Model: Grande Fleur Group: 35 Order No.: 1041.0001.01 E-class: 32-09-01-17
Request now

Performance Characteristics

The new Grande Fleur expands the product offering in the dynamic temperature control range. The Grande Fleur together with the Petite Fleur are two small Tangos and are the entry level into the world of Unistat technology. The compact dimensions and unique thermodynamics of the Grande Fleur mean it is ideally suited for high precision temperature control of research reactors. The Grande Fleur offers all of the great performance and features of the Unistat series, achieving unrivalled heating and cooling rates.

Functions overview

  • Precise and reproducible temperature control results
  • Fastest heating and cooling rates
  • Wide temperature ranges with no fluid change
  • Pilot ONE controller with 5.7“ touchscreen and comfortable menu navigation
  • Precise temperature control
  • Efficient circulation pump, adjustable
  • 2 x USB (Host and Device), Ethernet and RS232 interfaces
  • Efficient operation saves working time and operating costs
  • Proven functionality for the process industry
  • E-grade "Professional" included

Product impressions

Controller

The new multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.

Read more

Temperature range -40...200 °C
Temperature stability ±0,01 K
Display resolution 0,01 K
Alarm message optic, acoustic, relay
Controller Pilot ONE
Safety class III / FL
Protection class IP20
Dimensions (W x D x H) 295 x 530 x 570 mm
Weight, net 53 kg

Heating capacity 1,5 - 2 kW
Cooling capacity
200 0,6
150 0,6
100 0,6
50 0,6
20 0,6
0 0,6
-20 0,35
-40 0,04

°C

kW

Refrigeration machine air-cooled, natural refrigerant
Refrigerant 1st stage R290 (A3, H220)
Refrigerant quantity 1st stage 0,099 kg

Delivery capacity pressure pump max. 47 l/min; 0,9 bar
Pump connection M24x1,5 AG male
Max. permissible viscosity 50 mm²/s
Pump speed adjustable Yes

External sensor connection Pt100
Control input ECS ONE
Control output (potential-free contact) POKO ONE
Interface digital Ethernet, USB (Host u. Device), RS232

Permissible ambient temperature 5...40 °C
Sound pressure level 61 dB(A)
Filling volume min. 1,5 l
Expansion volume 3 Liter
Power supply 208-240V 1~/2~ 50/60Hz
Current consumption max. 11,5 A
Fuse 16 A

Please take further technical information as well as information about the scope of delivery, accessories and peripheral devices from the PDF data sheet. In cases of doubt the details given in there apply. If nothing to the contrary is quoted then the performance data referred is at an ambient temperature of 20°C.

Please observe the notes on installation and/or the space requirements of our products.

The following voltage and frequency tolerances apply based on EN60034-1:
Voltage +/- 5% for a frequency tolerance at the same time of +/- 2%

Examples to illustrate this: Not permissible, for example. is -5% on the voltage and +2% on the frequency. Permissible, on the other hand, are tolerances of -5% on the voltage and -2% on the frequency.

We reserve the right to make technical changes and correct errors. Illustrations can deviate from the original.
