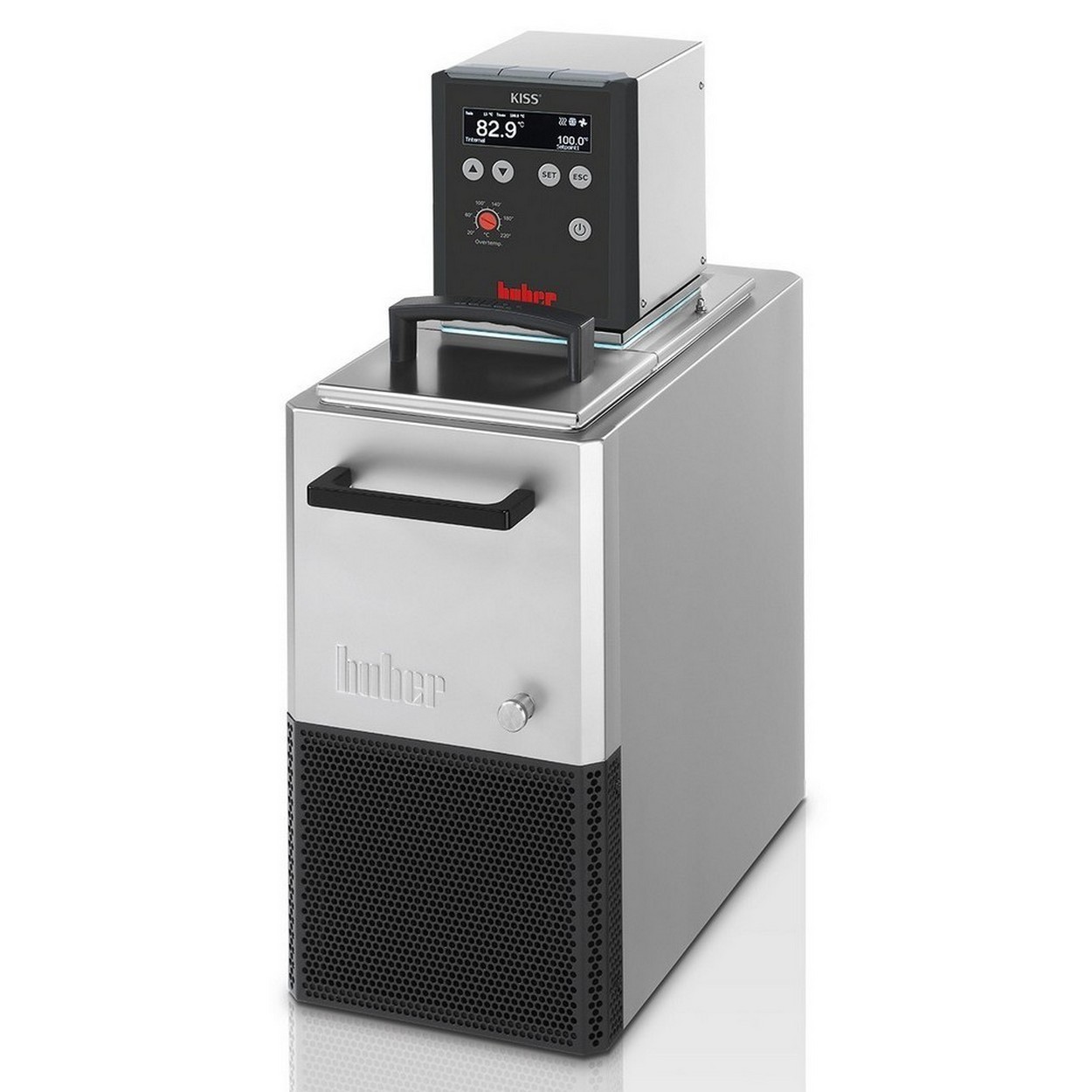

KISS K6

KISS K6

Cooling bath thermostat

Model: KISS K6 Group: 2 Order No.: 2008.0043.98 E-class: 32-09-01-17
Request now

Performance Characteristics

Cooling bath thermostats with insulated cooling baths are an economic solution for thermoregulation of objects directly in the thermostat bath. The units are therefore suitable for a number of typical heating and cooling tasks such as sample temperature control, materials testing, quality control, analyses, etc. Cooling circulator operates with natural refrigerants and are therefore offer an environmentally friendly solution to temperature control. In addition, cooling circulators are fitted with automatic refrigeration capacity adjustment, reducing energy consumption and waste heat down to the absolute essential. With low level protection and adjustable over heating protection the units fulfil the requirements of Safety Class III/FL according to DIN 12876. The thermostats can also be used for externally attached applications using the pump connections at the rear.

Functions overview

  • KISS temperature controller
  • Bright, large OLED display
  • Simple operation with menu navigation
  • Simultaneous display of setpoint, Tmin, Tmax and actual temperature
  • Status displays for pump, cooling and heating
  • Overtemperature and low level protection
  • Safety class III/FL (DIN 12876)
  • USB and RS232 interfaces
  • Autostart function for power failure
  • 3 colour versions available: grey (standard), blue, red

Product impressions

Controller

The new KISS controller combines state-of-the-art technology with simple operation and stylish design. KISS models are suitable for routine tasks in research and industry and are convincing as practice oriented basic equipment. Option: Pt100 sensor connection #10519 to display (not control) e.g. of the process temperature (only available factory fitted, additional charge).

Read more

Temperature range -25...200 °C
Temperature stability ±0,05 K
Temperature display OLED Display
Alarm message optic, acoustic
Controller KISS
Safety class III / FL
Protection class IP20
Dimensions (W x D x H) 210 x 400 x 546 mm
Weight, net 25 kg

Heating capacity 1,6 - 2,1 kW
Cooling capacity
20 0,2
0 0,15
-10 0,1
-20 0,05

°C

kW

Refrigeration machine air-cooled, natural refrigerant
Refrigerant 1st stage R290 (A3, H220)
Refrigerant quantity 1st stage 0,047 kg

Delivery capacity pressure pump max. 14 l/min; 0,25 bar
Delivery capacity suction pump max. 10,5 l/min; 0,17 bar
Pump connection M16x1 AG male
Pump speed adjustable no

Interface digital USB (Device), RS232 interfaces

Permissible ambient temperature 5...40 °C
Sound pressure level 57 dB(A)
Bath opening WxD/BD 140 x 120 / 150 mm
Bath volume 4,5 Liter
Filling volume min. 4,5 l
Power supply 208-240V 1~/2~ 50/60Hz
Current consumption max. 10 + 1,4 A

Please take further technical information as well as information about the scope of delivery, accessories and peripheral devices from the PDF data sheet. In cases of doubt the details given in there apply. If nothing to the contrary is quoted then the performance data referred is at an ambient temperature of 20°C.

Please observe the notes on installation and/or the space requirements of our products.

The following voltage and frequency tolerances apply based on EN60034-1:
Voltage +/- 5% for a frequency tolerance at the same time of +/- 2%

Examples to illustrate this: Not permissible, for example. is -5% on the voltage and +2% on the frequency. Permissible, on the other hand, are tolerances of -5% on the voltage and -2% on the frequency.

We reserve the right to make technical changes and correct errors. Illustrations can deviate from the original.
