CC-K6

CC-K6

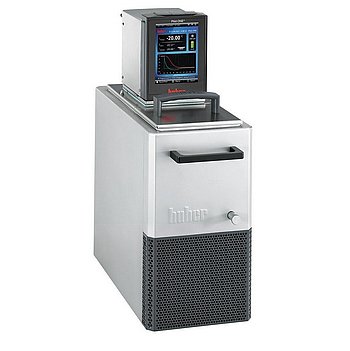

Cooling bath thermostat

Model: CC-K6 Group: 2 Order No.: 2008.0005.01 E-class: 32-09-01-17
Request now

Performance Characteristics

Cooling bath thermostats with insulated cooling baths are an economic solution for thermoregulation of objects directly in the thermostat bath. The units are therefore suitable for a number of typical heating and cooling tasks such as sample temperature control, materials testing, quality control, analyses, etc. Cooling circulator operates with natural refrigerants and are therefore offer an environmentally friendly solution to temperature control. In addition, cooling circulators are fitted with automatic refrigeration capacity adjustment, reducing energy consumption and waste heat down to the absolute essential. With low level protection and adjustable over heating protection the units fulfil the requirements of Safety Class III/FL according to DIN 12876. The thermostats can also be used for externally attached applications using the pump connections at the rear.

Functions overview

  • Pilot ONE controller with Plug & Play technology
  • Precise temperature control
  • 5.7“ touchscreen and comfortable menu navigation
  • Overtemperature and low level protection
  • Safety class III/FL (DIN 12876)
  • Powerful pressure/suction pump
  • Programmer with calendar and clock functions
  • 2-point calibration
  • Pt100 sensor connection

Product impressions

Controller

The new multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.

Read more

Temperature range -25...200 °C
Temperature stability ±0,02 K
Controller Pilot ONE
Safety class III / FL
Protection class IP20
Dimensions (W x D x H) 210 x 400 x 546 mm
Weight, net 25 kg

Heating capacity 1,6 - 2,1 kW
Cooling capacity
20 0,2
0 0,15
-10 0,1
-20 0,05

°C

kW

Refrigeration machine air-cooled, natural refrigerant
Refrigerant 1st stage R290 (A3, H220)
Refrigerant quantity 1st stage 0,047 kg

Delivery capacity pressure pump max. 27 l/min; 0,7 bar
Delivery capacity suction pump max. 22 l/min; 0,4 bar
Pump connection M16x1 AG male
Pump speed adjustable Yes

External sensor connection Pt100
Interface digital Ethernet, USB (Host u. Device), RS232

Permissible ambient temperature 5...40 °C
Sound pressure level 57 dB(A)
Bath opening WxD/BD 140 x 120 / 150 mm
Bath volume 4,5 Liter
Filling volume min. 4,5 l
Power supply 208-240V 1~/2~ 50/60Hz
Current consumption max. 10 + 1,35 A

Please take further technical information as well as information about the scope of delivery, accessories and peripheral devices from the PDF data sheet. In cases of doubt the details given in there apply. If nothing to the contrary is quoted then the performance data referred is at an ambient temperature of 20°C.

Please observe the notes on installation and/or the space requirements of our products.

The following voltage and frequency tolerances apply based on EN60034-1:
Voltage +/- 5% for a frequency tolerance at the same time of +/- 2%

Examples to illustrate this: Not permissible, for example. is -5% on the voltage and +2% on the frequency. Permissible, on the other hand, are tolerances of -5% on the voltage and -2% on the frequency.

We reserve the right to make technical changes and correct errors. Illustrations can deviate from the original.

Accessories

Control panel extension cable for Pilot ONE

Bath bridge K12, K15, K20, K25

Hose, pressureless, FKM-200-NW12

Adapter M24x1,5 m - M16x1 f

Wall bracket Pilot ONE

Table stand Pilot ONE

E-grade "Exclusive"

E-grade "Professional"

Hose MT-200-1-M16x1

Hose MT-200-1,5-M16x1

Hose MT-200-2-M16x1

Hose MT-200-3-M16x1

90° Adaptor M16x1 female - M16x1 male

Temperature sensor PT100, open, Ø 8 mm, 170 mm

Adapter M16x1 f - G1/2 f

Factory calibration certificate – temperature stability to DIN 12876

Hose MT-350-3-M16x1

Heat transfer fluid M90.055/170.02

Heat transfer fluid M90.055/170.02

Heat transfer fluid M80.100/250.03

Heat transfer fluid M80.100/250.03

Extension cable for temperature sensor

Drain hose, pressureless, T-180-NW8

Drain hose, pressureless, T-180-NW12

Adapter M16x1 f - M16x1 f

Adapter M16x1 f - R1/2 m

Adapter M16x1 f - G3/4 f

Insulated sleeving internal-Ø 42mm

Insulated sleeving / f. tube NW12

Drain valve

Testing protocol FAT (Final Acceptance Test

Temperature sensor PT100, closed, Ø 8 mm, 400 mm

Hose, pressureless, PVC-60-NW12

Hose, pressureless, PVC-60-NW8

Hose, pressureless, NBR NW12

Hose, pressureless, NBR NW8

Hose, pressureless, S-180-NW12

Hose, pressureless, S-180-NW8

Hose, pressureless, FKM NW8

Insulated sleeving/price per m D:15

Insulated sleeving

Hose MT-350-1-M16x1

Hose MT-350-1,5-M16x1

Hose connector M16x1, NW 8

Hose connector M16x1, NW 12

Securing nut M16x1

Ball valve, M16x1

Temperature sensor PT100, closed, Ø 6 mm, 200 mm

Hose MT-350-2-M16x1

Temperature sensor PT100, closed, Ø 6 mm, 180 mm

Heat transfer fluid P20.275.50

Heat transfer fluid P20.275.50

Heat transfer fluid M20.195/235.20

Heat transfer fluid M20.235.20

Heat transfer fluid M40.165/220.10

Heat transfer fluid M40.165/220.10

Heat transfer fluid M60.115/200.05

Heat transfer fluid M60.115/200.05

Heat transfer fluid M80.055.03

Heat transfer fluid M80.055.03

Adapter M16x1 f - M30x1,5 m

Welding end M16x1

Drain valve, universal

Factory calibration certificate – absolute accuracy

Cooling Water Control Valve for Pilot One

Profibus Gateway 3E (external, for Pilot ONE)

E-grade OPC-UA

Pilot Remote-Software

Pilot Remote-Software, ATEX version

POKO/ECS interface for units with Pilot ONE

Mounting bracket for wall mounting of Pilot ONE

Manually adjustable bypass M16x1 with connection for manometer

Touchpen for Pilot ONE
