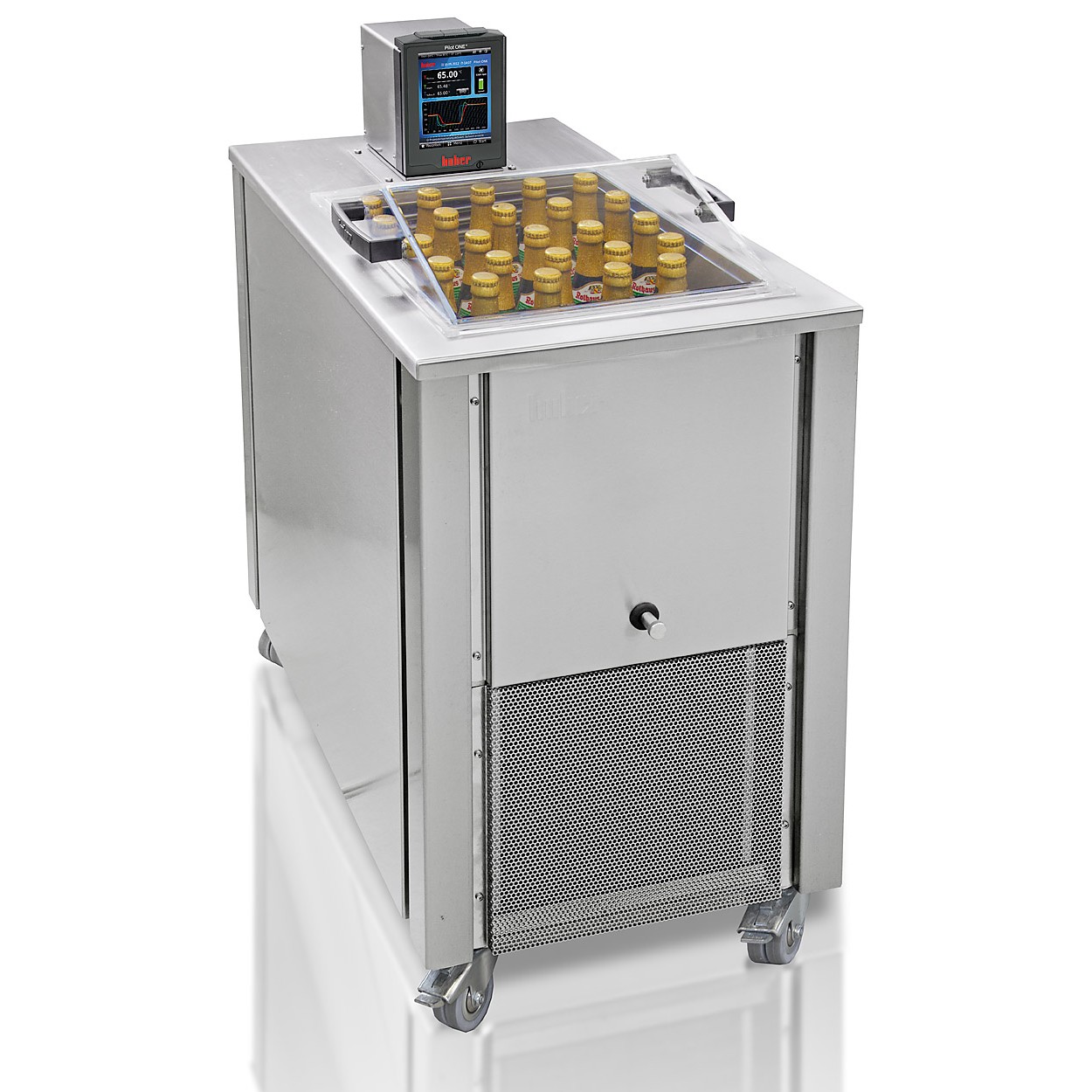

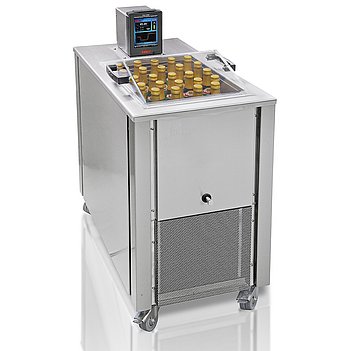

Beer Force Ageing Test Bath

Model: BFT5 Group: 3 Order No.: 2041.0002.01 E-class: 32-09-01-17
Request now This model is also available with natural refrigerant

Performance Characteristics

With the BFT5 we offer a special heating and cooling thermostat for the Beer Forcing test. The unit is fitted with a programmer for automatic temperature cycles. The changing the temperature between 0 and 60 °C in a cycle time of 24 hours artificial aging of the beer is achieved. The model meet the requirements of Safety Class III (FL). The housing and all parts which come into contact with the fluid are made out of high quality stainless steel.

Functions overview

  • Pilot ONE controller with Plug & Play technology
  • Precise temperature control
  • 5.7“ touchscreen and comfortable menu navigation
  • Overtemperature and low level protection
  • Safety class III/FL (DIN 12876)
  • Powerful pressure/suction pump
  • Programmer with calendar and clock functions
  • RS232 interface and Pt100 connection

Product impressions

Controller

The multi-touch controller Pilot ONE offers a brilliant 5.7" touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.

Read more

Temperature range -40...80
Temperature stability ±0,03
Controller Pilot ONE
Safety class III / FL
Protection class IP20
Dimensions (W x D x H) 460 x 710 x 911 mm
Weight, net 95 kg

Heating capacity 2
Cooling capacity
20 1,2

°C

kW

Refrigeration machine air-cooled, CFC- and HCFC-free
Refrigerant 1st stage R-452A (A1, H280)

Delivery capacity pressure pump max. 0 l/min; 0
Pump speed adjustable Yes
Pump characteristics Pressure and suction pump, variable speed

External sensor connection Pt100
Interface digital Ethernet, USB (Host u. Device), RS232

Permissible ambient temperature 5...40 °C
Bath opening WxD/BD 350 x 410 / 270
Bath volume 40
Filling volume min. 8,5
Power supply 208V 2~ 60Hz

Please take further technical information as well as information about the scope of delivery, accessories and peripheral devices from the PDF data sheet. In cases of doubt the details given in there apply. If nothing to the contrary is quoted then the performance data referred is at an ambient temperature of 20°C.

Please observe the notes on installation and/or the space requirements of our products.

The following voltage and frequency tolerances apply based on EN60034-1:
Voltage +/- 5% for a frequency tolerance at the same time of +/- 2%

Examples to illustrate this: Not permissible, for example. is -5% on the voltage and +2% on the frequency. Permissible, on the other hand, are tolerances of -5% on the voltage and -2% on the frequency.

We reserve the right to make technical changes and correct errors. Illustrations can deviate from the original.

Accessories

Trolley for CC-405/w

Temperature sensor Pt100, open, Ø 8 mm, 170 mm

Temperature sensor Pt100, closed, Ø 8 mm, 400 mm

Temperature sensor Pt100, closed, Ø 6 mm, 200 mm

Temperature sensor Pt100, closed, Ø 6 mm, 180 mm

Drain valve

Ball valve M16x1

Drain valve, universal

Connection cable for Pilot ONE

Extension cable for temperature sensor

...
