Connection for pressure relief device

Connection for pressure relief device

Catégorie: Tuyaux & isolations
Réf.: 10417

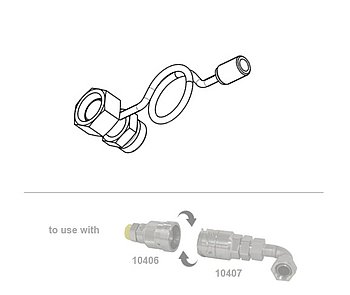

M30x1,5 female to M30x1,5 male adapter for connection of a pressure relief device with a Rp 1/4 connection, thermally decoupled (as optional accessory for quick disconnect adapters #10406, #10407)



This adapter enables the connection of a pressure relief device in the return line of the application. Its use is strongly recommended for the temperature control of pressure-sensitive apparatus (e.g. glass reactor) in conjunction with our quick-release fittings (#10406, #10407). By connecting a pressure relief device on the operator side using the adapter, you protect your glass apparatus from the risk of damage due to bursting.



The adapter is equipped with M30x1.5 connection threads on both sides. The connection for an operator-side safety device is thermally decoupled and designed with an Rp thread.
