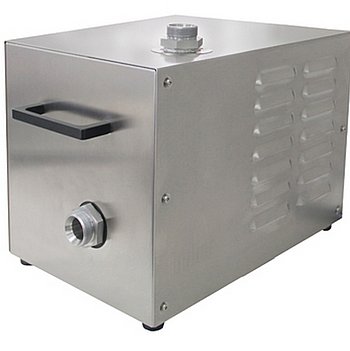

Unipump V MC M38x1,5

Unipump V MC M38x1,5

Catégorie: Technique des pompes
Réf. : 1087.0001.00

Closed magnetic-coupled circulation pump made of stainless steel. Designed to compensate for pressure loss in external systems the Unipump is made of stainless steel. The Unipump is connected in series with the pump of the Unistat, Unichiller or Compatible Control circulator and can be controlled via the voltfree contact of the Com.G@te (Option).



Unipump V MC M38x1,5

Temperature range: -120 ... 350 °C

Pressure pump max. 120 l/min / 4 bar

Pump connection: M38x1,5 male

Power supply: 380V- 480V 3~ 50/60Hz

Dimensions: 275x420x295 mm
