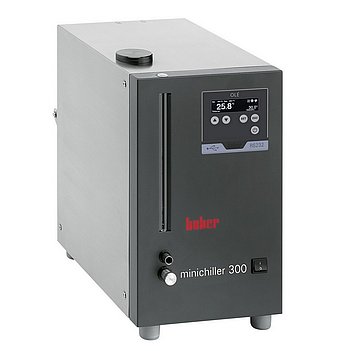

Minichiller 300 OLÉ

Minichiller 300 OLÉ

Compact chillers

Model: Minichiller 300 OLÉ Group: 2 Order No.: 3006.0089.98 E-class: 32-09-01-18
Request now

Performance Characteristics

The compact Minichillers are an economic and environmentally friendly cooling solution for many laboratory applications. A calculation of water and waste water costs shows that a Minichiller can save up to 48,000 litres of water in a working week and due to its low procurement price, return on investment is achieved within a very short time. The units have small footprints, only requiring 225 x 360 mm on the laboratory bench and are therefore suitable for cooling reactor blocks, vacuum pumps, rotary evaporators or heat exchangers. Minichillers allow stable application conditions due to constant values for temperature, pressure and throughflow quantities. They are also perfect for continuous operation at ambient temperatures up to 40°C. Despite the economic purchase price the coolers are well equipped and have a large temperature indicator, fill level indicator, as well as status LEDs for the pump, cooling and heating. A 1 kW heater is optionally available with which the temperature range can be extended to +100°C. Minichillers are available as both air and water cooled models and use natural refrigerants.

Functions overview

  • Environmentally-friendly, economic cooling solution
  • High efficiency
  • Precise temperature control
  • Simple operation with menu navigation
  • Robust stainless construction
  • Reliable continuously operation with warning functions
  • Easy to fill and empty
  • Illuminated filling level indicator
  • Bright, large OLED display
  • USB and RS232 interfaces

Product impressions


The new OLÉ controller combines state-of-the-art technology with simple operation. OLÉ models are suitable for routine tasks in research and industry and are convincing as practice oriented basic equipment. Option: Pt100 sensor connection #10519 to display (not control) e.g. of the process temperature (only available factory fitted, additional charge).

Read more

Temperature range -20...40 °C
Temperature stability ±0,5 K
Temperature display OLED Display
Display resolution 0,1 K
Alarm message optic, acoustic
Controller OLÉ
Safety class I / NFL
Protection class IP20
Dimensions (W x D x H) 225 x 360 x 380 mm
Weight, net 23 kg

Cooling capacity
15 0,3
0 0,2
-10 0,14
-20 0,07



Refrigeration machine air-cooled, natural refrigerant
Refrigerant 1st stage R-290 (A3, H220)
Refrigerant quantity 1st stage 0,041 kg

Delivery capacity pressure pump max. 14 l/min; 0,25 bar
Delivery capacity suction pump max. 10,5 l/min; 0,17 bar
Pump connection M16x1 AG male
Pump speed adjustable no
Pump type Pressure- and suction pump
Pump characteristics Pressure and suction pump, speed not variable

Interface digital USB (Device), RS232 Interface

Permissible ambient temperature 5...40 °C
Sound pressure level 53 dB(A)
Filling volume min. 1,4 l
Expansion volume 2,6 l
Power supply 220-240V 1~/2~ 50/60Hz
Current consumption max. 2,8 A

Please take further technical information as well as information about the scope of delivery, accessories and peripheral devices from the PDF data sheet. In cases of doubt the details given in there apply. If nothing to the contrary is quoted then the performance data referred is at an ambient temperature of 20°C.

Please observe the notes on installation and/or the space requirements of our products.

The following voltage and frequency tolerances apply based on EN60034-1:
Voltage +/- 5% for a frequency tolerance at the same time of +/- 2%

Examples to illustrate this: Not permissible, for example. is -5% on the voltage and +2% on the frequency. Permissible, on the other hand, are tolerances of -5% on the voltage and -2% on the frequency.

We reserve the right to make technical changes and correct errors. Illustrations can deviate from the original.


PT100 Sensor connection for OLÉ

Ball valve M16x1

Drain valve, universal

Hose, pressureless, FKM-200-NW12

Hose, pressureless, PVC-60-NW12

Hose, pressureless, PVC-60-NW8

Hose, pressureless, NBR NW12

Hose, pressureless, NBR NW8

Hose, pressureless, S-180-NW12

Hose, pressureless, S-180-NW8

Hose, pressureless, FKM NW8

Insulated sleeving / f. tube NW12

Insulated sleeving

Drain hose, pressureless, T-180-NW8

Drain hose, pressureless, T-180-NW12

Hose MT-200-1-M16x1

Hose MT-200-1,5-M16x1

Hose MT-200-2-M16x1

Hose MT-200-3-M16x1

Hose MT-350-3-M16x1

Hose MT-350-1-M16x1

Hose MT-350-1,5-M16x1

Hose MT-350-2-M16x1

Insulated sleeving internal-Ø 42mm

Insulated sleeving/price per m D:15

Heat transfer fluid M10.120.08

Heat transfer fluid M10.120.08

Heat transfer fluid M90.055/170.02

Heat transfer fluid M90.055/170.02

Heat transfer fluid M80.100/250.03

Heat transfer fluid M80.100/250.03

Heat transfer fluid P20.225/275.50

Heat transfer fluid P20.225/275.50

Heat transfer fluid M20.195/235.20

Heat transfer fluid M20.235.20

Heat transfer fluid M40.165/220.10

Heat transfer fluid M40.165/220.10

Heat transfer fluid M60.115/200.05

Heat transfer fluid M60.115/200.05

Heat transfer fluid M80.055.03

Heat transfer fluid M80.055.03

Heat transfer fluid MEG

Heat transfer fluid MEG

Adapter M16x1 f- M24x1,5 m

Adapter M16x1 f- R 1/2 f

Adapter M16x1 f - M16x1 f

Adapter M16x1 f - R1/2 m

Adapter M16x1 f - G3/4 f

Adapter M16x1 f - M30x1,5 m

Welding end M16x1

90° Adaptor M16x1 female - M16x1 male

Hose connector M16x1, NW 8

Hose connector M16x1, NW 12

Securing nut M16x1

Blank plug for M16x1

Factory calibration certificate – temperature stability to DIN 12876

Testing protocol FAT (Final Acceptance Test

Factory calibration certificate – absolute accuracy
