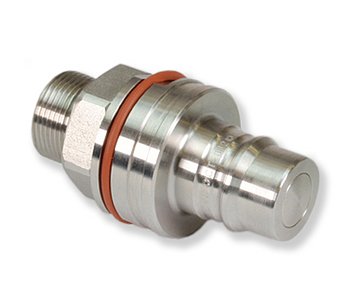

Quick-disconnect adaptor M24x1,5

Location: temperature control unit, application

Temperature range: -75°C...230°C

Disconnect temperature: 20°C

Connection: M24x1,5

Material: 1.4307 or better

Max. pressure at 20°C: 25 bar

Internal diameter: 12 mm

Temperature control units are usually connected to the application (e.g. reactor) using insulated temperature control hoses. If the applications on the temperature control unit need to be changed frequently, we recommend our quick-release couplings. The quick couplings meet the special requirements of temperature control technology and reliably prevent temperature control fluid from escaping. The quick couplings cause only low pressure losses and thus ensure good performance of the overall system.

If pressure-sensitive equipment is to be used for temperature control, we recommend the use of a pressure relief device on the operator side in the return line on the application side. This protects your glass apparatus from the risk of damage due to bursting.

Note: When using ethanol as heat transfer fluid: min. working temperature limit -60°C.
