Flow rate measuring device flange DN15

Flow rate measuring device flange DN15

Categoria: Tecnologia da bomba
N.º enc. : 10465

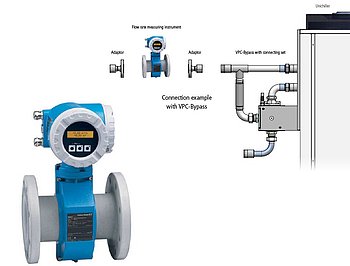

Flow rate measuring device to build into the temperature control fluid circuit for measurement and control of Heat Transfer Fluids flow rate. The flow rate can be displayed directly on the Pilot ONE and also be transmitted via the digital interfaces (USB, RS232, LAN and optional RS485, Profibus). It is also possible to control the flow rate, therefore a temperature control unit with an integrated VPC-Bypass or an external VPC-Bypass as an accessory is required.



The flow rate measurement allows essential functions such as finding the Kinetics/Dynamics of reaction synthesis and crystallisation, heat flow investigation and scale-up in process technology. Further information available on request.



Flow rate measuring device MID, only suitable for conductive heat transfer fluids:

- Temperature range: -40...130°C

- Flow rate: 0,2...100 l/min

- Measurement accuracy: 8...0,6 %
