FCC Flow Control Cube MID

FCC Flow Control Cube MID

Categoria: Tecnologia da bomba
N.º enc. : 3601.0006.00

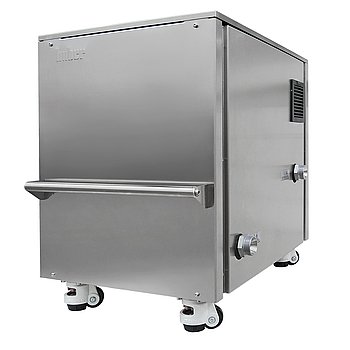

The Flow Control Cube is used to measure and control the flow and pressure of the thermal fluid. It can be used with Huber temperature control units with Pilot ONE technology.

The flow measurement is carried out with magnetically-inductive flow meters (MID) for electrically conductive liquids (e.g. water-glycol mixtures).



Temperature range: -40 ... 130 °C

Min. volume flow: 0,2 l/min

Max. volume flow: 80 l/min

Fluid connection: M38x1,5 male

Power supply: 90-240V 1~/2~ 50/60Hz
