性能特点
结构紧凑的Minichillers系列为实验室提供经济环保型的制冷解决方案。通过水和废水成本计算，Minichiller可以每工作周节省48000升水。投资少，见效快。占地面积小，仅225 x 360 mm，可放置在实验台上使用，适用于反应堆冷却、蒸气防护栅、真空泵、旋转蒸发议以及换热器等。提供持续稳定的温度，压力和流量，可在周围环境温度最高到40°C下连续工作。经济型制冷器带有大尺寸温度显示器，填充液位指示器以及LED显示泵，制冷和加热信息。可选配1 kW 加热器，温度范围扩展到+100°C。 Minichillers 系列有风冷型和水冷型两种; 所有型号都采用天然制冷剂。
功能一目了然
- 环保经济的散热解决方案
- 5.7 寸触摸屏显示，带有简洁的导航菜单
- 精确的温度控制
- 坚固的不锈钢结构
- 可靠的连续运行且配备报警功能
- 灌装及清空简易方便
- 照明液位指示器
- 高效率
- 菜单导航操作简单
- USB及RS232接口

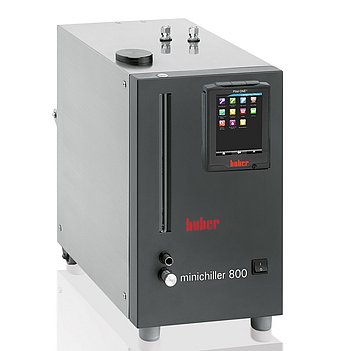

产品图片
控制器
新型多点触摸控制器Pilot ONE带有5.7寸触摸屏，图形用户界面和导航菜单。所有重要的运行参数和温度值都整齐地显示在触摸屏上。新的收藏夹菜单，一键式操作和技术术语使用户操作非常方便，就像使用智能手机一样。集成USB和以太网端口，可与计算机和网络连接，例如：用于远程控制和数据传输。
了解更多
| 加热功率 | 1,6 - 2,1 kW | ||||||||||
| 制冷功率 |
|
||||||||||
| 制冷形式 | 水冷，天然制冷剂 | ||||||||||
| 制冷剂第一级 | R-290 (A3, H220) |
| 最大输送泵压 | 24 l/min; 0,7 bar |
| 吸入泵的最大输送能力。 | 18 l/min; 0,4 bar |
| 泵接口 | M16x1 AG male |
| 泵速可调 | 是 |
| 泵的类型 | 压力泵和吸入泵 |
| 泵特性 | Pressure and suction pump, speed not variable |
| 外部传感器接口 | Pt100 |
| 数字接口 | Ethernet, USB (Host u. Device), RS232 |
| 可允许环境温度 | 5...40 °C |
| 最小填充体积 | 2,8 l |
| 膨胀槽容量 | 2,2 l |
| 冷却水连接 | G1/2 外螺纹 |
| 冷却水压差最小。 | 3 bar |
| 冷却水的最大压力。 | 6 bar |
| 电源 | 208-240V 1~/2~ 50/60Hz |
配件
Temperature sensor PT100, closed, Ø 8 mm, 400 mm
Temperature sensor PT100, closed, Ø 6 mm, 200 mm
Temperature sensor PT100, closed, Ø 6 mm, 180 mm
Temperature sensor PT100, open, Ø 8 mm, 170 mm
Ball valve M16x1
Drain valve, universal
Control panel extension cable for Pilot ONE
Mini-USB cable for Pilot ONE
Extension cable for temperature sensor
Wall bracket Pilot ONE
Table stand Pilot ONE
Hose, pressureless, FKM-200-NW12
Hose, pressureless, PVC-60-NW12
Hose, pressureless, PVC-60-NW8
Hose, pressureless, NBR NW12
Hose, pressureless, NBR NW8
Hose, pressureless, S-180-NW12
Hose, pressureless, S-180-NW8
Hose, pressureless, FKM NW8
Insulated sleeving / f. tube NW12
Insulated sleeving
Drain hose, pressureless, T-180-NW8
Drain hose, pressureless, T-180-NW12
Hose MT-350-1-M16x1
Hose MT-350-1,5-M16x1
Hose MT-350-2-M16x1
Hose MT-350-3-M16x1
Hose MT-200-1-M16x1
Hose MT-200-1,5-M16x1
Hose MT-200-2-M16x1
Hose MT-200-3-M16x1
Insulated sleeving/price per m D:15
Insulated sleeving internal-Ø 42mm
Hose for cooling water PZ-90-1-1/2"
Hose for cooling water PZ-90-1,5-1/2"
Hose for cooling water PZ-90-2-1/2"
Heat transfer fluid P20.225/275.50
Heat transfer fluid P20.225/275.50
Heat transfer fluid M20.195/235.20
Heat transfer fluid M20.235.20
Heat transfer fluid M40.165/220.10
Heat transfer fluid M40.165/220.10
Heat transfer fluid M60.115/200.05
Heat transfer fluid M60.115/200.05
Heat transfer fluid M80.055.03
Heat transfer fluid MEG
Heat transfer fluid MEG
Heat transfer fluid M90.055/170.02
Heat transfer fluid M80.100/250.03
Heat transfer fluid M80.100/250.03
Heat transfer fluid M10.120.08
Heat transfer fluid M10.120.08
Adapter M16x1 f- R 1/2 f
Adapter M16x1 f - M16x1 f
Adapter M16x1 f - R1/2 m
Adapter M16x1 f - G3/4 f
Adapter M16x1 f - M30x1,5 m
Welding end M16x1
Adapter M16x1 f- M24x1,5 m
90° Adaptor M16x1 female - M16x1 male
Hose connector M16x1, NW 8
Hose connector M16x1, NW 12
Securing nut M16x1
Blank plug for M16x1
Factory calibration certificate – temperature stability to DIN 12876
Factory calibration certificate – absolute accuracy
Testing protocol FAT (Final Acceptance Test
POKO/ECS interface for units with Pilot ONE
Profibus Gateway DP-V1 (external, for Pilot ONE)
Touchpen for Pilot ONE
E-grade OPC-UA
E-grade "Exclusive"
E-grade "Professional"
